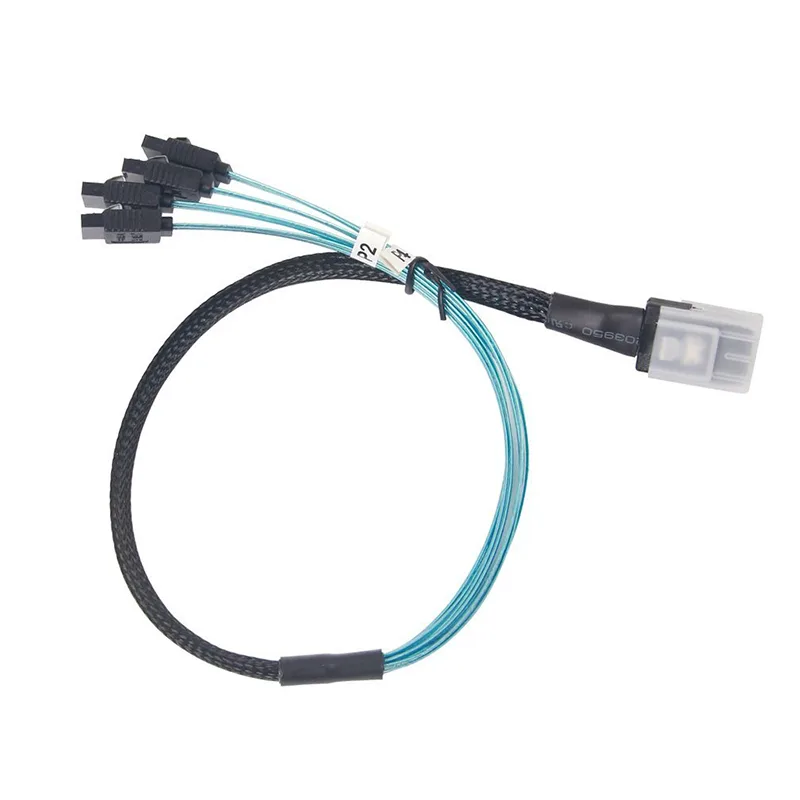

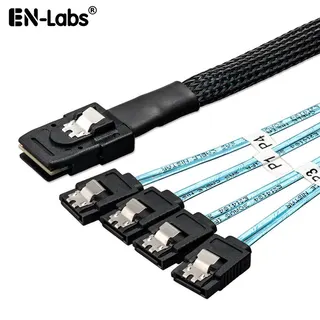

Black and blue Mini SAS SFF-8087 male plug splitting to four SATA female connectors, 50cm length

EN-Labs

EN-Labs SFF80874SATA50CM Mini SAS to 4 SATA cable 50cm

SKU CH-E7HN-WT216

Connects a Mini SAS 36-pin controller to four SATA drives at up to 6Gbps per drive over a 50cm cable with labelled connectors

  • TypeInternal Mini SAS
  • ColorBlack / Blue
  • Length1.64ft / 50CM
  • Connector Number5
  • SpecificationsSide 1: Mini SAS 36Pin (SFF-8087) Male with Latch Side 2:4x
  • FeaturesInternal Mini SAS SFF-8087 is a high-speed data storage inte
  • Connects RAID controller to four SATA drives via SFF-8087 breakout
  • Supports 6Gbps per SATA drive for high-throughput storage
  • 50cm length with woven mesh sheath eases internal cable routing

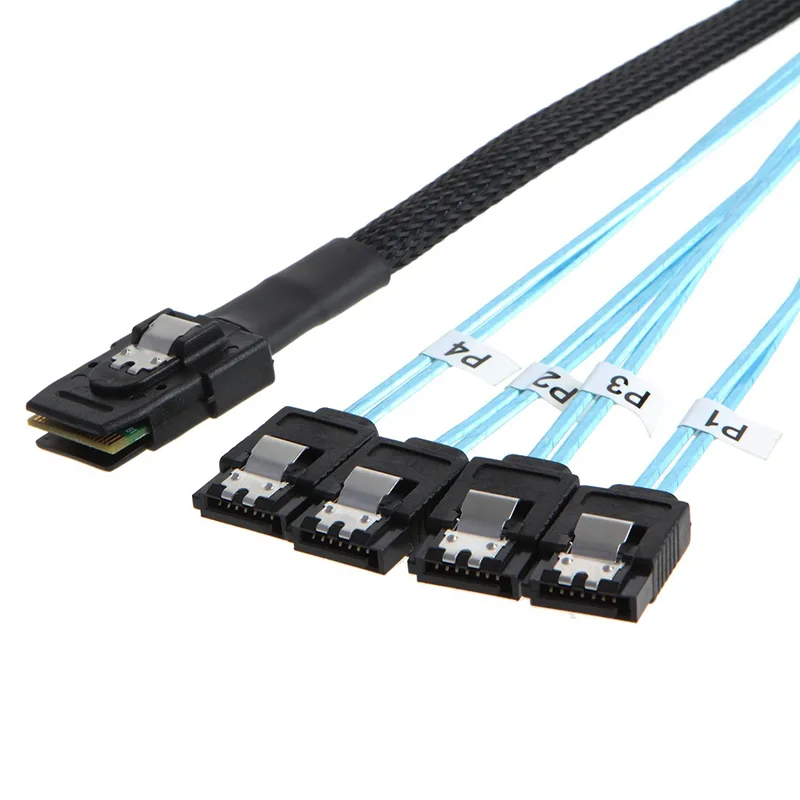

  • P1–P4 markers simplify drive identification after installation
  • Compatible with HBA cards including 9650SE, 5805, H700, H310, 2720SGL, 620

Cable purpose and fit

The EN-Labs SFF80874SATA50CM is an internal Mini SAS SFF-8087 to four SATA breakout cable built for servers and workstations that need to connect a RAID or PCIe controller to multiple SATA drives. The 50cm length suits compact chassis where the controller sits close to the backplane.

Who this suits and who it does not

It suits builders wiring a single SFF-8087 controller port to four SATA targets such as hard drives or a SATA backplane. It does not suit configurations that need more than four drive connections from one port, nor systems that require a different Mini SAS connector type.

The spec that decides fit

The cable carries a 36-pin SFF-8087 male plug with latch on one end and four SATA 7-pin female latching connectors on the other, supporting up to 6Gbps per drive across the 1.64ft run.

Highlights

  • Connects RAID controller to four SATA drives via SFF-8087 breakout
  • Supports 6Gbps per SATA drive for high-throughput storage
  • 50cm length with woven mesh sheath eases internal cable routing
  • P1–P4 markers simplify drive identification after installation
  • Compatible with HBA cards including 9650SE, 5805, H700, H310, 2720SGL, 620

Specifications

BrandEN-Lab
ModelSFF80874SATA50CM
TypeInternal Mini SAS
ColorBlack / Blue
Length1.64ft / 50CM
Connector Number5
SpecificationsSide 1: Mini SAS 36Pin (SFF-8087) Male with Latch Side 2:4x SATA 7Pin female with latch Cable Length:1.64ft / 0.5M Cable Color: Black+Blue
FeaturesInternal Mini SAS SFF-8087 is a high-speed data storage interface designed for high-throughput and fast data access. Connects a RAID or PCIe controller with an SFF-8087 port to 4 discrete SATA drives; Mini SAS to SATA adapter provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector Connect up to 4 SATA drives to span RAID controller arrays and share performance across two PCIe 2.0 x8 lanes with compatible host bus adapters; Supports up to 6Gbs data transfer rate per drive Wove

Questions about this item

Does my RAID or PCIe controller need an SFF-8087 port for this cable to work?

Yes, the cable connects a controller with an SFF-8087 port to four SATA drives.

Will this cable support 6 Gbps per drive on an older SATA II controller?

The cable supports up to 6 Gbps per drive, but the controller and drives determine the actual speed.

How can I verify the cable is functioning after installation?

Check that all four drives are detected by the controller BIOS or operating system and show expected transfer rates.
