Black and blue internal Mini SAS cable with one SFF-8087 plug and four right-angle SATA connectors, 1m long

EN-Labs

EN-Labs SFF80874SATA1M90 Mini SAS to 4 SATA Cable 1m

SKU CH-50JH-86YR7

Internal Mini SAS SFF-8087 cable connects a RAID or PCIe controller to four right-angle SATA drives at 6Gb/s per drive

  • Typeinternal mini SAS
  • ColorBlack / Blue
  • Length3.3ft / 1m
  • Connector Number5
  • Connector Detail1 x SFF-8087 to 4 X SATA (Right Angle 90 degree)
  • Speed6Gb/s
  • Connects a RAID or PCIe controller with SFF-8087 port to four SATA drives
  • Supports up to 6Gbps data transfer rate per SATA drive
  • Right-angle SATA connectors allow tidy routing in tight chassis spaces
  • Woven mesh sheath covers half the cable for easier cable management

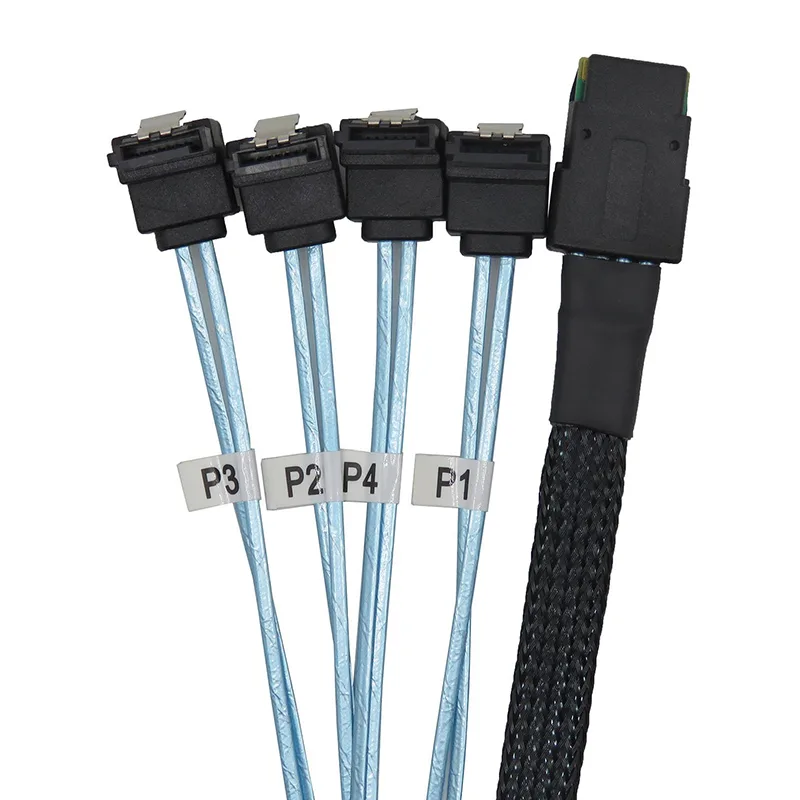

  • P1–P4 markers give quick port identification after installation

Internal SAS breakout cable

The EN-Labs SFF80874SATA1M90 links a Mini SAS SFF-8087 host port to four right-angle SATA targets. It suits builders wiring RAID or PCIe controllers to multiple hard drives inside a server or workstation chassis. The 3.3 ft length reaches typical backplane distances without excess slack. Each connector carries a latch for secure seating.

Thermals and power

Passive copper construction adds no active heat or noise to the system. The woven mesh sheath covers half the run, protecting conductors while allowing tight bends for clean routing. Power draw is limited to the controller and drives themselves; the cable introduces no additional load.

Accessory impact

P1–P4 markers on the SATA ends simplify drive identification after installation. Right-angle SATA plugs reduce strain in crowded drive bays. Compatibility spans common HBA and RAID cards such as the Adaptec 5405, Dell PERC H310, HighPoint RocketRAID 2720SGL and similar SFF-8087-equipped controllers.

Highlights

  • Connects a RAID or PCIe controller with SFF-8087 port to four SATA drives
  • Supports up to 6Gbps data transfer rate per SATA drive
  • Right-angle SATA connectors allow tidy routing in tight chassis spaces
  • Woven mesh sheath covers half the cable for easier cable management
  • P1–P4 markers give quick port identification after installation

Specifications

BrandEN-Lab
ModelSFF80874SATA1M90
Typeinternal mini SAS
ColorBlack / Blue
Length3.3ft / 1m
Connector Number5
Connector Detail1 x SFF-8087 to 4 X SATA (Right Angle 90 degree)
Speed6Gb/s

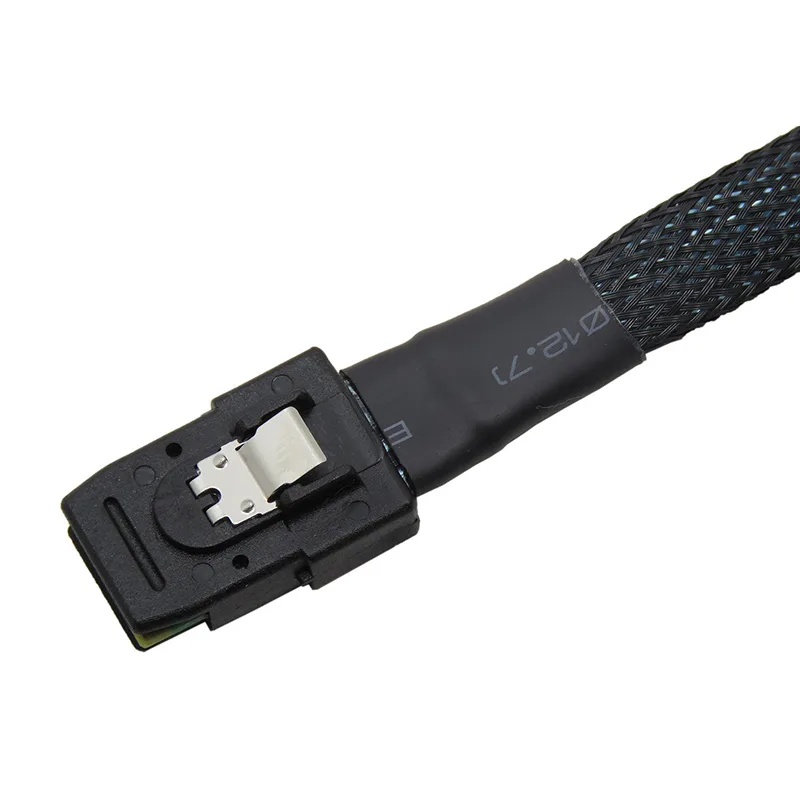

SpecificationsSide 1: Mini SAS 36Pin (SFF-8087) Male with Latch Side 2:4 x Right Angle SATA 7Pin female with latch Cable Length:3.3ft / 1M Cable Color: Black+Blue
FeaturesInternal Mini SAS SFF-8087 is a high-speed data storage interface designed for high-throughput and fast data access. Connects a RAID or PCIe controller with an SFF-8087 port to 4 discrete SATA drives; Mini SAS to SATA adapter provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector Connect up to 4 SATA drives to span RAID controller arrays and share performance across two PCIe 2.0 x8 lanes with compatible host bus adapters; Supports up to 6Gbs data transfer rate per drive Wove

Questions about this item

How do I install the SFF-8087 to 4 SATA cable and which step do people often get wrong?

Connect the SFF-8087 male latch connector to the RAID controller port, then attach each right-angle SATA female latch connector to a drive; the step often missed is aligning the right-angle orientation so the latch engages fully without cable strain.

What maintenance or replacement will the Mini SAS to 4 SATA cable need over time?

The woven mesh sheath protects the first half of the 1 m length; inspect latch tabs on the SFF-8087 and four SATA connectors periodically and replace the cable if any latch fails to hold or if the sheath shows abrasion.

What limit appears first when the cable runs at sustained 6 Gb/s per drive?

The 1 m length and shared PCIe 2.0 x8 host bandwidth set the practical ceiling; signal integrity over the Mini SAS 36-pin interface and aggregate controller throughput become the limiting factors before individual drive speed.
