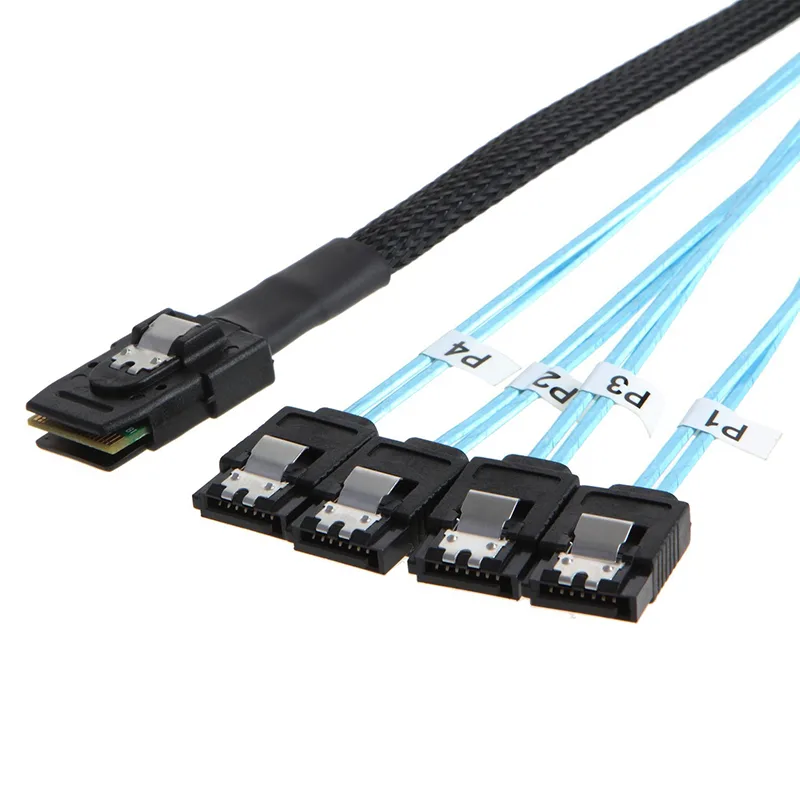

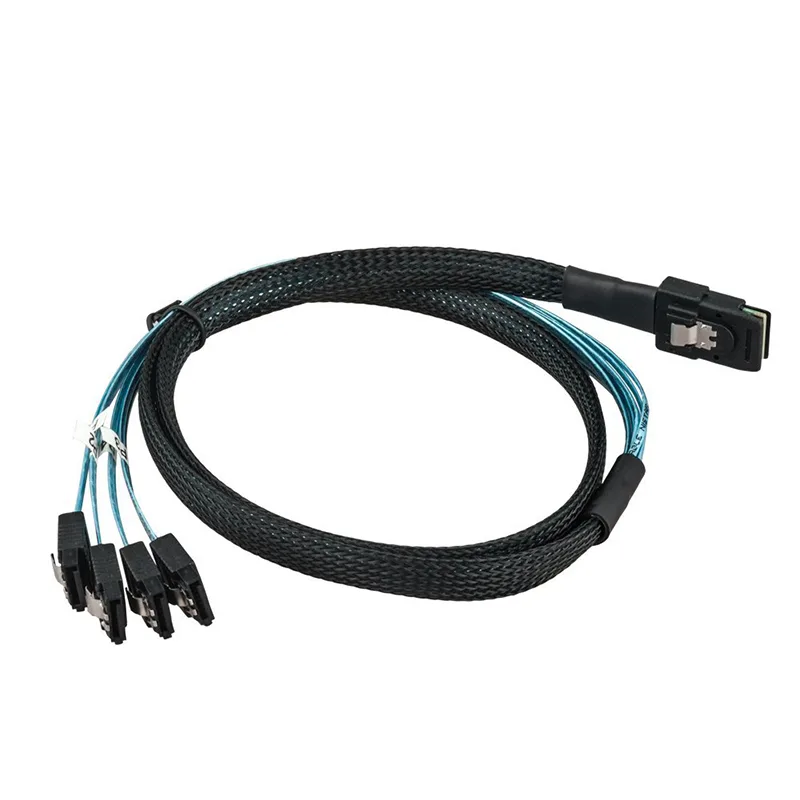

Black and blue Mini SAS SFF-8087 male plug splitting to four SATA female connectors, woven mesh sheath on half the cable

EN-Labs

EN-Labs SFF80874SATA1M Mini SAS SFF-8087 to 4 SATA Cable 3.3ft

SKU CH-ZNQC-HNY40

Connects a RAID or PCIe controller with an SFF-8087 port to four SATA drives at up to 6Gbps per drive over a 3.3ft cable

  • ColorBlack / Blue
  • Length3.3ft / 1m
  • Connector Number5
  • SpecificationsSide 1: Mini SAS 36Pin (SFF-8087) Male with Latch Side 2:4x
  • FeaturesInternal Mini SAS SFF-8087 is a high-speed data storage inte
  • Connects a RAID or PCIe controller to four SATA drives via a single SFF-8087 port
  • Supports up to 6Gbps data transfer rate per SATA drive for high-throughput storage
  • 3ft length with woven mesh sheath on half the cable for easier internal routing
  • P1 to P4 markers on each SATA connector simplify drive identification after installation
  • Compatible with popular HBA cards including Dell PERC H310, H700, Adaptec 5805, 5405, HighPoint RocketRAID 2720SGL, 620 and 3Ware 9650SE

SFF-8087 to four SATA breakout

This 3.3ft internal cable connects a RAID or PCIe controller with an SFF-8087 port to four discrete SATA drives. It is built for administrators and builders who need to attach multiple SATA targets to a single Mini SAS host interface. The forward breakout design supports up to 6Gbps per drive for high-throughput storage arrays.

Build integration and routing

The cable plugs directly into a compatible HBA or RAID card with an SFF-8087 connector and fans out to four SATA 7-pin female ports with latches. P1 to P4 markers simplify drive identification after installation. A woven mesh sheath covers half the length to aid routing inside dense chassis.

Thermals, noise and power

As a passive copper assembly, the cable draws no power and adds no audible noise to the system. It carries only signalling current from the controller to the drives, so it does not affect case thermals or require additional cooling. The latch connectors maintain secure contact under normal vibration.

Highlights

  • Connects a RAID or PCIe controller to four SATA drives via a single SFF-8087 port
  • Supports up to 6Gbps data transfer rate per SATA drive for high-throughput storage
  • 3ft length with woven mesh sheath on half the cable for easier internal routing
  • P1 to P4 markers on each SATA connector simplify drive identification after installation
  • Compatible with popular HBA cards including Dell PERC H310, H700, Adaptec 5805, 5405, HighPoint RocketRAID 2720SGL, 620 and 3Ware 9650SE

Specifications

BrandEN-Lab
ModelSFF80874SATA1M
ColorBlack / Blue
Length3.3ft / 1m
Connector Number5
SpecificationsSide 1: Mini SAS 36Pin (SFF-8087) Male with Latch Side 2:4x SATA 7Pin female with latch Cable Length:3.3ft / 1M Cable Color: Black+Blue
FeaturesInternal Mini SAS SFF-8087 is a high-speed data storage interface designed for high-throughput and fast data access. Connects a RAID or PCIe controller with an SFF-8087 port to 4 discrete SATA drives; Mini SAS to SATA adapter provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector Connect up to 4 SATA drives to span RAID controller arrays and share performance across two PCIe 2.0 x8 lanes with compatible host bus adapters; Supports up to 6Gbs data transfer rate per drive Wove

Questions about this item

What is the maximum data rate each SATA drive can sustain on this cable?

Each SATA drive is supported up to 6Gbps on this Mini SAS SFF-8087 to 4 SATA breakout cable.

How much heat or noise does the cable add during continuous operation?

The passive cable adds no heat or noise; only the connected drives and controller generate thermal load and sound.

Which controller port must the system already have for this cable to work?

The host side requires a Mini SAS SFF-8087 male port on a RAID or PCIe controller card.
