EN-Labs

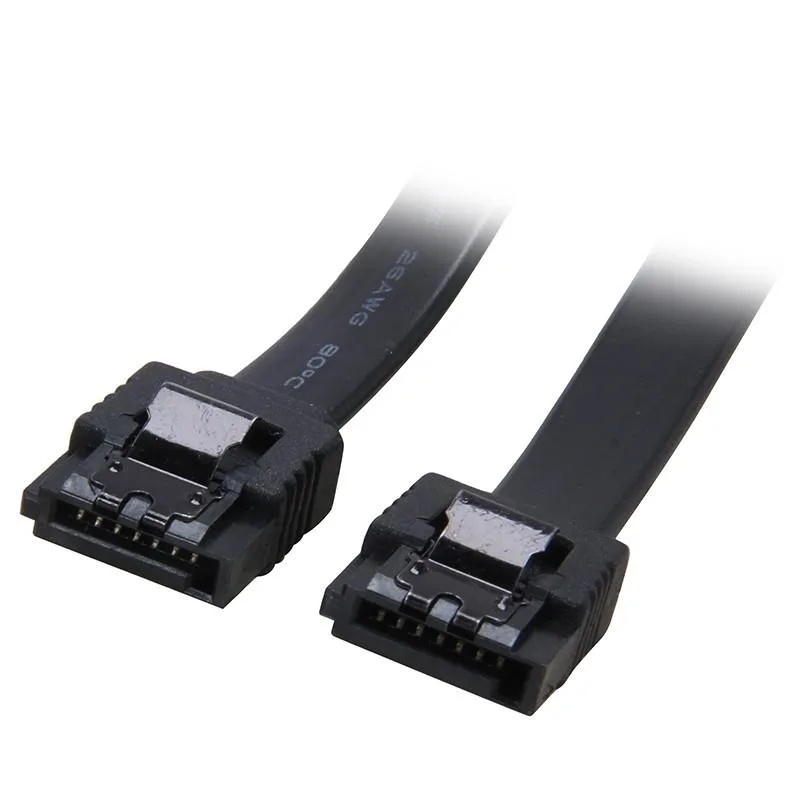

EN-Labs SATA24BK SATA III cable 24 inch latching
24-inch SATA III data cable with locking latch supports 6.0 Gbps and fits 26 AWG tinned copper conductors
- TypeSATA III
- Length21" - 25"
- Cable Length24"
- Connector Number2
- Connector Detail1 x SATA to 1 x SATA
- Terminal GenderFemale to Female
- Secure latch keeps the cable seated during moves
- 24-inch length fits most internal drive bays
- 0 Gbps SATA III bandwidth for fast transfers
- 26 AWG tinned copper conductors reduce signal loss
- UL listed and RoHS compliant for safety
Product identity
The EN-Labs SATA24BK is a 24-inch SATA III data cable with latching connectors. It links hard drives or solid-state drives to motherboards and host controllers inside a desktop or server chassis. The locking latch keeps each plug seated in tight spaces where vibration or cable routing might otherwise loosen the connection.
Deciding specification
The cable uses 7-pin SATA 180-degree latching receptacles rated for SATA revision III up to 6.0 Gbps. It is backwards compatible with SATA I and II ports, so the same lead works across multiple drive generations. Shielded 26 AWG tinned copper conductors and UL-listed, RoHS-compliant construction complete the core specification.
Capacity and headroom
At 6.0 Gbps the link handles current mechanical hard drives and mainstream SATA SSDs without bottleneck. Actual throughput is limited by the attached drive and controller rather than the cable itself. The 24-inch length suits typical mid-tower layouts but may fall short in full-tower or external enclosure builds where longer runs are required.
Highlights
- Secure latch keeps the cable seated during moves
- 24-inch length fits most internal drive bays
- 0 Gbps SATA III bandwidth for fast transfers
- 26 AWG tinned copper conductors reduce signal loss
- UL listed and RoHS compliant for safety
Specifications
| Brand | En-Labs |
|---|---|
| Model | SATA24BK |
| Type | SATA III |
| Length | 21" - 25" |
| Cable Length | 24" |
| Connector Number | 2 |
| Connector Detail | 1 x SATA to 1 x SATA |
| Terminal Gender | Female to Female |
| Specifications | - Connector : 7-pin SATA 180 Degree latching Receptacle "L" Type key connector - Supports SATA revision III up to 6 Gbps - Backwards compatible with SATA I, II ports - Cable length is 24 inches, - 26AWG tinned copper conductors - UL listed and RoHS compliant |
| Shielding | Yes |
| Conductor | Copper Conductor |
| Features | The SATA 180 Degree to 180 Degree SATA III 6 Gbps Cable connects both newer SATA III and legacy SATA I, II drives to internal motherboards and host controllers. The straight connector has a latch to provide a secure connection in tight spaces. IT technicians always need a spare on hand as a troubleshooting tool. DIY gamers can quickly upgrade their computer for expanded storage. It is backed by a lifetime warranty and product support. |
| Style | Straight |
Questions about this item
What does the 6.0 Gbps rating mean once the cable is installed?
The cable supports SATA revision III up to 6 Gbps, but actual throughput is limited by the drive and controller you connect.
Which interface standard does the cable use and what does it cap in practice?
It uses the SATA III interface with 7-pin 180-degree latching connectors, capped at 6 Gbps by the specification.
What does the cable need to fit or mount inside a case?
Two 7-pin SATA ports spaced for a 24-inch straight run; the latching receptacles lock onto standard drive and motherboard headers.
