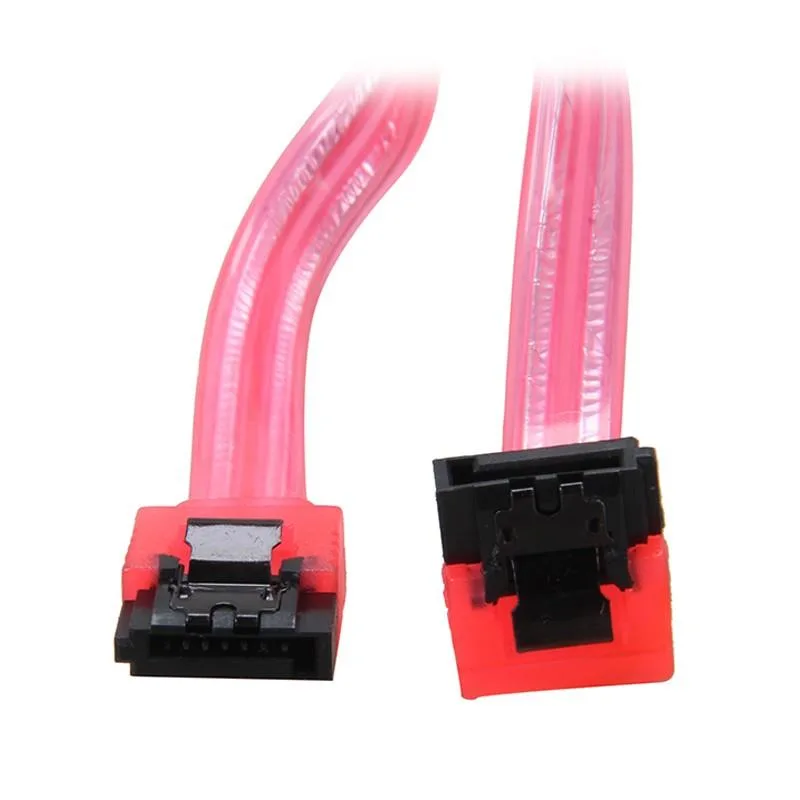

UV-red SATA cable with 90-degree and straight latched connectors, 6 inches long

EN-Labs

EN-Labs SATA cable 90° to 180° latch 6" UV Red

SKU CH-429P-QFRYS

A 6-inch SATA III cable with a 90-degree to 180-degree latch design for secure drive connections in tight spaces

  • TypeSATA III
  • Length6" - 10"
  • Connector Number2
  • Connector Detail1 x SATA to 1 x SATA
  • Terminal GenderFemale to Female
  • Specifications- Connector : 7-pin SATA 90 degree to 180 Degree latching Re
  • Latching 90° connector secures drives in tight cases
  • 180° straight end fits standard motherboard ports cleanly
  • 6 Gbps SATA III throughput matches modern SSD speeds
  • 26 AWG tinned copper conductors resist signal loss
  • UL listed and RoHS compliant for safe builds

Cable geometry and data rate

This 6-inch SATA III cable carries one 90-degree connector and one straight 180-degree connector, each with a 7-pin latching receptacle. It supports the SATA 6 Gbps revision and remains compatible with earlier SATA I and II ports. Shielded 26 AWG tinned copper conductors handle the signal.

Builders with tight routing versus open layouts

The mixed-angle design helps route the cable behind drive cages or along motherboard edges where a straight plug would collide with other components. Builders who prefer a single straight run or need a longer reach for full-tower cases should consider a different length or angle combination.

Signal integrity under continuous transfer

The UL-listed, RoHS-compliant shielding and tinned copper conductors maintain the rated 6 Gbps link during sustained reads and writes without the signal degradation sometimes seen on unshielded ribbon cables. The locking latch prevents accidental disconnection when vibration or thermal expansion shifts the drive slightly.

Highlights

  • Latching 90° connector secures drives in tight cases
  • 180° straight end fits standard motherboard ports cleanly
  • 6 Gbps SATA III throughput matches modern SSD speeds
  • 26 AWG tinned copper conductors resist signal loss
  • UL listed and RoHS compliant for safe builds

Specifications

TypeSATA III
Length6" - 10"
Connector Number2
Connector Detail1 x SATA to 1 x SATA
Terminal GenderFemale to Female
Specifications- Connector : 7-pin SATA 90 degree to 180 Degree latching Receptacle "L" Type key connector
- Supports SATA revision III up to 6 Gbps
- Backwards compatible with SATA I, II ports
- Cable length is 6 inches,
- 26AWG tinned copper conductors
- UL listed and RoHS compliant
ShieldingYes
ConductorCopper Conductor
FeaturesThe SATA 90 Degree to 180 Degree SATA III 6 Gbps Cable connects both newer SATA III and legacy SATA I, II drives to internal motherboards and host controllers.
The straight connector has a latch to provide a secure connection in tight spaces.
IT technicians always need a spare on hand as a troubleshooting tool.
DIY gamers can quickly upgrade their computer for expanded storage.
It is backed by a lifetime warranty and product support.
Cable Length6"
Style1 Angle

Questions about this item

What must my motherboard provide for this 7-pin SATA cable to work?

Your motherboard needs a free 7-pin SATA data port; the cable plugs straight in with no extra power or adapter required.

Will the 90-degree to 180-degree latch cable work with my older SATA I and II drives?

Yes, the cable is backwards compatible with SATA I and II ports while still supporting up to 6.0 Gbps on SATA III devices.

How can I confirm the 26AWG copper cable is running at the expected 6.0 Gbps link speed?

Check the negotiated link rate in your BIOS or OS storage utility; it should report 6 Gbps when both drive and controller are SATA III.
