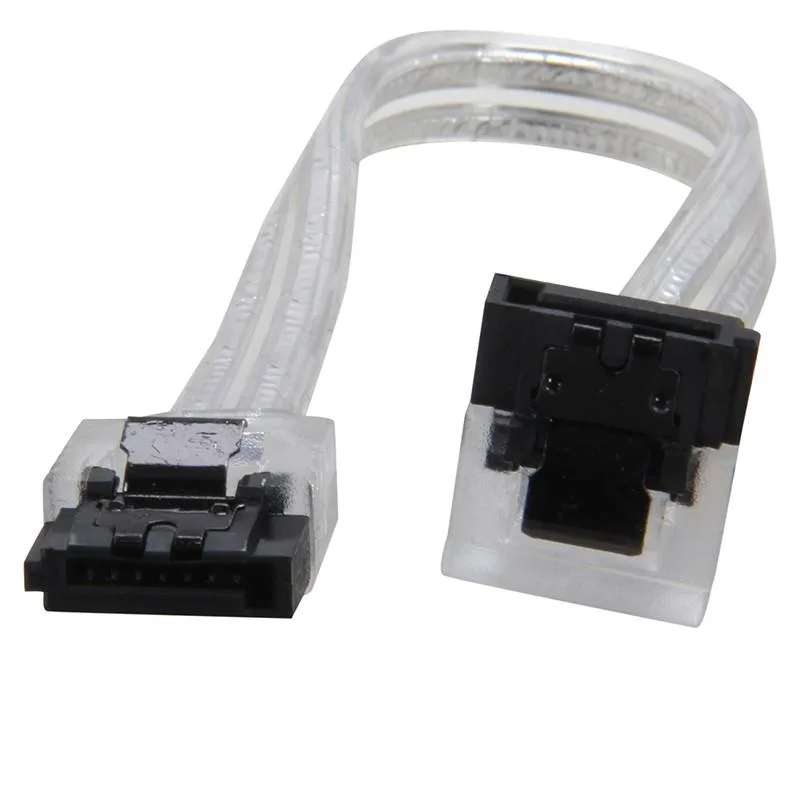

Short silver SATA cable with a right-angled latch connector and a straight latch connector

EN-Labs

EN-Labs SATA cable 6" 90° to 180° locking silver

SKU CH-X2C6-HZFNR

Six-inch SATA III data cable with a 90-degree to 180-degree angled latch for secure connections in tight spaces

  • TypeSATA III
  • Length6" - 10"
  • Connector Number2
  • Connector Detail1 x SATA to 1 x SATA
  • Terminal GenderFemale to Female
  • Specifications- Connector : 7-pin SATA 90 degree to 180 Degree latching Re
  • Locking latch keeps the cable firmly seated in tight cases
  • 90° to 180° routing avoids sharp bends behind drives
  • 0 Gbps bandwidth handles SATA III SSD speeds
  • 26 AWG tinned copper conductors resist signal loss
  • UL listed and RoHS compliant for safe builds

6-inch SATA III locking cable

The EN-Labs SATA cable measures six inches and carries a 90-degree plug on one end and a straight 180-degree plug on the other. Both connectors are 7-pin SATA receptacles with a locking latch for a firm seat. It is built with 26AWG tinned copper conductors and shielded for signal integrity.

Replaces loose or short SATA leads

Use this cable when an existing data lead is too long, unsecured, or lacks a locking tab. The right-angle connector fits tight drive bays or crowded motherboard headers where a straight plug would foul adjacent components. The jump is worth it whenever cable routing or vibration makes a standard lead unreliable.

Handles SATA III 6.0 Gbps links

The cable supports the full 6.0 Gbps throughput of SATA III and remains backward compatible with SATA I and II ports. Actual transfer speed is limited by the drive and controller attached. It is not suited for external eSATA runs or for bridging longer distances inside full-tower chassis.

Highlights

  • Locking latch keeps the cable firmly seated in tight cases
  • 90° to 180° routing avoids sharp bends behind drives
  • 0 Gbps bandwidth handles SATA III SSD speeds
  • 26 AWG tinned copper conductors resist signal loss
  • UL listed and RoHS compliant for safe builds

Specifications

TypeSATA III
Length6" - 10"
Connector Number2
Connector Detail1 x SATA to 1 x SATA
Terminal GenderFemale to Female
Specifications- Connector : 7-pin SATA 90 degree to 180 Degree latching Receptacle "L" Type key connector
- Supports SATA revision III up to 6 Gbps
- Backwards compatible with SATA I, II ports
- Cable length is 6 inches,
- 26AWG tinned copper conductors
- UL listed and RoHS compliant
ShieldingYes
ConductorCopper Conductor
FeaturesThe SATA 90 Degree to 180 Degree SATA III 6 Gbps Cable connects both newer SATA III and legacy SATA I, II drives to internal motherboards and host controllers.
The straight connector has a latch to provide a secure connection in tight spaces.
IT technicians always need a spare on hand as a troubleshooting tool.
DIY gamers can quickly upgrade their computer for expanded storage.
It is backed by a lifetime warranty and product support.
Cable Length6"
Style1 Angle

Questions about this item

How much clearance does the 90-degree connector need behind the drive?

The 90-degree plug extends sideways from the drive port, so allow roughly the connector height plus cable bend radius behind the device.

Which end should I latch first when routing the 6-inch cable in a tight case?

Attach the straight 180-degree end with its latch to the motherboard first, then connect the 90-degree end to the drive.

When should I replace this 26AWG SATA III cable?

Replace it if the latch no longer clicks, the conductors show kinks, or you experience intermittent 6.0 Gbps link errors.
