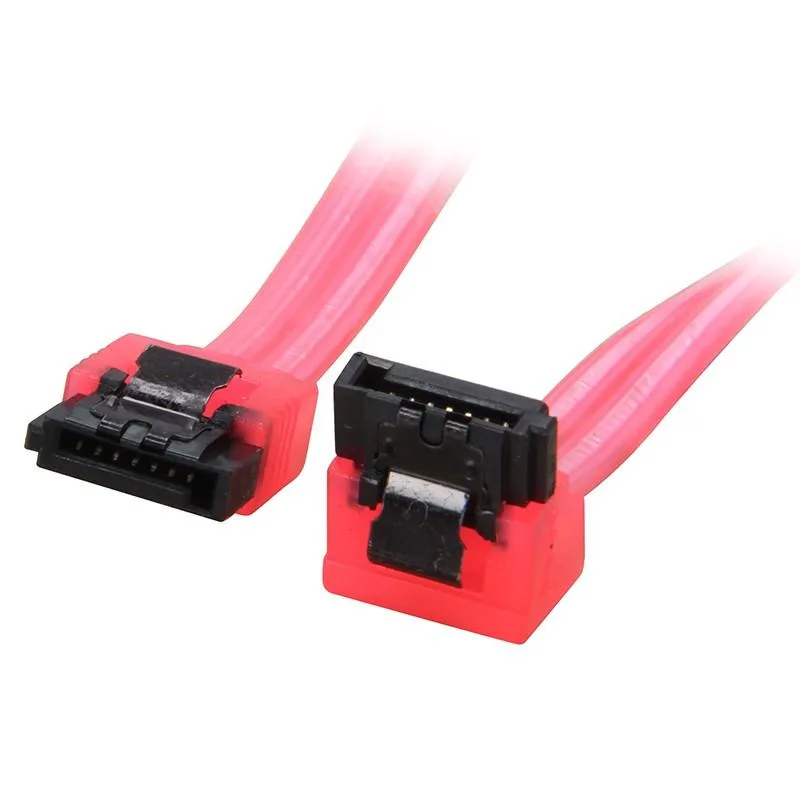

Red 10 inch SATA cable with 90 degree and straight locking connectors

EN-Labs

EN-Labs SATA cable 10 inch 90° to 180° locking UV Red

SKU CH-9BYP-2D656

A 10-inch SATA cable with a 90-degree latch connector to a straight 180-degree plug, supporting 6.0 Gbps data transfer over shielded 26 AWG copper conductors

  • TypeSATA III
  • Length6" - 10"
  • Connector Number2
  • Connector Detail1 x SATA to 1 x SATA
  • Terminal GenderFemale to Female
  • Specifications- Connector : 7-pin SATA 90 degree to 180 Degree latching Re
  • Secure latch prevents accidental disconnection
  • 90° to 180° angled connectors fit tight drive bays
  • 10-inch length reduces cable clutter inside case
  • 26AWG tinned copper conductors support 6.0 Gbps SATA III speeds
  • UL listed and RoHS compliant for safety and environmental standards

What it is and who uses it

The EN-Labs SATA III cable carries data between a 2.5-inch drive and a motherboard or host controller at up to 6.0 Gbps. One end bends 90 degrees and the other sits straight at 180 degrees, each fitted with a locking latch. The 10-inch length suits compact builds where a standard straight cable would foul other components. IT technicians keep spares for quick drive swaps and DIY builders use it when adding a second SSD or HDD.

Check before ordering

Verify that both the drive and the host port use the standard 7-pin SATA interface. The 90-degree connector needs enough clearance beside the drive to seat fully, while the straight end must reach the motherboard port without tension. The cable is rated for SATA I, II and III speeds, so the actual throughput will match the slowest device in the chain. No power lines are included; a separate SATA power lead is required.

Behaviour under sustained load

Shielded 26AWG tinned copper conductors maintain signal integrity during long sequential transfers such as disk imaging or large batch copies. The locking latches resist vibration that can unseat loose plugs in densely packed cases. UL listing and RoHS compliance confirm the materials meet recognised safety and environmental standards for continuous operation inside a running system.

Highlights

  • Secure latch prevents accidental disconnection
  • 90° to 180° angled connectors fit tight drive bays
  • 10-inch length reduces cable clutter inside case
  • 26AWG tinned copper conductors support 6.0 Gbps SATA III speeds
  • UL listed and RoHS compliant for safety and environmental standards

Specifications

TypeSATA III
Length6" - 10"
Connector Number2
Connector Detail1 x SATA to 1 x SATA
Terminal GenderFemale to Female
Specifications- Connector : 7-pin SATA 90 degree to 180 Degree latching Receptacle "L" Type key connector
- Supports SATA revision III up to 6 Gbps
- Backwards compatible with SATA I, II ports
- Cable length is 10 inches,
- 26AWG tinned copper conductors
- UL listed and RoHS compliant
ShieldingYes
ConductorCopper Conductor
FeaturesThe SATA 90 Degree to 180 Degree SATA III 6 Gbps Cable connects both newer SATA III and legacy SATA I, II drives to internal motherboards and host controllers.
The straight connector has a latch to provide a secure connection in tight spaces.
IT technicians always need a spare on hand as a troubleshooting tool.
DIY gamers can quickly upgrade their computer for expanded storage.
It is backed by a lifetime warranty and product support.
Style1 Angle

Questions about this item

Does the package include only the 10-inch SATA cable or are mounting screws also supplied?

The box contains one 10-inch SATA III data cable with a 90-degree connector on one end and a straight 180-degree connector on the other; no screws or additional hardware are included.

Should I choose a straight-to-straight cable instead of this 90-degree-to-180-degree version for my build?

Pick the 90-degree-to-180-degree cable when the drive sits close to the motherboard edge and a right-angle plug clears the case panel, while the latched straight end secures to the board.

Will the 6.0 Gbps rating actually deliver that speed with my SATA III SSD?

The cable supports SATA III up to 6.0 Gbps, but real-world throughput is limited by the drive and controller; the 26AWG tinned copper conductors and shielding maintain signal integrity at the rated speed.
