EN-Labs
EN-Labs PRRJ45SPL1X2 RJ45 Splitter Adapter Pair
A pair of RJ45 splitters that divides one Ethernet cable into two 100 megabyte connections for simultaneous device access
- FeaturesThis product is mainly used to solve the connection problem
- Connects two devices over one existing cable
- 100 Mbps per device via physical pin split
- Uses pins 1236 and 4578 separately
- Requires a matched pair of adapters
- Works with standard 4-pair twisted cable
Two-Device Ethernet Splitter Pair

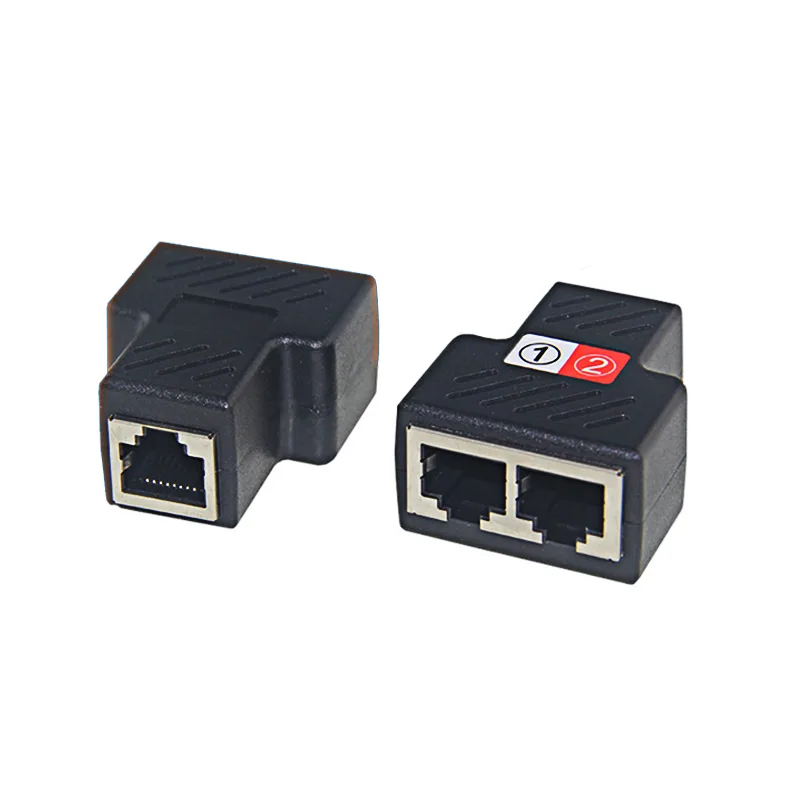

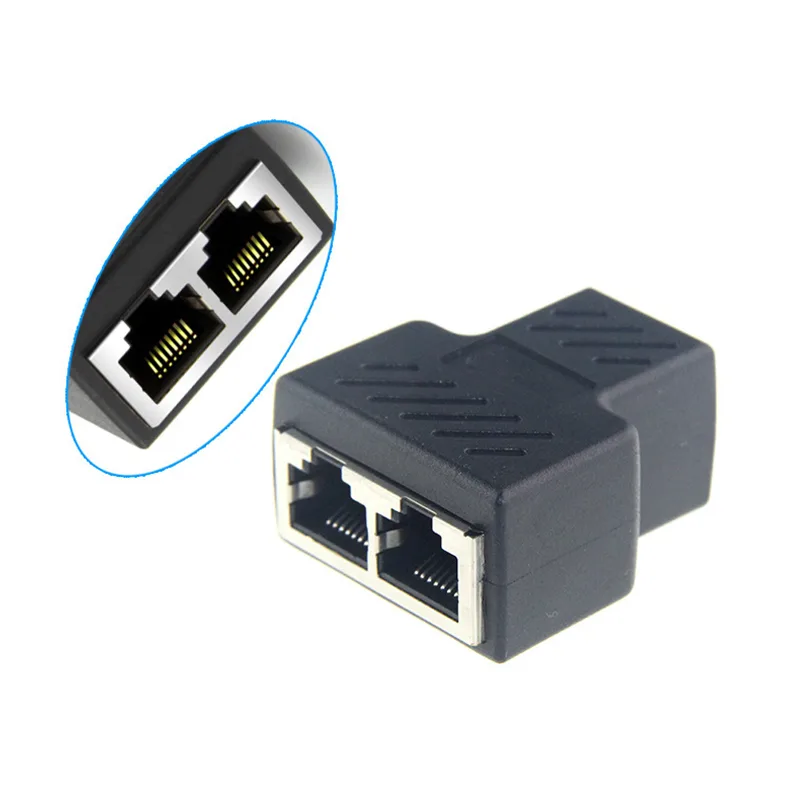

This EN-Labs PRRJ45SPL1X2 kit contains two RJ45 female-to-dual-female couplers that let two devices share a single four-pair twisted cable. Each adapter splits the eight conductors into two groups using pins 1236 and 4578 so both connections run at 100 megabytes per second without IP assignment or signal interference. The pair must be used together at opposite ends of the same cable run.
Tool-Free Passive Installation
No drivers, power or configuration are required; simply plug the couplers into the wall socket and the switch or router at each end. The only common mistake is crossing the labelled ports — port 1 on adapter A must connect to port 1 on adapter B and port 2 to port 2, otherwise neither link will establish. Because the split is purely physical, there is no negotiation or status LED to confirm correct wiring.
Verify Cable And Port Availability
Before ordering, confirm the in-wall cable is a full eight-conductor four-pair twisted type; cables terminated with only four pins (1236) cannot carry the second group. You also need two free RJ45 ports on the switch or router side to accept the first adapter, plus two device ports at the far end. This adapter does not replace a router or switch and cannot expand a single port into two on its own.
Highlights
- Connects two devices over one existing cable
- 100 Mbps per device via physical pin split
- Uses pins 1236 and 4578 separately
- Requires a matched pair of adapters
- Works with standard 4-pair twisted cable
Specifications
| Brand | EN-Labs |
|---|---|
| Model | PRRJ45SPL1X2 |
| Features | This product is mainly used to solve the connection problem caused by insufficient wiring, and it can make two devices surf the Internet at the same time by means of the physical tapping method. The adapter divide original embedded Ethernet cables (8pins) into two groups (1236/4578). Two groups respectively transmit data with purely physical connection which don't have the function of the assign IP addresses. This adapter is not the same as a network router or network switch without the function of the assign IP addresses. The speed of each cable groups (1 and 2) can only reach 100 m |
Questions about this item
How do I verify the EN-Labs PRRJ45SPL1X2 splitter pair is working correctly after connecting both adapters?
Plug each adapter into the wall socket and the switch respectively, then connect two devices to the paired ports 1 and 2; both should establish 100 Mbps links simultaneously without interference.
What comes in the box with the PRRJ45SPL1X2 and what must I supply separately?
The package contains one pair — two RJ45 female 1-to-2 couplers labelled A and B; you must provide a 4-pair twisted Ethernet cable and two patch leads to complete the run.
Which version of the EN-Labs RJ45 splitter should I choose for a single wall cable serving two PCs?
The PRRJ45SPL1X2 is the only model listed; it splits the 8 pins into groups 1236 and 4578 so two computers can share one installed cable at 100 Mbps each.
