Silver aluminium heatsink kit with 33 pieces in three sizes on a light background

EN-Labs

EN-Labs 33pcs Aluminium Heatsink Kit 8.8 14 20mm

SKU CH-HYGC-YZ9P2

A 33-piece aluminium heatsink kit for fan-less GPU and chipset cooling, with 15 small, 10 medium and 8 large finned blocks

  • ColorSilver
  • CompatibilityVGA Chipsets
  • MaterialAluminium
  • FeaturesAluminum heatsink are generally used in the heat treatment a
  • Dimensions15 pieces - 8.8mmx8.8mmx5mm Heatsink 10 pieces - 14mmx14mmx6
  • 33-piece aluminium kit covers multiple GPU components
  • 15 small 8.8 mm squares fit tight VRM clusters
  • 10 medium 14 mm squares handle larger chipsets
  • 8 rectangular 20 mm blocks suit memory modules
  • Fan-less design gives silent passive cooling

33-piece aluminium heatsink kit

This kit supplies thirty-three aluminium heatsinks in three sizes for passive cooling of graphics-card components. Fifteen pieces measure 8.8 mm square, ten pieces measure 14 mm square and eight pieces measure 20 mm by 14 mm. All units are 5 mm or 6 mm tall and finished in silver. The assortment targets builders who want to add fan-less thermal mass to memory chips, voltage regulators or other small ICs on a GPU.

Replaces stock pads or missing sinks

The kit upgrades graphics cards that ship with only thermal pads on VRAM or VRM areas, or boards where original heatsinks were removed during a previous modification. The jump is worthwhile when the target components run hot enough to throttle but have no active airflow directed at them. It is not suited for builds that need a single large cooler for the GPU core itself.

Fits tight PCB layouts

Individual sinks adhere with thermal adhesive (not supplied) and require only the flat surface area listed in the dimensions. The small footprints leave room for neighbouring components and do not block adjacent PCIe slots. The variety of sizes lets you match each sink to the exact chip outline, freeing you from cutting or filing a larger universal plate.

Highlights

  • 33-piece aluminium kit covers multiple GPU components
  • 15 small 8.8 mm squares fit tight VRM clusters
  • 10 medium 14 mm squares handle larger chipsets
  • 8 rectangular 20 mm blocks suit memory modules
  • Fan-less design gives silent passive cooling

Specifications

ColorSilver
CompatibilityVGA Chipsets
MaterialAluminium
FeaturesAluminum heatsink are generally used in the heat treatment and the fins increase the area of the board and thus provide for greater heat transfer.
GPU graphics card Cooling Heatsink Kit is a fan-less cooling solution to any GPU, graphics card, video card. And,Widely use for computer PC chipset, power IC, power electric device, LED light devices, etc.
Use heatsink adhesive glue to install heatsink .(Glue is not included)
Please check the specification table and make sure that the size of the heatsink fits that of your component.
Specification
Product Name :GPU Video Card Heatsink;
Mat

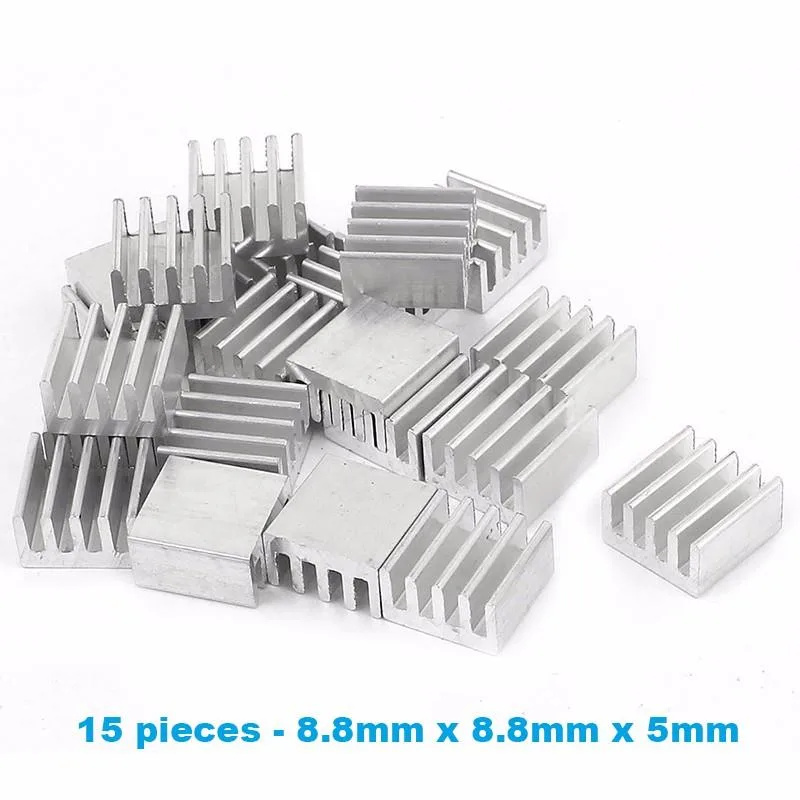

Dimensions15 pieces - 8.8mmx8.8mmx5mm Heatsink
10 pieces - 14mmx14mmx6mm Heatsink

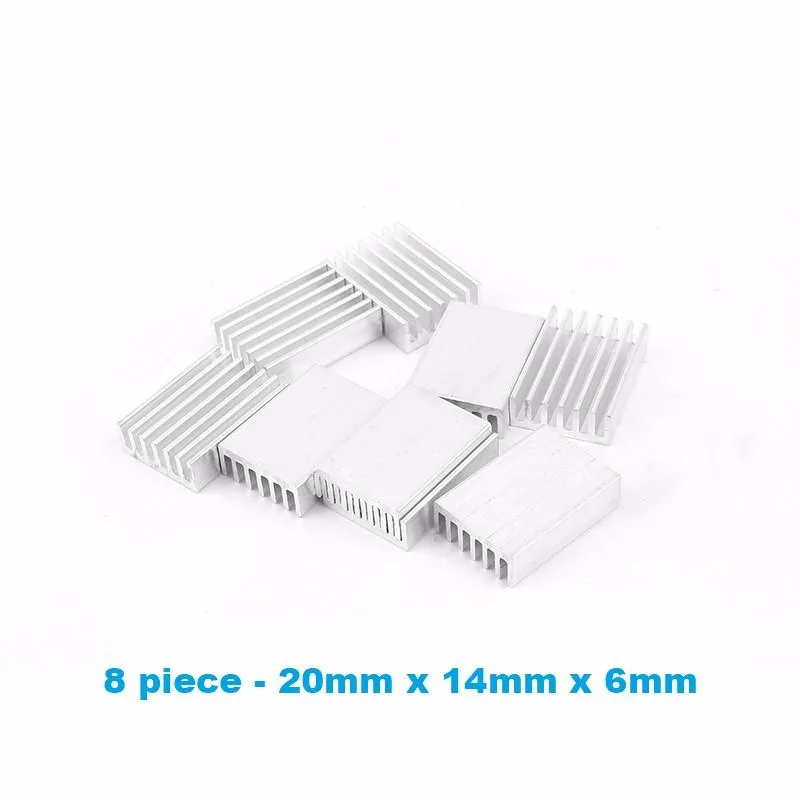

8 pieces - 20mmx14mmx6mm Heatsink

Questions about this item

What component heights do the 8.8 mm, 14 mm and 20 mm heatsinks add above the chip?

The kit includes 15 pieces at 5 mm tall, 10 pieces at 6 mm tall and 8 pieces at 6 mm tall, so the added height is either 5 mm or 6 mm depending on which size you use.

Which adhesive should I use and how do I avoid the common mistake of poor contact?

Use a dedicated heatsink adhesive glue — not included — apply a thin, even layer, press firmly to spread it and let it cure fully before powering on; skipping the cure time is the step most people get wrong.

When should I replace the thermal adhesive on these aluminium heatsinks?

Replace the adhesive if you ever remove a heatsink, if temperatures rise unexpectedly after months of use, or if the bond feels loose when you press the finned surface.
