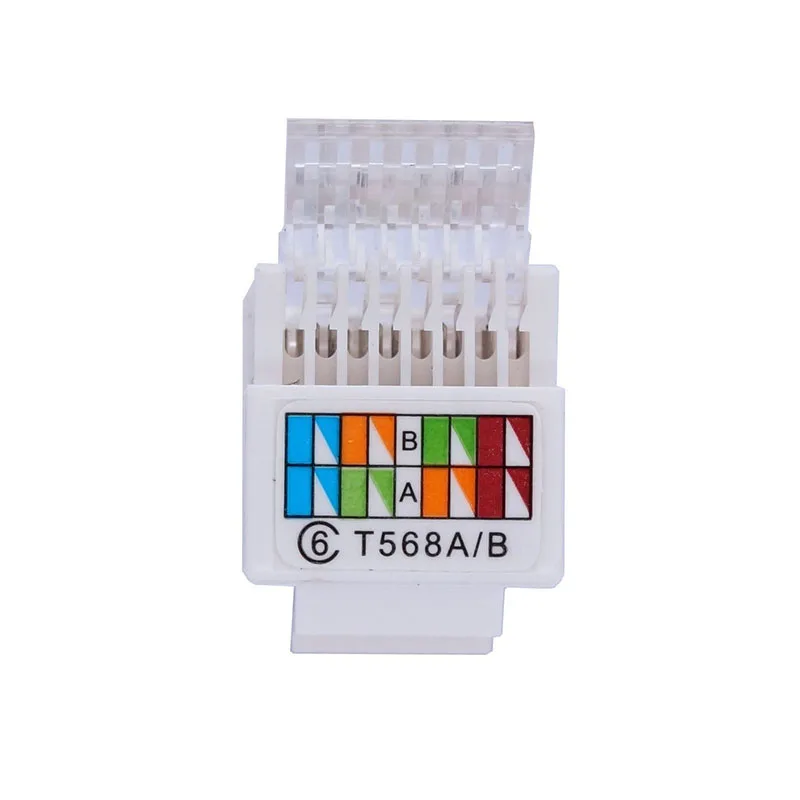

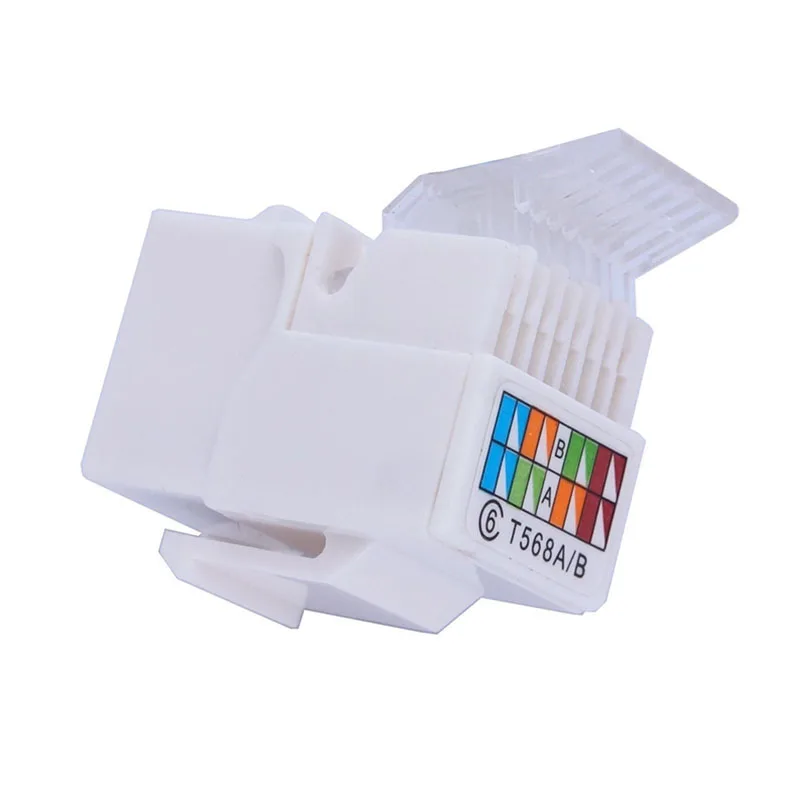

White rectangular keystone module with clear polycarbonate housing and gold contacts

EN-Labs

EN-Labs 11-001-412CAT6 Cat6 UTP Tool-less Keystone Module network connector

SKU CH-WP05-T7NQW

Tool-less Cat6 keystone jack accepts 22-26AWG solid wire, snaps into standard wall plates and patch panels, and includes integrated 568A/B colour-coded wiring diagrams for punch-down-free installation

  • FeaturesRJ-45 TOOL-LESS modular plug is 8-position 8-conductor (8P8C
  • OptionAdapter
  • Toolless IDC termination saves installation time
  • 568A/B colour-coded lid guides correct wiring
  • Gold-plated contacts resist corrosion for reliable links
  • Cat6 UTP rating supports high-speed data networks
  • Snap-in clip fits standard keystone wall-plates and panels

Cat6 UTP keystone module for tool-free termination

The EN-Labs 11-001-412CAT6 is a Category 6 unshielded keystone jack that accepts 22 to 26 AWG solid or stranded conductors. Its toolless IDC 110 termination lets installers seat wires by pressing the lid, removing the need for a punch-down tool. Gold-plated contacts and a PCB design aim to maintain signal integrity for gigabit Ethernet links.

Suited for installers who want fast.

This jack suits technicians and DIY users terminating Cat6 UTP cable into wall plates, surface-mount boxes or blank patch panels without carrying a crimper or punch-down tool. The integrated TIA-568A/B colour coding on the lid speeds up wiring. It is not for shielded cable runs, outdoor-rated installations or applications requiring a traditional 110 punch-down block.

Verify cable gauge and keystone footprint before

Confirm the installation cable uses 22 to 26 AWG conductors, as larger or smaller gauges will not seat reliably in the IDC slots. Ensure the mounting hardware — wall plate, surface box or patch panel — accepts standard keystone-footprint modules. The jack is backwards compatible with lower category components, so existing Cat5e cabling will function at its rated performance.

Highlights

  • Toolless IDC termination saves installation time
  • 568A/B colour-coded lid guides correct wiring
  • Gold-plated contacts resist corrosion for reliable links
  • Cat6 UTP rating supports high-speed data networks
  • Snap-in clip fits standard keystone wall-plates and panels

Specifications

BrandEN-Labs
Model11-001-412CAT6
FeaturesRJ-45 TOOL-LESS modular plug is 8-position 8-conductor (8P8C) and designed for computer networking. The unique toolless design does not require the use of a crimping tool. Simply insert the leads following the color coding, and press down the lid. 568A and 568B color wiring diagram is integrated on the lid for easy installation. The modular plugs are manufactured from high-impact clear poly-carbonate to withstand everyday wear and tear. You can except error-free data transfers. CAT6 rated connector provide excellent performance for data networks requiring maximum speed and bandwidth
OptionAdapter

Questions about this item

What cable gauge must I already have for the IDC 110 terminals to accept the conductors?

Solid or stranded conductors between 22 and 26 AWG fit the IDC 110 terminals on this module.

Will this Cat6 keystone work in a patch panel or wall plate that currently holds Cat5e jacks?

Yes, it is backwards compatible with all lower-rated category components and snaps into standard keystone openings.

How can I verify the wiring is correct after I close the lid?

The integrated TIA-568A/B color diagram on the lid lets you match each conductor to the proper pin before pressing the lid down.
