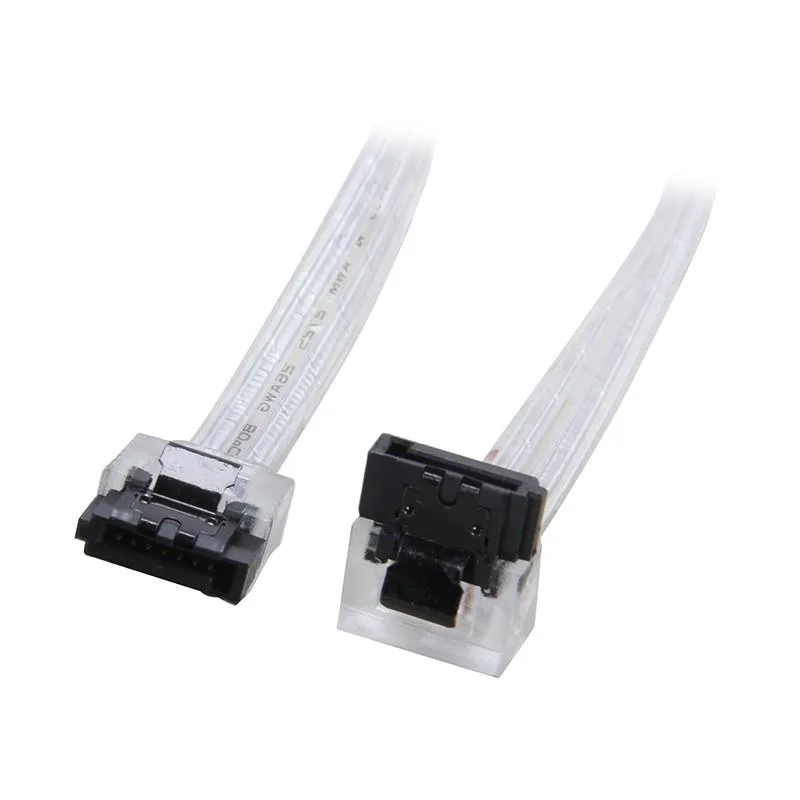

Silver 10-inch SATA III cable with 90-degree and 180-degree latched connectors

EN-Labs

EN-Labs 10 inch SATA III 90 to 180 degree latch cable

SKU CH-MX3W-3J5HP

A 10-inch SATA III data cable with a 90-to-180-degree angled latch connector for secure drive installation

  • TypeSATA III
  • Length6" - 10"
  • Connector Number2
  • Connector Detail1 x SATA to 1 x SATA
  • Terminal GenderFemale to Female
  • Specifications- Connector : 7-pin SATA 90 degree to 180 Degree latching Re
  • Latch secures drive connection in tight spaces
  • 90-to-180-degree angle eases routing in cramped cases
  • 10-inch length keeps internal cabling tidy
  • 26 AWG tinned copper conductors support 6.0 Gbps SATA III speeds
  • UL listed and RoHS compliant for safety and environmental standards

Tight-space SATA cable with latch

This 10 inch SATA III data cable links a 2.5 inch SSD or hard drive to a motherboard or host controller. One end bends 90 degrees and the other sits at 180 degrees, letting the cable hug the board edge in cramped chassis. A latch on the straight connector clicks into place so vibration cannot unseat the link. The cable is rated for 6.0 Gbps and works with older SATA I and II ports.

26 AWG tinned copper with shielding

Each conductor uses 26 AWG tinned copper wrapped in a foil shield to keep the 6 Gbps signal clean inside a busy case. The 7-pin receptacles follow the "L" type key so they only insert one way, preventing bent pins during blind installs. UL listing and RoHS compliance confirm the materials meet baseline safety and environmental standards. The silver jacket resists kinking when routed behind drive cages.

Replaces loose or straight-through cables

Builders who fight cable clutter behind a stacked drive bay gain a firm, angled path that stays seated when the case moves. Technicians carrying a spare can diagnose a flaky drive connection in seconds without hunting for a proprietary angled lead. The jump is worth it when a straight plug blocks a neighbouring port or when a non-latching cable has already popped loose once. Buyers who need longer reach or right-angle-to-right-angle geometry should look elsewhere.

Highlights

  • Latch secures drive connection in tight spaces
  • 90-to-180-degree angle eases routing in cramped cases
  • 10-inch length keeps internal cabling tidy
  • 26 AWG tinned copper conductors support 6.0 Gbps SATA III speeds
  • UL listed and RoHS compliant for safety and environmental standards

Specifications

TypeSATA III
Length6" - 10"
Connector Number2
Connector Detail1 x SATA to 1 x SATA
Terminal GenderFemale to Female
Specifications- Connector : 7-pin SATA 90 degree to 180 Degree latching Receptacle "L" Type key connector
- Supports SATA revision III up to 6 Gbps
- Backwards compatible with SATA I, II ports
- Cable length is 10 inches,
- 26AWG tinned copper conductors
- UL listed and RoHS compliant
ShieldingYes
ConductorCopper Conductor
FeaturesThe SATA 90 Degree to 180 Degree SATA III 6 Gbps Cable connects both newer SATA III and legacy SATA I, II drives to internal motherboards and host controllers.
The straight connector has a latch to provide a secure connection in tight spaces.
IT technicians always need a spare on hand as a troubleshooting tool.
DIY gamers can quickly upgrade their computer for expanded storage.
It is backed by a lifetime warranty and product support.
Style1 Angle

Questions about this item

What data rate does the SATA III interface on this cable cap at in practice?

The cable supports SATA revision III up to 6.0 Gbps, but actual throughput is limited by the connected drive and controller.

What clearance does the 90-degree to 180-degree connector layout need to fit inside a case?

One end angles 90 degrees and the other sits straight at 180 degrees, so the right-angle side needs only shallow side clearance while the straight end needs rear depth.

How is the latch released when removing the cable, and what step do people skip?

Press the latch tab on the straight connector before pulling; the common mistake is yanking the cable without releasing the latch, which can damage the port.
