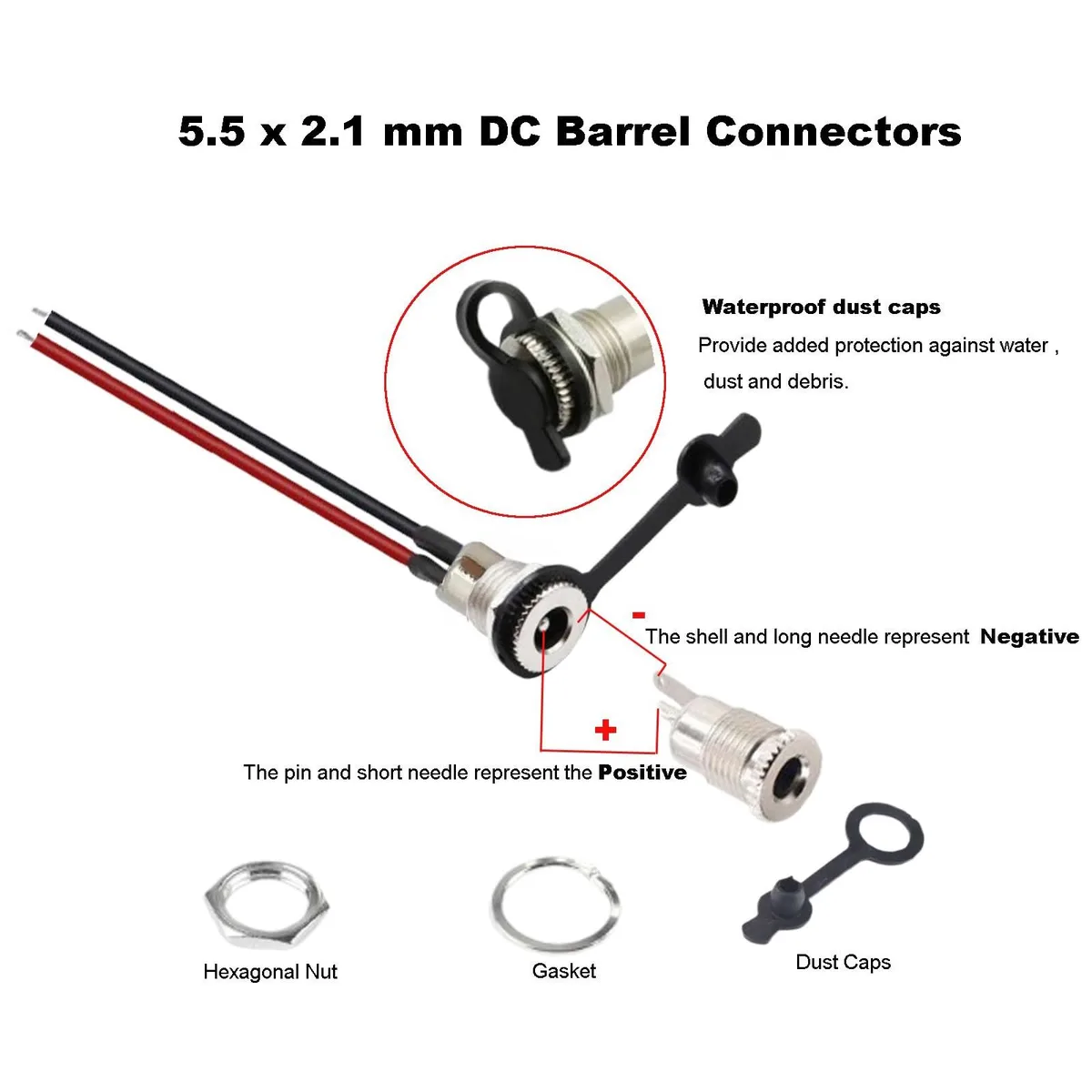

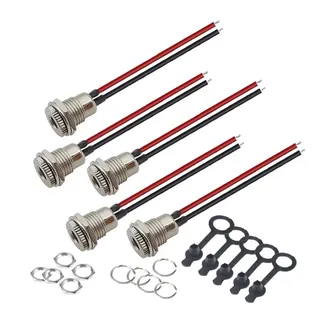

Five nickel-plated barrel sockets with red and black 20 cm pigtails, washers, nuts and dust caps

Eightnoo 5.5 x 2.1 mm DC Power Jack Socket 18AWG 20cm 5pcs internal power cable

SKU CH-DF4D-YDNZE

A pack of five threaded 5.5 mm × 2.1 mm DC panel-mount sockets with 20 cm 18 AWG pigtails, brass-tinned strands and dust caps

  • TypeExtension Cable
  • Length< 1"
  • Cable Length32.8 ft.
  • Specifications728370367362, 5.5mm x 2.1mm dc power, 0.059 kilograms, Eight
  • Terminal GenderMale to Female
  • Refresh Rate5.5mm x 2.1mm
  • Real 18 AWG wire with 41 strands per conductor handles higher current than typical 22 AWG pigtails
  • Zinc-alloy housing with nickel plating resists oxidation and maintains solid electrical contact over time
  • Threaded 11 mm panel-mount design plus dust caps protect connections from dust and debris
  • Red and black colour-coded leads simplify polarity identification during installation
  • 20 cm cable length suits compact enclosures and CCTV camera power runs

DC Power Jack Socket Kit

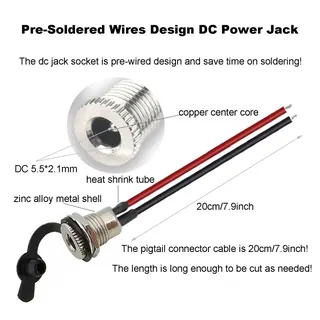

This pack contains five 5.5 x 2.1 mm threaded female panel-mount sockets with pre-attached 20 cm 18 AWG pigtails. Each cable uses 41 strands of 0.16 mm brass tin-plated copper per conductor, giving 82 strands total across the red and black leads. The zinc-alloy housings are nickel-plated for conductivity and oxidation resistance. Dust caps, washers and nuts are included for a complete panel installation.

DIY Installers and CCTV Integrators

The kit suits anyone adding low-voltage DC power to an enclosure, security camera or custom project where a secure threaded connection is required. Builders needing a different barrel size such as 2.5 mm, or those who require longer leads without splicing, should look at other options. The 11 mm mounting hole diameter must match the panel cut-out.

Check Panel Thickness and Polarity

Verify that your enclosure material allows an 11 mm clearance hole and that the panel thickness accommodates the supplied nut and washer stack. Confirm the power supply polarity matches the red-positive and black-negative colour coding before soldering or crimping. Ensure the 18 AWG gauge meets the current demand of the connected device.

Highlights

  • Real 18 AWG wire with 41 strands per conductor handles higher current than typical 22 AWG pigtails
  • Zinc-alloy housing with nickel plating resists oxidation and maintains solid electrical contact over time
  • Threaded 11 mm panel-mount design plus dust caps protect connections from dust and debris
  • Red and black colour-coded leads simplify polarity identification during installation
  • 20 cm cable length suits compact enclosures and CCTV camera power runs

Specifications

BrandApple
Model728370367362
TypeExtension Cable
Length< 1"
Cable Length32.8 ft.
Specifications728370367362, 5.5mm x 2.1mm dc power, 0.059 kilograms, Eightnoo, 3C-C013Fx5
Terminal GenderMale to Female
Refresh Rate5.5mm x 2.1mm
Features5.5mm x 2.1mm dc power, Eightnoo, 728370367362, 3C-C013Fx5

Questions about this item

What size panel cut-out do I need for the 11 mm threaded barrel on these sockets?

Drill an 11 mm hole; the threaded 5.5 x 2.1 mm barrel fits through and secures with the supplied nut and washer.

Will the 18 AWG pigtails handle the same current as the 22 AWG leads on my existing CCTV power supply?

Each 18 AWG lead uses 41 strands of 0.16 mm brass tin-plated copper — 82 strands total per cable — so it carries more current with less voltage drop than typical 22 AWG pigtails.

How can I confirm the polarity is correct once the red and black leads are soldered to my board?

The red lead is the positive centre-contact and the black lead is the negative barrel; measure continuity from the centre pin to the red wire and from the barrel to the black wire to verify.
