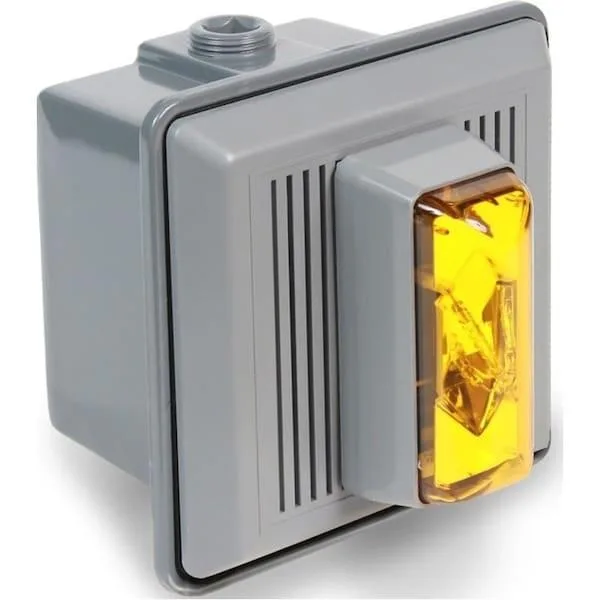

Gray rectangular horn strobe with amber lens, surface mount base, square profile

EDWARDS-SIGNALING

EDWARDS-SIGNALING 869STRA-AQ Horn Strobe 24 V 90 dB

SKU CH-YND0-QXH7Q

A 90 dB horn strobe for 24 V systems, surface or panel mountable from 32 to 120 °F indoor and -31 to 150 °F outdoor

  • TypeSurface Mount Base
  • Loud 90 dB alert audible at 10 ft
  • Dual 24 V AC/DC input simplifies wiring
  • Low 412 mA DC draw reduces power load
  • Engineered thermoplastic housing withstands -31 °F to 150 °F outdoor
  • Amber lens on gray housing meets UL standards

Surface-Mount Horn Strobe

The Edwards Signaling 869STRA-AQ is a combination audible and visual signal for fire or security systems. It operates on 24 V AC or DC power and produces a 90 dB tone at ten feet with an amber strobe lens. The unit is built for indoor or outdoor installation where a single device must alert occupants by sound and light.

Thermoplastic Housing and Wiring

The engineered thermoplastic housing measures five and a half inches square by five eighths deep and supports flush or panel mounting. Gray in colour, it carries UL listing and is rated for 32 to 120 degrees Fahrenheit indoors and minus 31 to 150 degrees Fahrenheit outdoors. Current draw is 462 mA at 24 V AC and 412 mA at 24 V DC, so circuit capacity must match those loads.

Compatibility Checklist

Verify that the control panel supplies 24 V AC or DC and can deliver the stated current for each device on the loop. Confirm the mounting surface accommodates the flush or panel profile and that ambient temperatures stay within the listed range. The amber lens colour should meet the local code requirement for the intended application.

Highlights

  • Loud 90 dB alert audible at 10 ft
  • Dual 24 V AC/DC input simplifies wiring
  • Low 412 mA DC draw reduces power load
  • Engineered thermoplastic housing withstands -31 °F to 150 °F outdoor
  • Amber lens on gray housing meets UL standards

Specifications

BrandEdwards Signaling
Model869STRA-AQ
TypeSurface Mount Base

Questions about this item

What voltage does the 869STRA-AQ horn strobe accept and what current does it draw?

The unit operates on 24 V AC or 24 V DC, drawing 462 mA at 24 V AC and 412 mA at 24 V DC.

What are the mounting options and overall dimensions of the 869STRA-AQ?

It supports flush or panel mounting with a surface-mount base, measuring 5-1/2 in. length, 5-1/2 in. height and 5/8 in. depth.

How is the 869STRA-AQ wired and what common mistake should be avoided?

Connect the supply to the 24 V AC or DC terminals matching the voltage used; a frequent error is applying the wrong voltage to the selected terminal pair.
