Black wall-mount server rack, 4U side-mount, 29.40 inch depth, 200 lb capacity

Eaton

Eaton SRW4USM 4U Server Rack 29.40" Depth 200 lb Capacity

SKU CH-C34B-KR0V2 MPN SRW4USM

A 4U side-mount wall rack enclosure that holds equipment sideways, locks securely, vents airflow and ships assembled for 200 lb capacity

  • TypeRack Enclosure
  • Rack Units4U
  • Sideways equipment mounting fits 4U rack into tight spaces

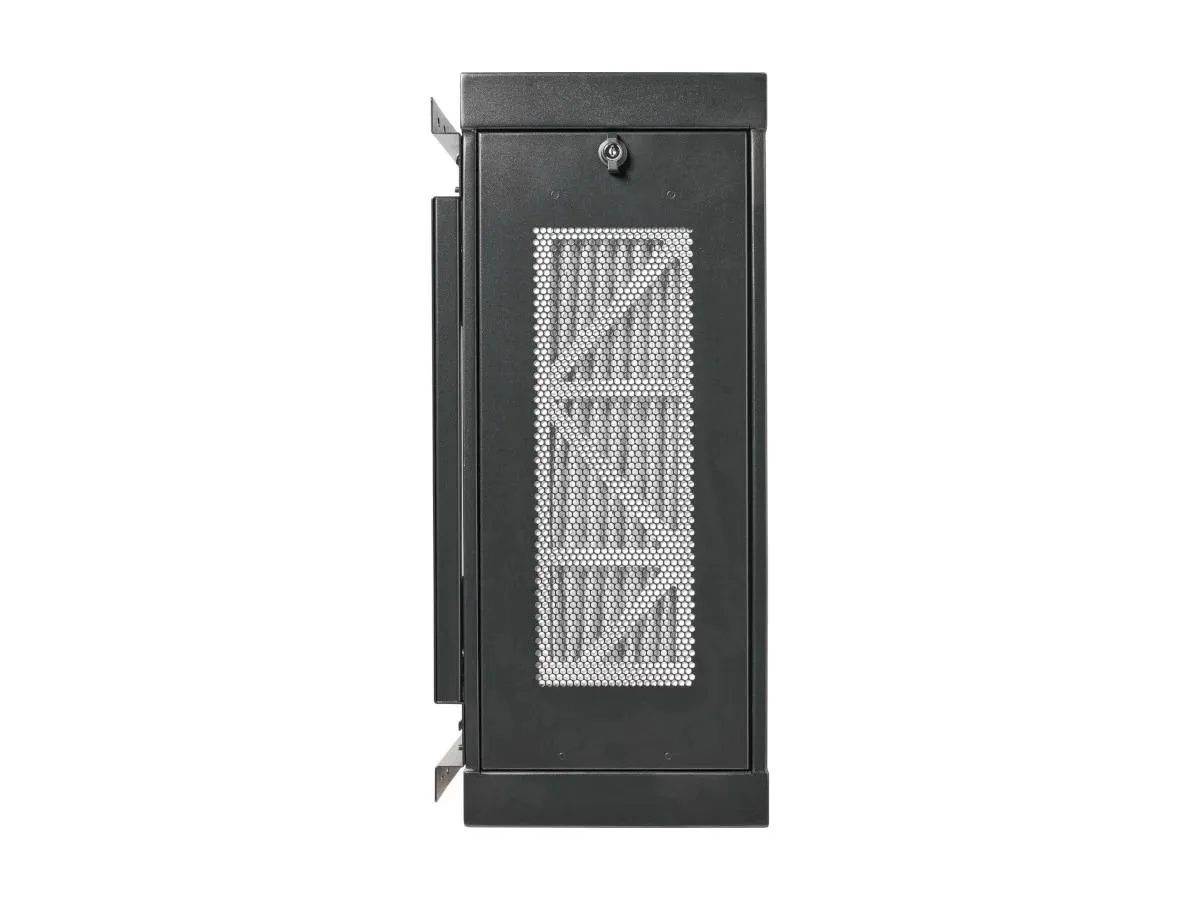

  • Locking doors and side panels protect against tampering and theft

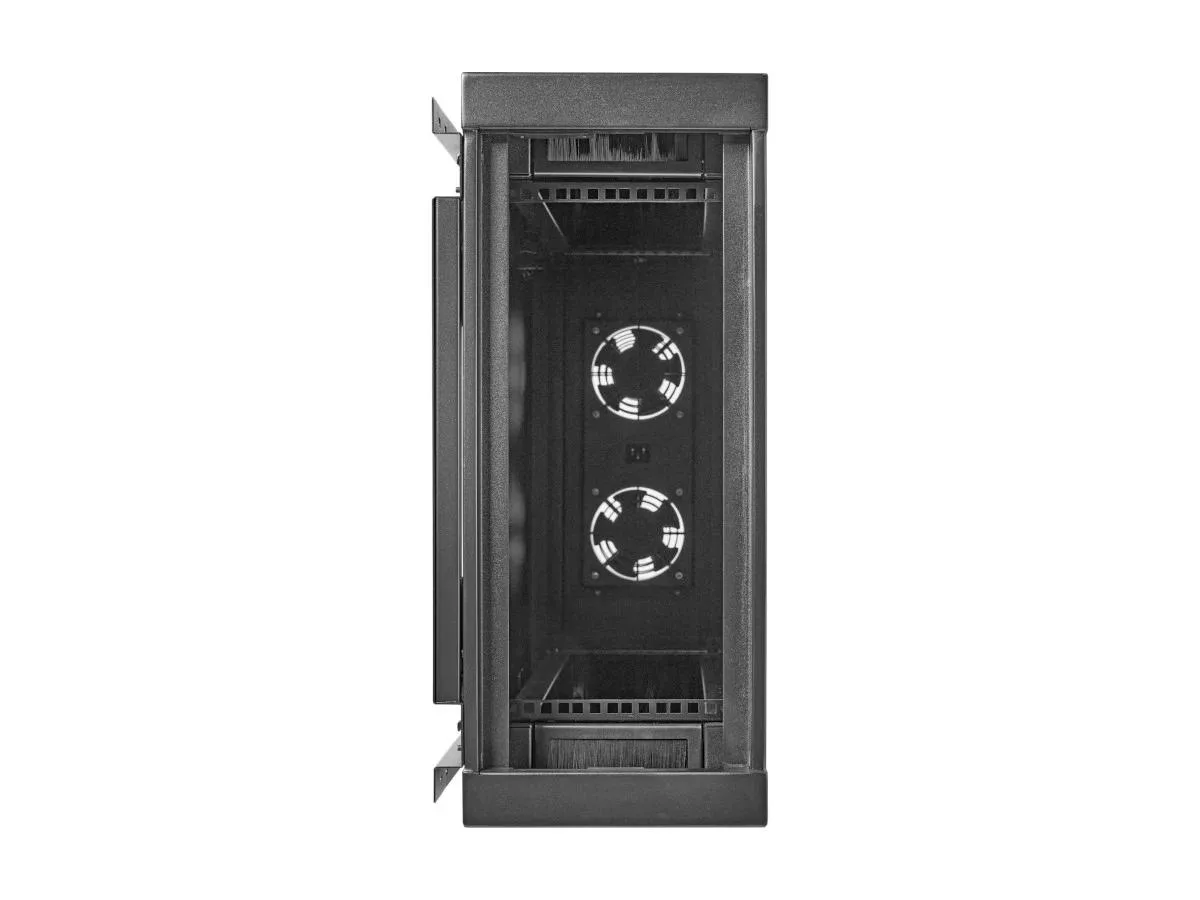

  • Flow-through ventilation maintains cool operating temperatures
  • Ships fully assembled for immediate wall mounting with user-supplied hardware
  • Physical security features support PCI DSS compliance requirements

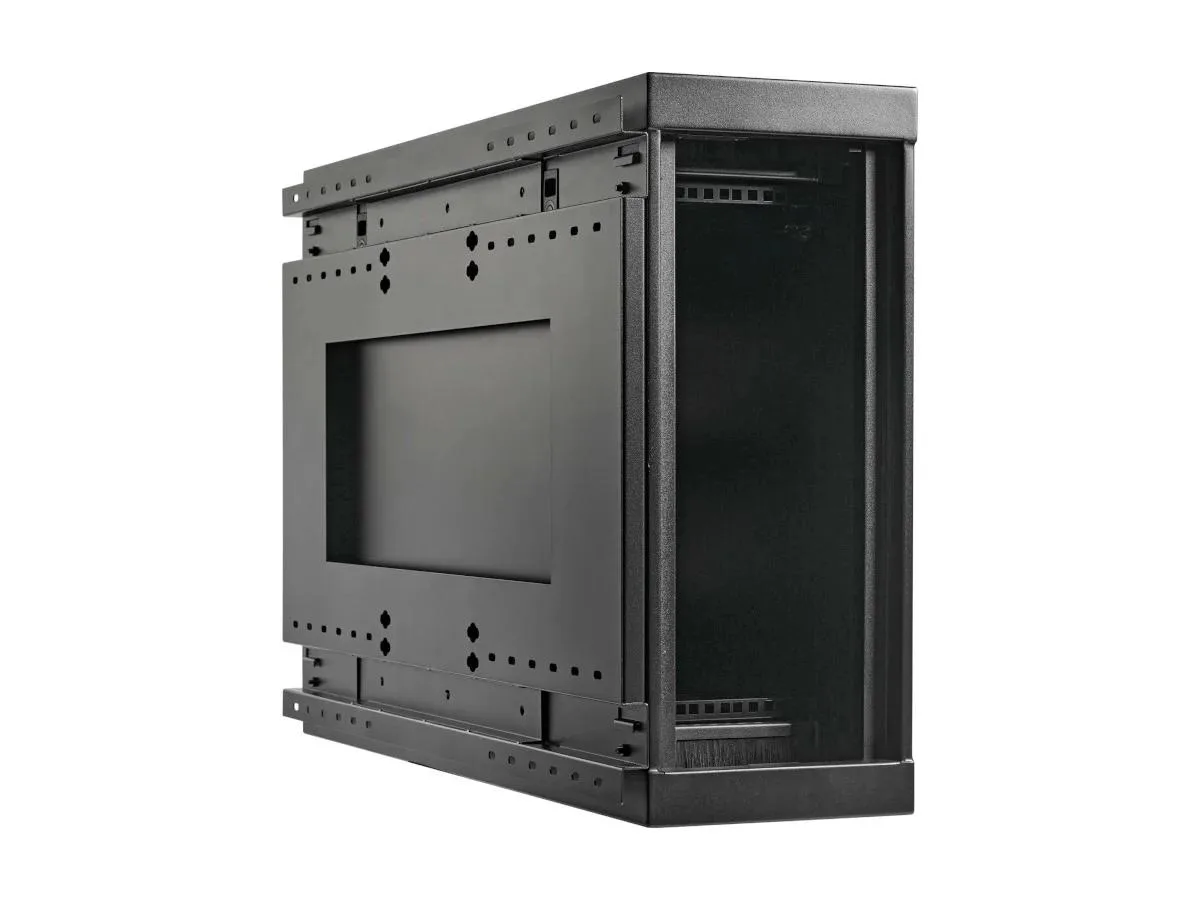

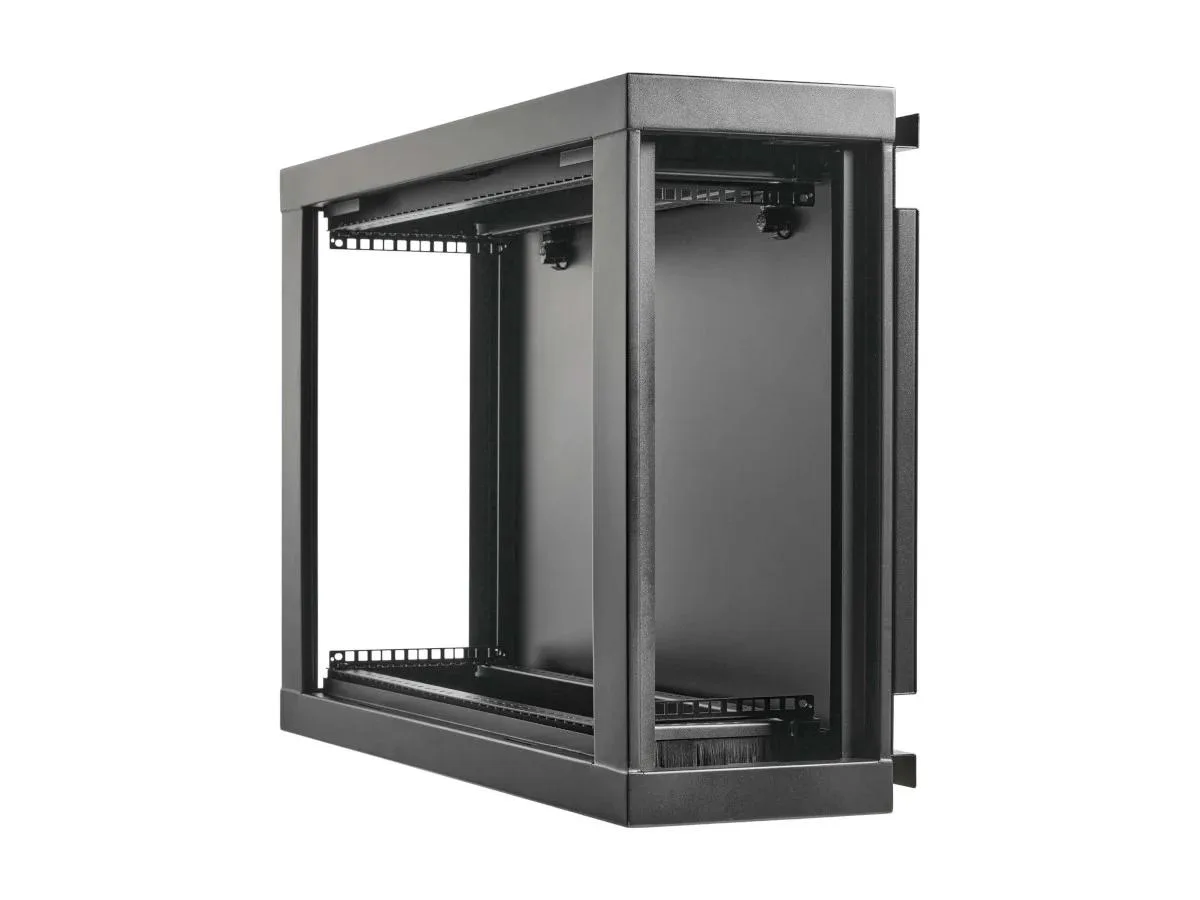

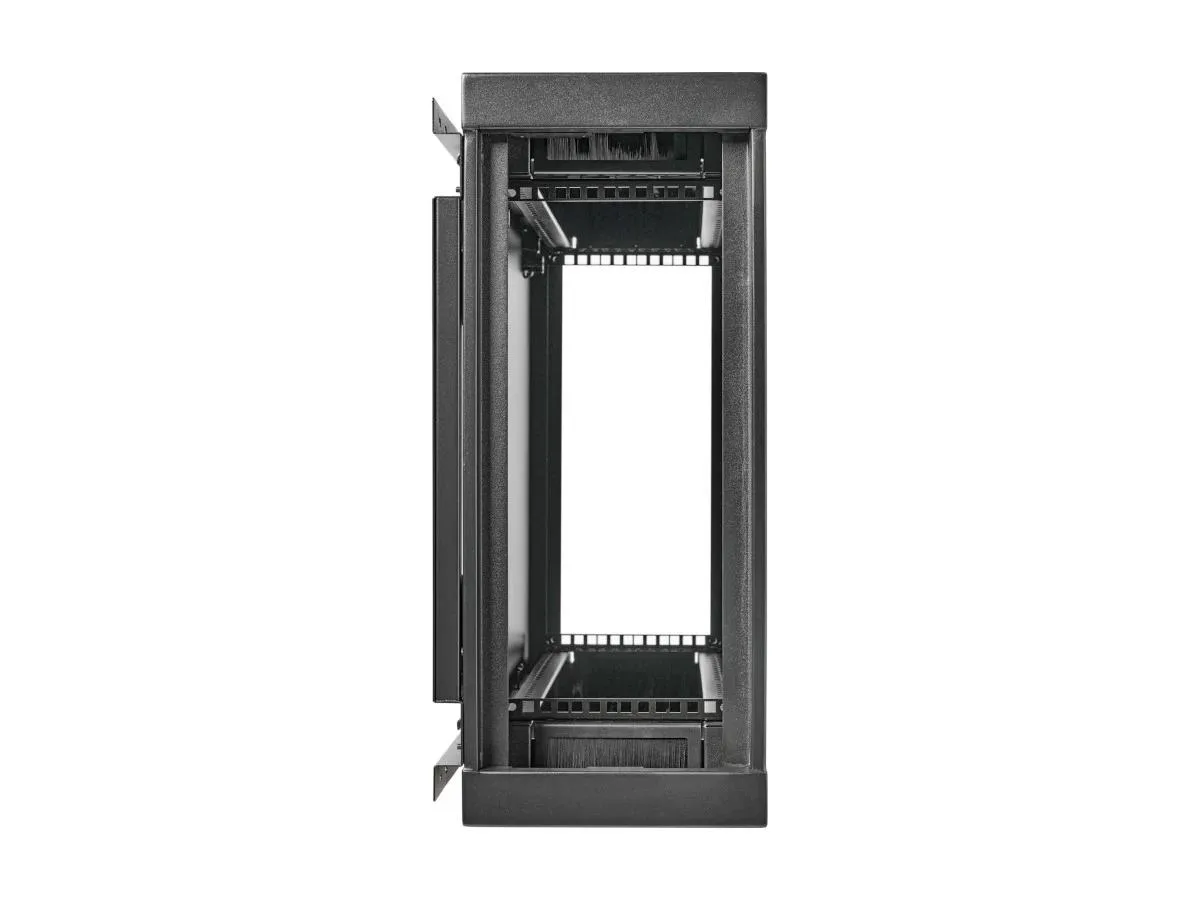

4U side-mount wall rack

The Eaton SRW4USM is a 4U low-profile enclosure that mounts equipment sideways to fit tight wall spaces. It ships fully assembled so installers can secure it to the wall with their own hardware and begin loading gear immediately. Locking doors and side panels protect against tampering and theft. The rack meets physical-security requirements for PCI DSS compliance.

29.40 inch depth constraint

Equipment depth cannot exceed the 29.40 inch rack depth, so only shallow servers, switches or patch panels will fit. The 11 inch overall cabinet depth leaves minimal clearance for rear cabling and airflow behind the mounted devices. Flow-through ventilation relies on unrestricted front and rear openings; blocking either side reduces cooling effectiveness. Wall-mounting hardware is not included, so the installer must supply fasteners rated for the wall material.

200 lb static capacity headroom

The 200 lb stationary weight rating supports a fully populated 4U layout of lightweight network gear or a single shallow server with room to spare. Heavier multi-node chassis or deep storage arrays will exceed the limit before the 4U height is filled. Twelve M6 and twelve 12-24 mounting screws with cage nuts and washers are provided for equipment installation. The removable mounting plate adds flexibility but does not increase the weight ceiling.

Highlights

  • Sideways equipment mounting fits 4U rack into tight spaces
  • Locking doors and side panels protect against tampering and theft
  • Flow-through ventilation maintains cool operating temperatures
  • Ships fully assembled for immediate wall mounting with user-supplied hardware
  • Physical security features support PCI DSS compliance requirements

Specifications

BrandEaton
ModelSRW4USM
Part NumberSRW4USM
TypeRack Enclosure
Rack Units4U
Shipping weight47.63 kg
Package size1041 × 735 × 356 mm

Questions about this item

Should I pick the 4U side-mount rack or a deeper floor-standing model for my patch panel and switch?

The SRW4USM is a 4U side-mount enclosure with 29.40 inch rack depth and 200 lb static capacity; choose it when wall space is limited and equipment fits the 11 inch usable depth.

What does the 200 lb static capacity mean once the rack is on my wall?

It means the fully assembled cabinet can hold up to 200 lb of mounted gear while hanging on user-supplied wall hardware, provided the wall structure can support that load.

How does the side-mount orientation affect the 29.40 inch rack depth in practice?

Equipment mounts sideways so the 29.40 inch rack depth runs horizontally along the wall, giving you that full depth for devices while the cabinet projects only 11 inches into the room.
