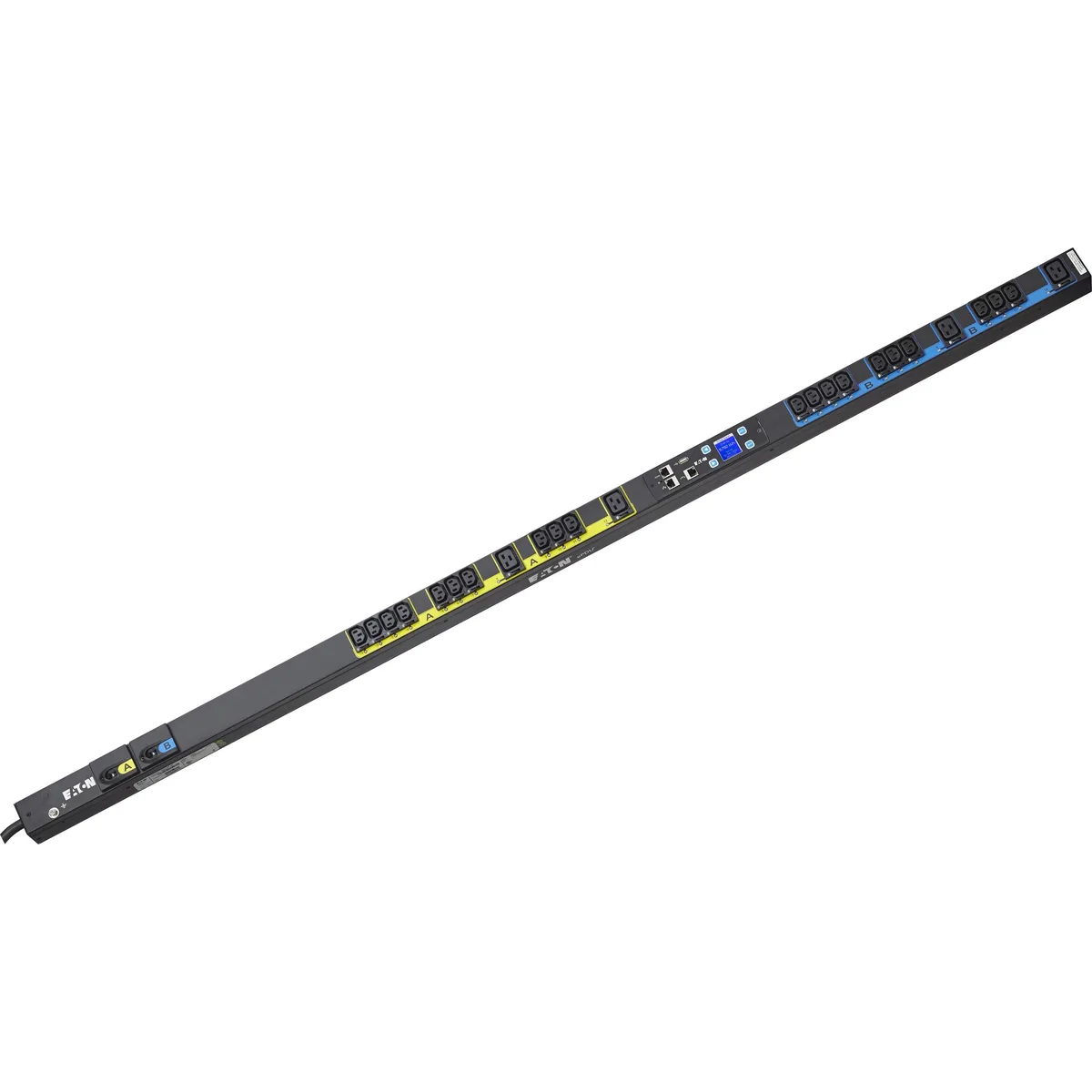

Black vertical 0U PDU with 24 outlets and LCD display

Eaton

Eaton EMA107-10 24-Outlet 5.76 kVA Vertical Managed PDU

SKU CH-0TB6-XDW49 MPN EMA107-10

Vertical 0U managed PDU with 24 outlets delivering 5.76 kVA at 230 V, featuring outlet-level metering and remote switching for data-centre power control

  • TypeSee Details
  • Input Voltage230 V AC
  • Output Voltage230 V AC
  • FeaturesPower Rating:5.76 kVA Form Factor:Vertical Product Type:PDU
  • Weight17
  • Remote reboot per outlet cuts site visits
  • 20 C13 plus 4 C19 outlets fit dense racks
  • ±1 % billing-grade metering aids capacity plans
  • Vertical 0U mount saves rack space
  • Managed network control monitors voltage current power factor

24-Outlet Vertical Managed PDU

This managed power distribution unit delivers 5.76 kVA at 230 V AC through 24 IEC outlets in a 0U vertical form factor. It connects via a single NEMA L6-30P input and provides outlet-level switching with billing-grade metering accuracy of +/- 1%.

Suited for metered rack deployments

Network operations teams gain remote on, off and reboot control per outlet plus local LCD readouts for voltage, current and power factor. Sites that only need basic power distribution without monitoring or switching should consider simpler PDU models.

NEMA L6-30P single-input constraint

The unit requires one 30 A locking supply circuit; facilities without that receptacle type cannot connect it. Multi-feed or alternative plug configurations are not supported by this model.

Highlights

  • Remote reboot per outlet cuts site visits
  • 20 C13 plus 4 C19 outlets fit dense racks
  • ±1 % billing-grade metering aids capacity plans
  • Vertical 0U mount saves rack space
  • Managed network control monitors voltage current power factor

Specifications

BrandEaton
SeriesManaged
ModelEMA107-10
TypeSee Details
Input Voltage230 V AC
Output Voltage230 V AC
FeaturesPower Rating:5.76 kVA
Form Factor:Vertical
Product Type:PDU
Color:Black
Power Rating:5.76 kVA
Form Factor:Vertical
Input Receptacles:1 x NEMA L6-30P
Product Name:ePDU Managed EMA107-10 24-Outlets PDU
Output Receptacles:20 x IEC 60320 C13
4 x IEC 60320 C19
Weight17
Shipping weight7.71 kg
Package size1981 × 254 × 203 mm

Questions about this item

Will the NEMA L6-30P input plug or the 20 C13 and 4 C19 outlets need periodic replacement?

The input plug and IEC 60320 outlets are rated for the unit's service life; no scheduled replacement is required under normal operation.

What is the first limit reached when the PDU runs at full 5.76 kVA load continuously?

The 30 A input circuit breaker trips if sustained draw exceeds the 5.76 kVA rating at 230 V.

How much heat does the unit add to a rack when it operates 24/7 at rated capacity?

The PDU is UL rated for 60 °C ambient temperature, so it dissipates minimal internal heat even under continuous full load.
