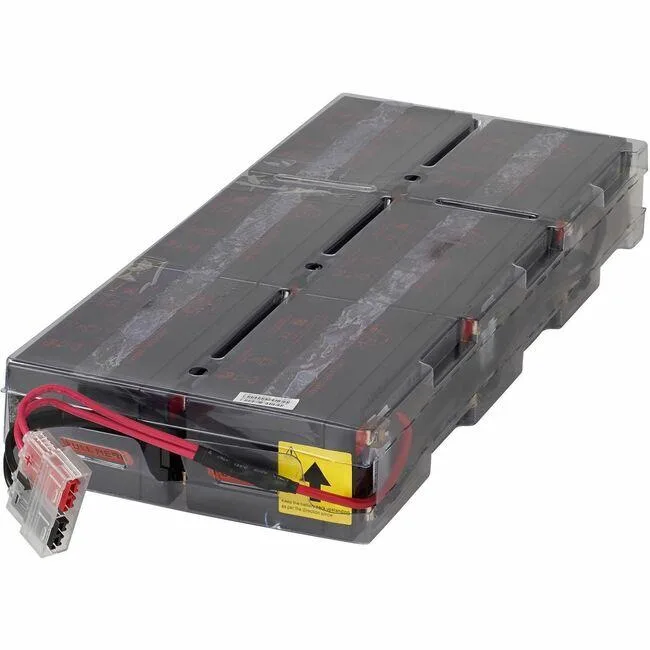

Black rectangular battery cartridge with front handle and label P-1803

Eaton

Eaton EBP-1803 5000mAh UPS Replacement Battery

SKU CH-5PMF-YZ6FC MPN EBP-1803

Hot-swappable 5000 mAh sealed lead-acid battery cartridge for compatible Eaton 5 kVA to 6 kVA UPS systems and extended battery modules

  • TypeBattery Packs
  • CompatibilityEaton 9PX UPS
  • Hot-swappable design enables battery replacement without powering down the UPS
  • Valve-regulated lead-acid chemistry provides dependable charging and maintenance-free operation
  • 5000 mAh capacity supports extended runtime for critical loads
  • Compatible with Eaton 9PX and select 5 kVA to 6 kVA double-conversion UPS systems
  • Chain multiple packs for longer backup time during outages

Replacement Battery for 5kVA–6kVA UPS

The Eaton EBP-1803 is a 5000 mAh lead-acid battery cartridge designed for select Eaton 5kVA to 6kVA double-conversion UPS systems and compatible extended battery modules. It serves data-centre operators and IT managers who need to maintain continuous uptime on supported 9PX and SU series units.

Hot-Swappable Cartridge Installation

The cartridge is hot-swappable so the UPS stays online while the pack is exchanged, removing the need for a scheduled shutdown. Valve-regulated sealed construction prevents electrolyte leakage during handling. The proprietary form factor means the pack fits only the listed Eaton models; forcing it into an unlisted chassis will damage the connector and void the battery.

Lead-Acid Chemistry Limits

Lead-acid chemistry delivers an inexpensive cost per watt-hour but imposes a typical service life of three to five years before capacity degrades below useful levels. Extended runtime is achieved by chaining multiple EBMs such as the BP180RT or 9PXEBM180RT units, yet each additional pack adds weight and requires adequate ventilation because the sealed cells still vent gas under heavy charge.

Highlights

  • Hot-swappable design enables battery replacement without powering down the UPS
  • Valve-regulated lead-acid chemistry provides dependable charging and maintenance-free operation
  • 5000 mAh capacity supports extended runtime for critical loads
  • Compatible with Eaton 9PX and select 5 kVA to 6 kVA double-conversion UPS systems
  • Chain multiple packs for longer backup time during outages

Specifications

BrandEATON
ModelEBP-1803
Part NumberEBP-1803
TypeBattery Packs
CompatibilityEaton 9PX UPS
Shipping weight30.39 kg
Package size640 × 363 × 295 mm

Questions about this item

How can I verify the Eaton EBP-1803 is working after installation?

The UPS will recognise the new cartridge and show normal battery status; a self-test will confirm the 5000 mAh pack holds charge and the hot-swappable module is seated correctly.

What comes with the EBP-1803 and what must I source separately?

The package contains the sealed lead-acid battery cartridge only; mounting hardware, cables and any additional EBM units such as the BP180RT or 9PXEBM360SP are sold separately.

Which Eaton UPS models does the EBP-1803 5000 mAh pack fit?

It is compatible with SU5000RT, SU6000RT, 9PX5K, 9PX6K and 9PX3K3UN series UPS units plus BP180RT, 9PXEBM180RT and 9PXEBM360SP extended battery modules.
