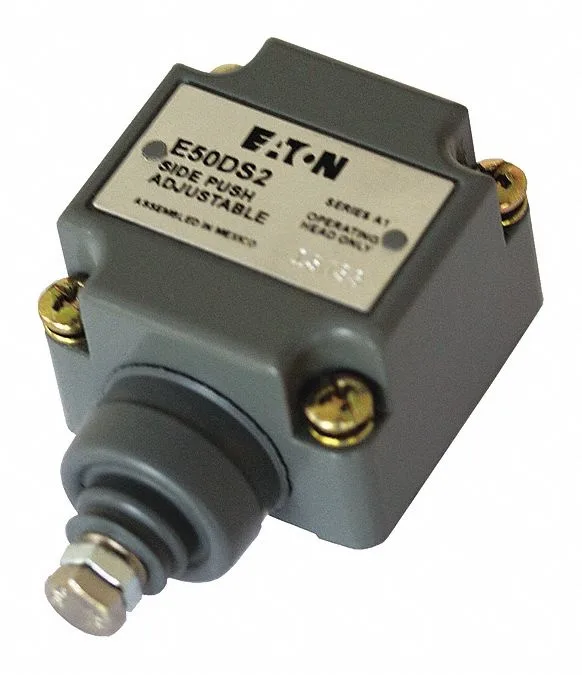

Eaton Cutler-Hammer limit switch head with side plunger actuator, silver metal finish

Eaton

Eaton E50DS2 Cutler-Hammer Limit Switch Head Side .06 in

SKU CH-TFYJ-1FC4K

Side-plunger limit switch head with 0.06 in travel, 10 A at 600 V AC, IP67 and NEMA 1, 2, 4, 4X, 6P, 12, 13 ratings

  • TypeIndustrial Electrical Controls & Automation
  • Side plunger actuates in 0.06 in for compact installations
  • 10 A at 600 V AC handles heavy industrial loads
  • NEMA 1, 2, 4, 4X, 6P, 12, 13 ratings suit harsh environments
  • IP67 sealing resists dust and temporary immersion
  • CSA, RoHS and UL listed for code compliance

Limit Switch Head for E50SA Assemblies

The Eaton E50DS2 is a side-mount plunger head designed to complete a limit-switch assembly when paired with the E50SA body. It suits maintenance engineers and panel builders who need a compact, side-actuated switch for conveyor stops, guard-door interlocks or machine-position sensing in industrial control panels.

NEMA 1 2 4 4X 6P 12 13 and IP67 Environmental Limits

The head carries NEMA 1 2 4 4X 6P 12 13 and IP67 ratings, so it resists dust, splashing water, hose-directed water and temporary submersion in non-hazardous indoor or outdoor locations. It is not rated for explosive atmospheres, prolonged immersion beyond the IP67 test depth or direct exposure to corrosive chemicals outside the listed NEMA types.

0.06 in Actuator Travel Defines the Trip Point

The plunger requires 0.06 in operating travel with 2.2 N force before contacts change state, and total travel reaches 0.25 in before mechanical bottom-out. Reset travel is 0.03 in. If the application demands a longer pre-travel distance or a different actuation force, this head will not meet the functional requirement.

Highlights

  • Side plunger actuates in 0.06 in for compact installations
  • 10 A at 600 V AC handles heavy industrial loads
  • NEMA 1, 2, 4, 4X, 6P, 12, 13 ratings suit harsh environments
  • IP67 sealing resists dust and temporary immersion
  • CSA, RoHS and UL listed for code compliance

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation

Questions about this item

Which actuator length suits my application?

The side-mounted plunger has a 0.06 in actuator length with 0.065 in operating travel and 0.03 in reset travel.

What does the 10 A rating mean in use?

The contacts are rated for 10 A at up to 600 V AC, so the switch can directly control loads within that current and voltage range.

What protection does the IP67 rating give?

IP67 means the head is dust-tight and withstands temporary immersion in water, while the NEMA 1, 2, 4, 4X, 6P, 12, 13 ratings cover indoor, outdoor and wash-down environments.
