Eaton BINTSYS UPS battery integration system

Battery enclosure for Eaton 9PX UPS

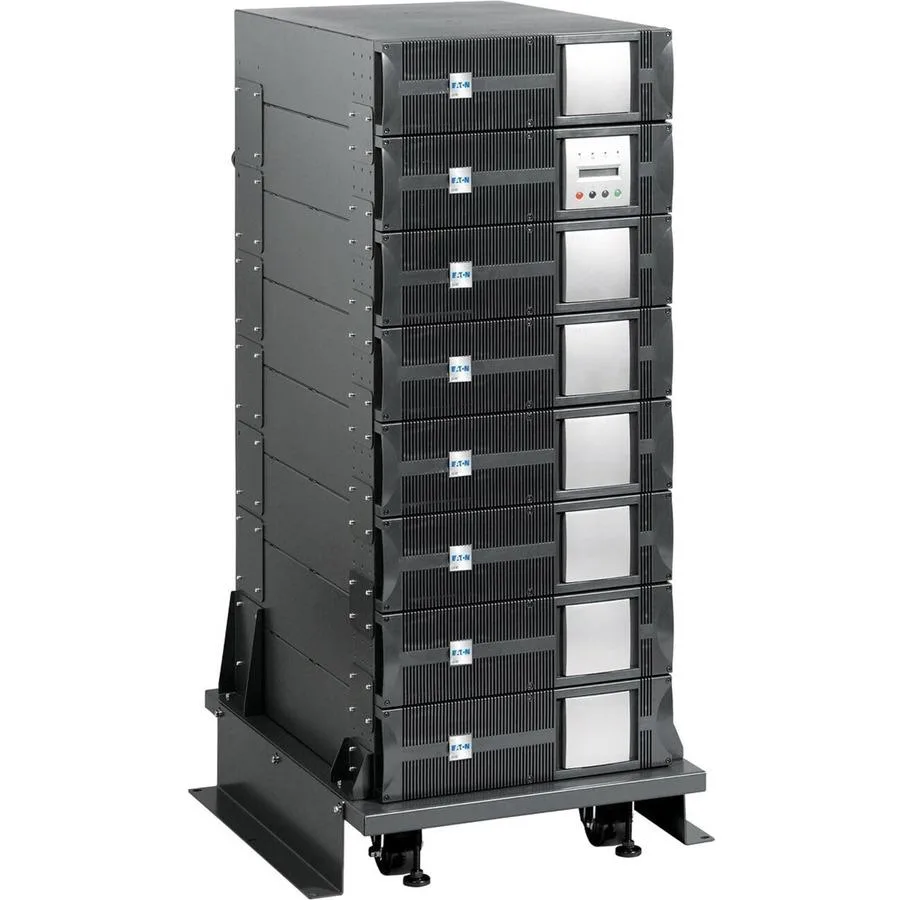

The Eaton BINTSYS is a battery enclosure designed to integrate with multiple Eaton 9PX and 9SX UPS models including 5K, 6K, 8K and 11K variants. It provides a dedicated housing for extended runtime batteries in critical power environments. The unit suits IT managers and facility engineers who need to scale backup capacity for compatible Eaton systems. It is not intended for use with UPS units outside the listed compatibility range.

Rack-mount integration and wiring

Installation involves mounting the enclosure in a standard rack and connecting it to the host UPS using the supplied integration cables and detection hardware. The system communicates battery status to the UPS management card for monitoring. Misaligned cable routing or missing detection links are the most common issues that prevent the UPS from recognising the added capacity. No specialised tools beyond typical rack hardware are required for the mechanical fit.

Sustained discharge and thermal stability

Under continuous load the enclosure maintains stable voltage delivery to the UPS inverter through its internal bus and fuse protection. The battery modules inside are rated for long-duration discharge cycles rather than short bursts, supporting extended outages. Thermal performance relies on passive airflow within the rack aisle; the enclosure adds no active cooling of its own. Runtime scales with the number of connected EBM modules such as the 180 or 240 models.
