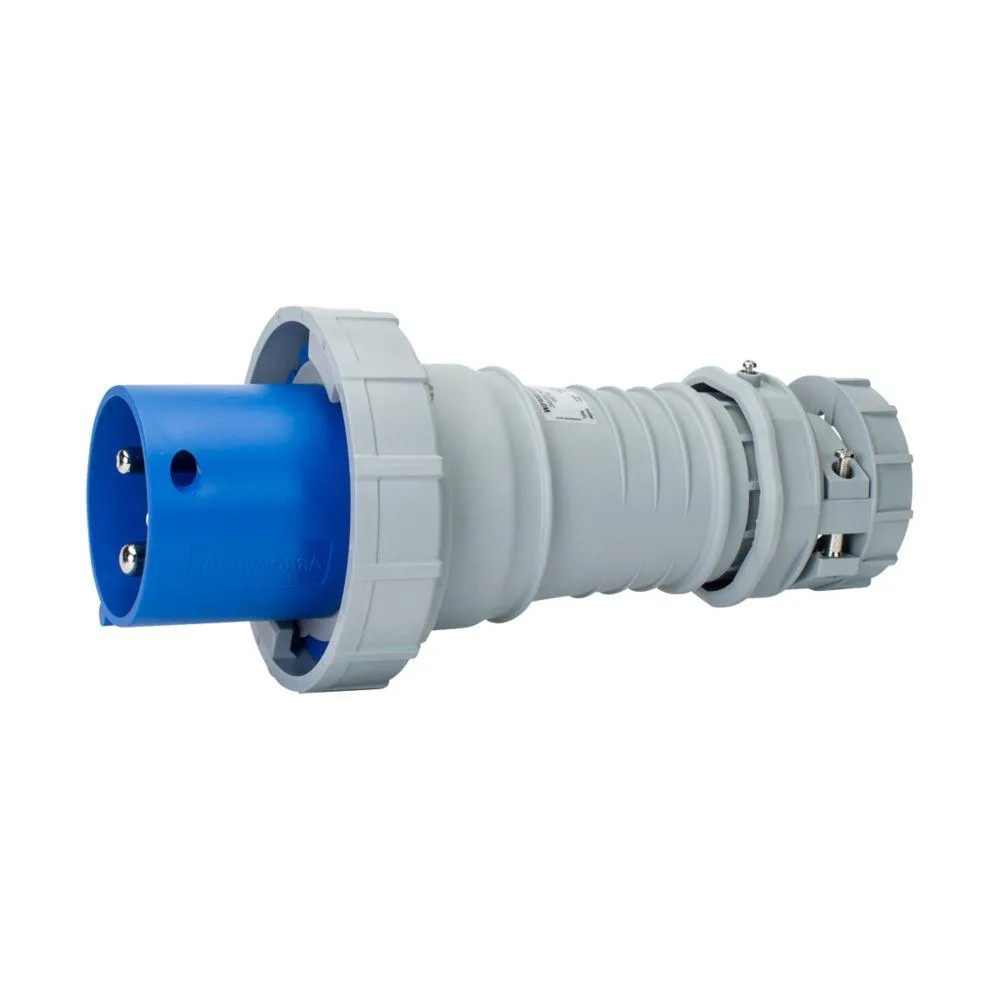

Blue watertight industrial plug, 13.375 by 5.625 by 5.5 inches

Eaton

Eaton AH3100P6W 100A 250V 2P3W straight blade plug

SKU CH-RSHR-EQHS1 MPN AH3100P6W

A watertight 100 A 250 V straight-blade plug with IP67 and IP69K ratings for heavy-duty power connections

  • Item Count1
  • Rated 100A at 250V for heavy-duty power delivery
  • IP67 and IP69K ratings protect against water and high-pressure ingress
  • Two-pole, three-wire grounding design ensures safe electrical connection
  • Accepts #4–1/0 AWG conductors plus #12–16 AWG pilot wires
  • Compact 13.375 x 5.625 x 5.5 inch blue nylon housing with nickel-plated brass contacts

100 A 250 V industrial plug

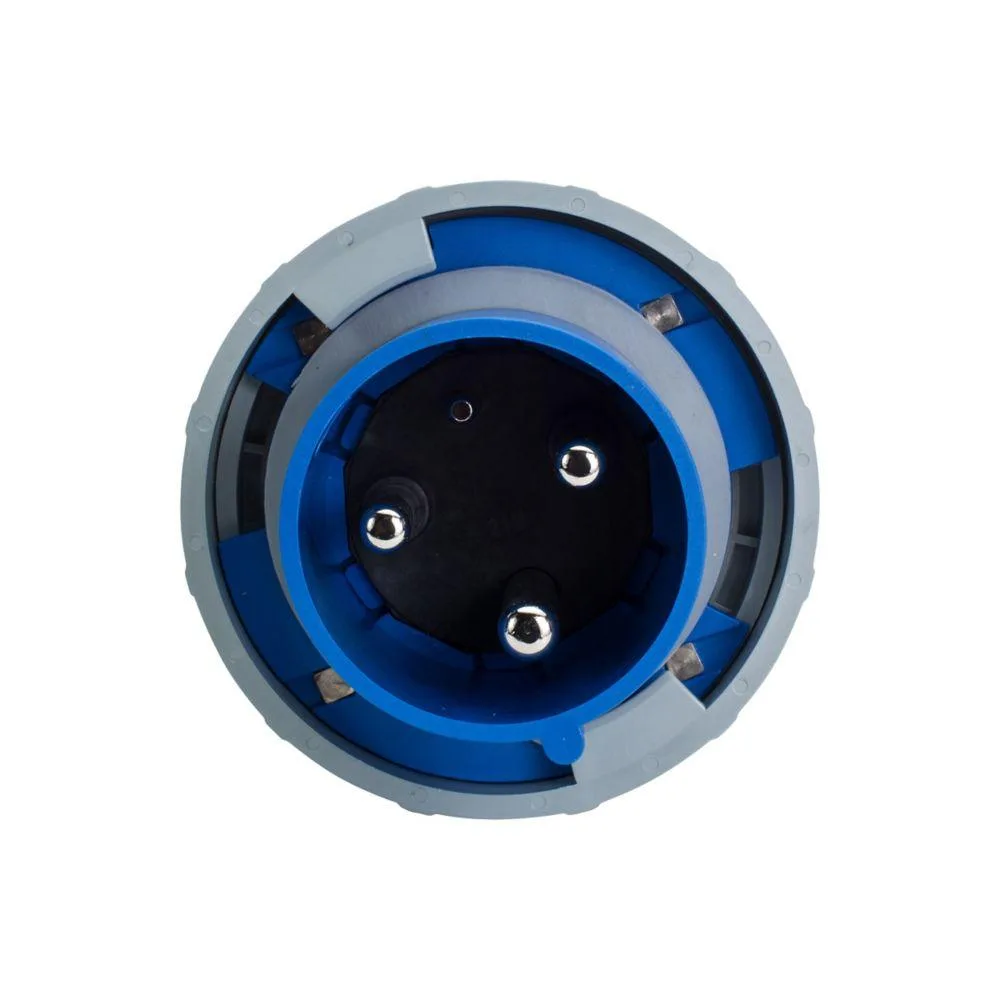

This Eaton Arrow Hart pin-and-sleeve plug delivers 100 A at 250 V for heavy-duty power connections. It uses a two-pole, three-wire grounding configuration with a male contact design. The housing is blue nylon with nickel-plated brass contacts. Rated IP67 and IP69K, it resists water ingress and high-pressure washdown.

Installers needing watertight 100 A service

The plug suits industrial, marine and food-processing equipment that demands a sealed 100 A connection. It accepts #4 to 1/0 AWG conductors and a #12 to #16 AWG pilot wire. Buyers who need a lower amperage rating or a different voltage should select another model. The straight-blade form factor also means it will not mate with twist-lock inlets.

Cable range 0.97 to 1.94 in

The cable accommodation spans 0.97 to 1.94 inches (2.46 to 5.00 cm) outer diameter. This single dimension determines whether your supply cable fits the gland. Verify your cable OD before ordering.

Highlights

  • Rated 100A at 250V for heavy-duty power delivery
  • IP67 and IP69K ratings protect against water and high-pressure ingress
  • Two-pole, three-wire grounding design ensures safe electrical connection
  • Accepts #4–1/0 AWG conductors plus #12–16 AWG pilot wires
  • Compact 13.375 x 5.625 x 5.5 inch blue nylon housing with nickel-plated brass contacts

Specifications

BrandEaton
ModelAH3100P6W
Item Count1

Questions about this item

How do I verify the Eaton AH3100P6W plug is correctly wired after installation?

Confirm the two poles and grounding wire are firmly seated in the back-wire terminals for 4-1/0 AWG conductors and the pilot wire uses 12-16 AWG, then test for continuity and proper voltage at 250 V.

What comes with the Eaton AH3100P6W and what must I source separately?

The package includes one blue male plug with nickel-plated brass contacts and a nylon housing rated IP67 and IP69K; you must supply cable sized 4-1/0 AWG for power and 12-16 AWG for the pilot conductor.

Which Eaton AH3100P6W variant should I select for my 100 A 250 V application?

This single model is rated 100 A at 250 V with two-pole three-wire grounding, IP67/IP69K sealing and a cable range of 0.97-1.94 in, so choose it when those exact specifications match your requirement.
