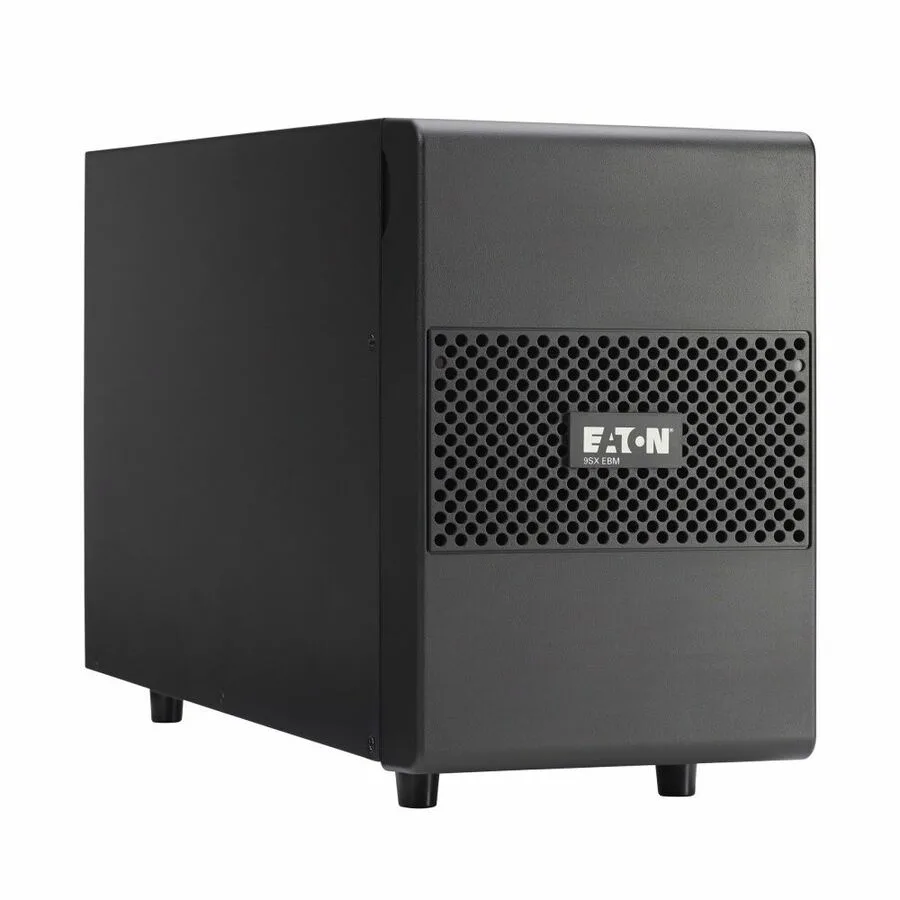

Tower Eaton 9SX 36V extended battery module, dark metal finish, 8.4 by 13.6 by 16.2 inches

Eaton

Eaton 9SXEBM96 36V ups replacement battery 107.40 lb

SKU CH-G4TH-3VTAH MPN 9SXEBM96

36 V extended battery module adds runtime to compatible Eaton 9SX UPS units and supports daisy-chaining up to four packs

  • TypeBattery Unit
  • CompatibilityEaton 9SX UPS: 9SX2000 9SX2000G 9SX3000 9SX3000G 9SX3000GL 9
  • Weight107.40 lb
  • Package Contents9SX Extended Battery Module (EBM) 9SX 36V EBM Quick Start Gu
  • Extended runtime for compatible 9SX UPS systems
  • Daisy-chain up to four modules for longer backup
  • Heavy-gauge cabling with high-current connectors included
  • Tower form factor fits 9SX2000 and 9SX3000 series
  • 36 V module weighs 107.40 lb with quick-start guide

Extended battery module for Eaton 9SX UPS

The Eaton 9SXEBM96 is a 36V extended battery module designed to increase the runtime of compatible Eaton 9SX UPS systems. It supports the 9SX2000, 9SX2000G, 9SX3000, 9SX3000G, 9SX3000GL and 9SX3000HW models. The unit ships with a quick start guide and an EBM connector cable for immediate integration. It is intended for users who need longer backup power during outages.

Tower form factor with daisy-chain capability

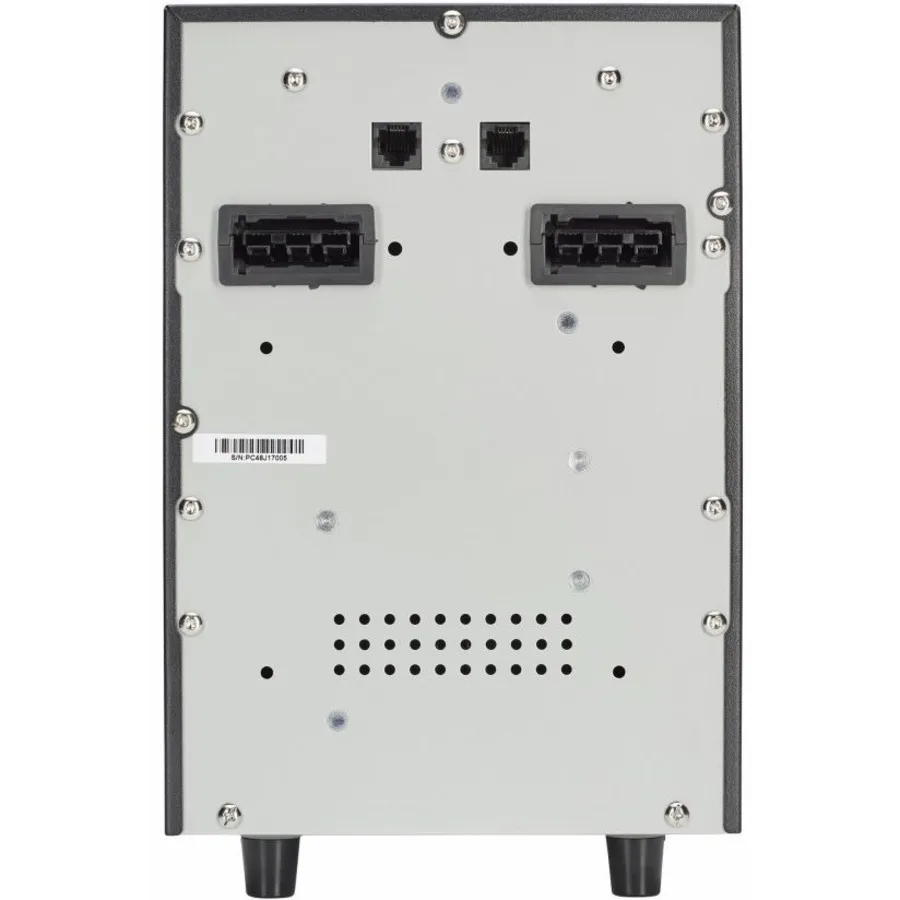

The module measures 13.6 inches high, 8.4 inches wide and 16.2 inches deep, fitting a standard tower orientation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation between the UPS and the battery pack. Up to four matching modules can be daisy-chained to further extend runtime without additional UPS hardware. Buyers who need rackmount dimensions or a different voltage platform cannot use this unit.

Sustained runtime under continuous load

The 36V battery pack delivers extended runtime throughout a discharge cycle rather than only during brief interruptions. Its weight of 107.40 lb reflects the cell capacity required for prolonged operation under steady demand. The included connectors maintain secure contact during long periods of current draw. Users who require hot-swappable battery trays or modular cell replacement will not find those features here.

Highlights

  • Extended runtime for compatible 9SX UPS systems
  • Daisy-chain up to four modules for longer backup
  • Heavy-gauge cabling with high-current connectors included
  • Tower form factor fits 9SX2000 and 9SX3000 series
  • 36 V module weighs 107.40 lb with quick-start guide

Specifications

BrandEATON
TypeBattery Unit
CompatibilityEaton 9SX UPS:
9SX2000
9SX2000G
9SX3000
9SX3000G
9SX3000GL
9SX3000HW
Weight107.40 lb

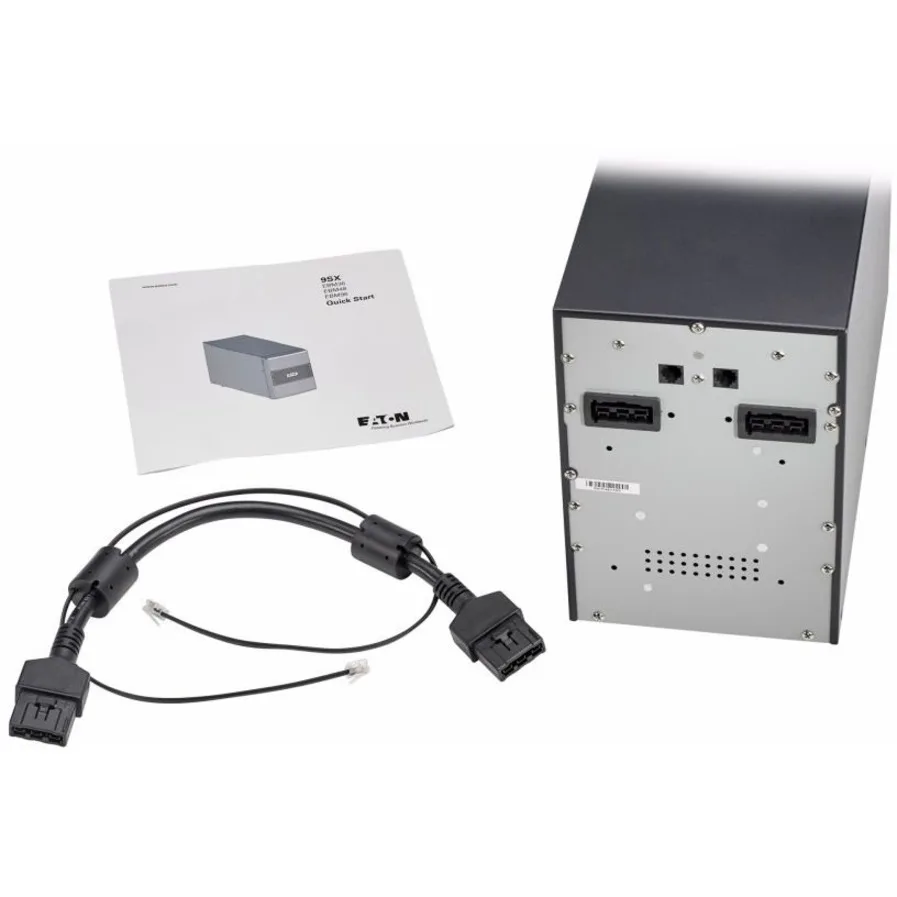

Package Contents9SX Extended Battery Module (EBM)
9SX 36V EBM
Quick Start Guide
EBM Connector Cable
Shipping weight51.26 kg
Package size432 × 356 × 229 mm

Questions about this item

How long will the 36 V EBM run before its cells reach end-of-life under continuous load?

The module is rated for a two-year limited warranty period; actual service life depends on discharge depth, temperature and charge cycles rather than a single runtime figure.

Does the 107.40 lb tower generate noticeable fan noise or heat when powering a 9SX UPS all day?

The EBM has no internal fans; it relies on passive cooling, so it adds no audible noise and only the heat normal for lead-acid batteries under float charge.

Which UPS must I already own for the 9SXEBM96 to connect and function?

Compatible units are the Eaton 9SX 2000, 2000G, 3000, 3000G, 3000GL and 3000HW models; the included DC connector cable links directly to their EBM port.
