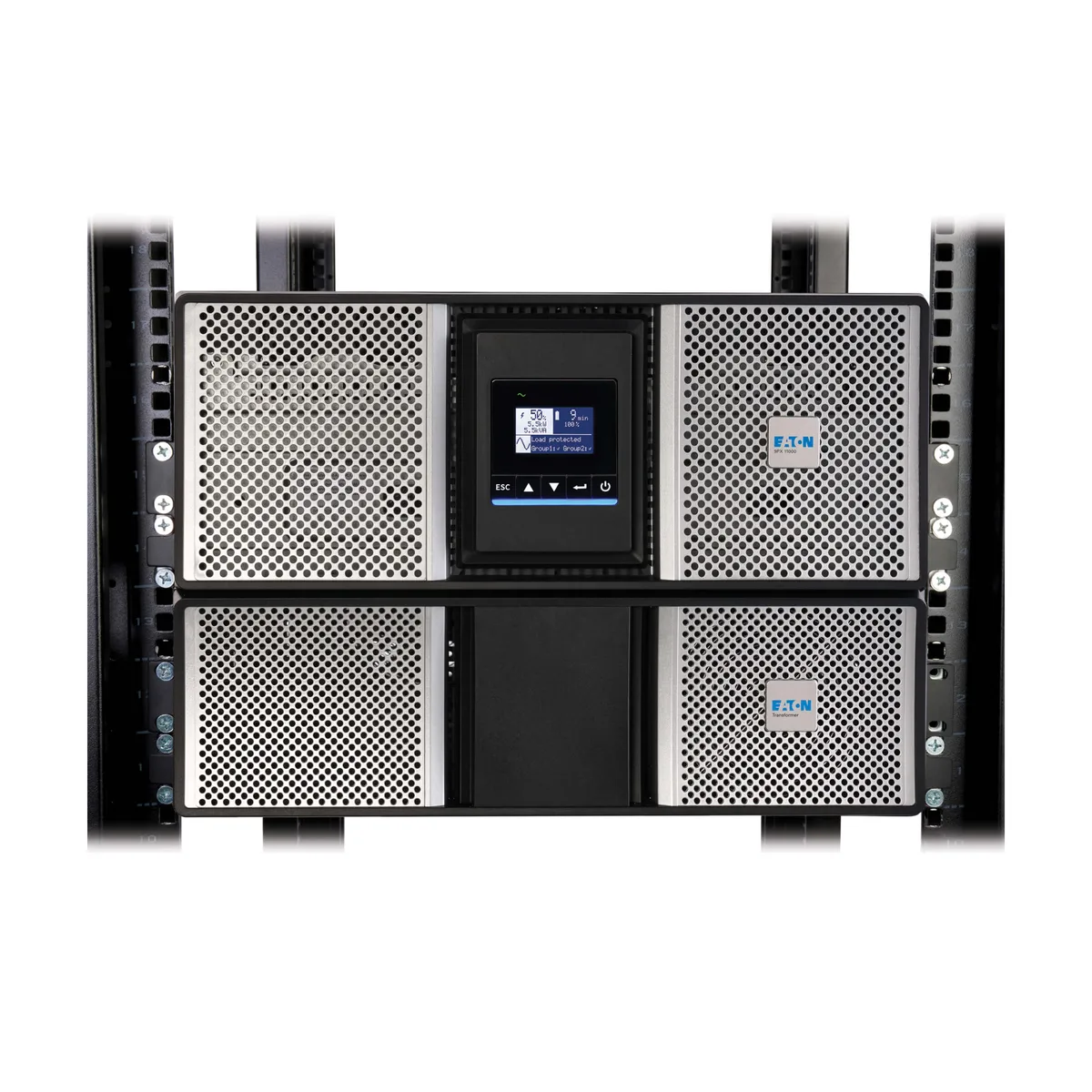

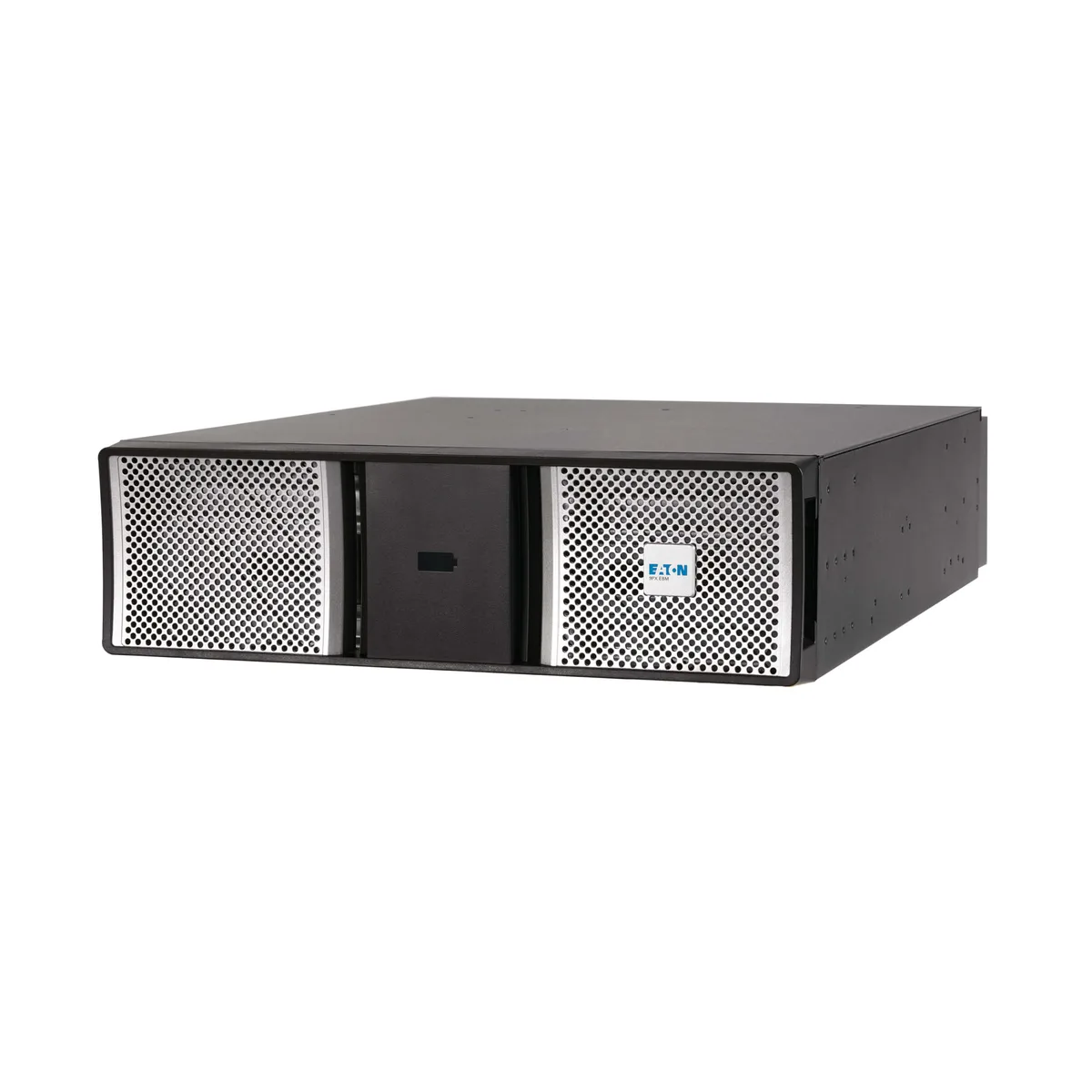

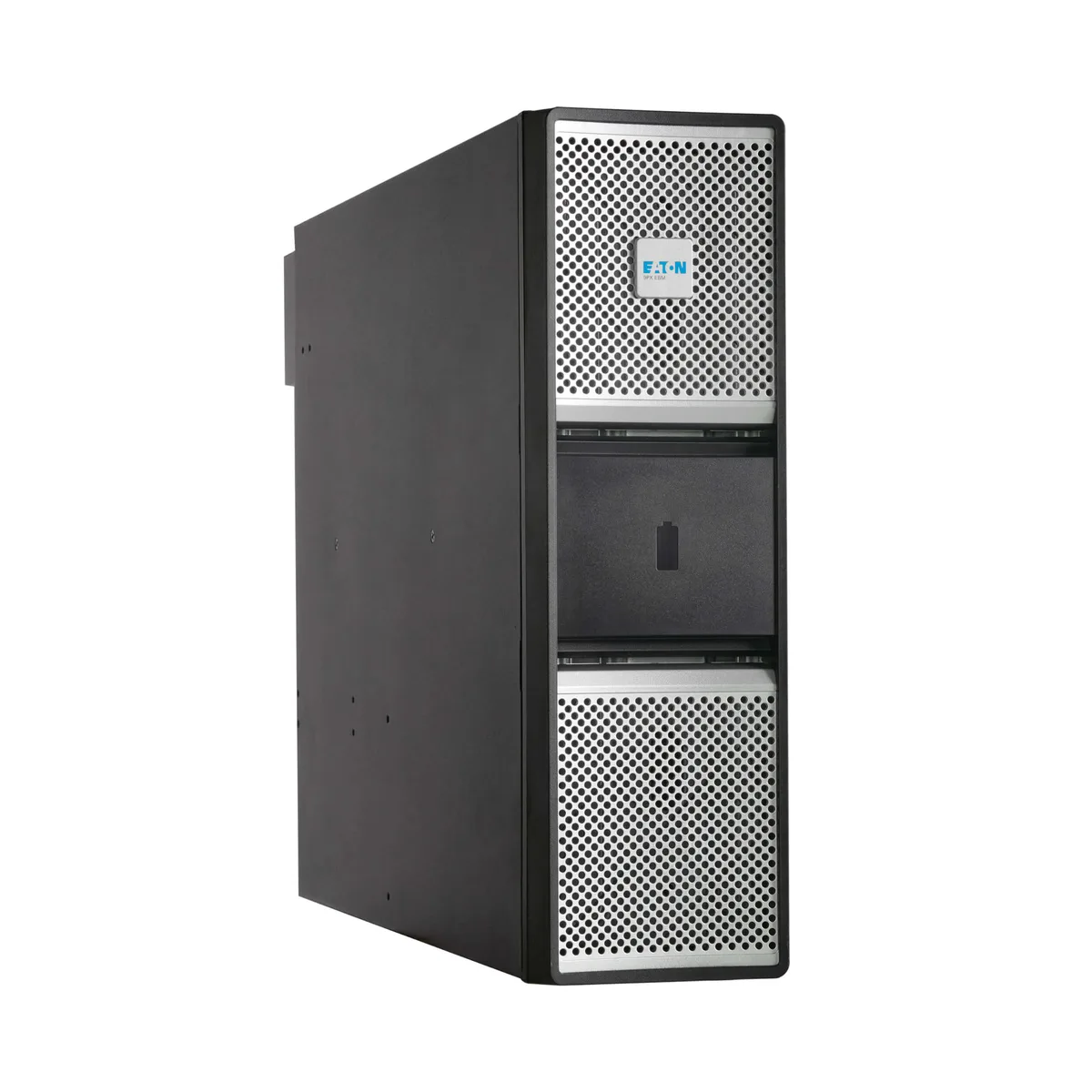

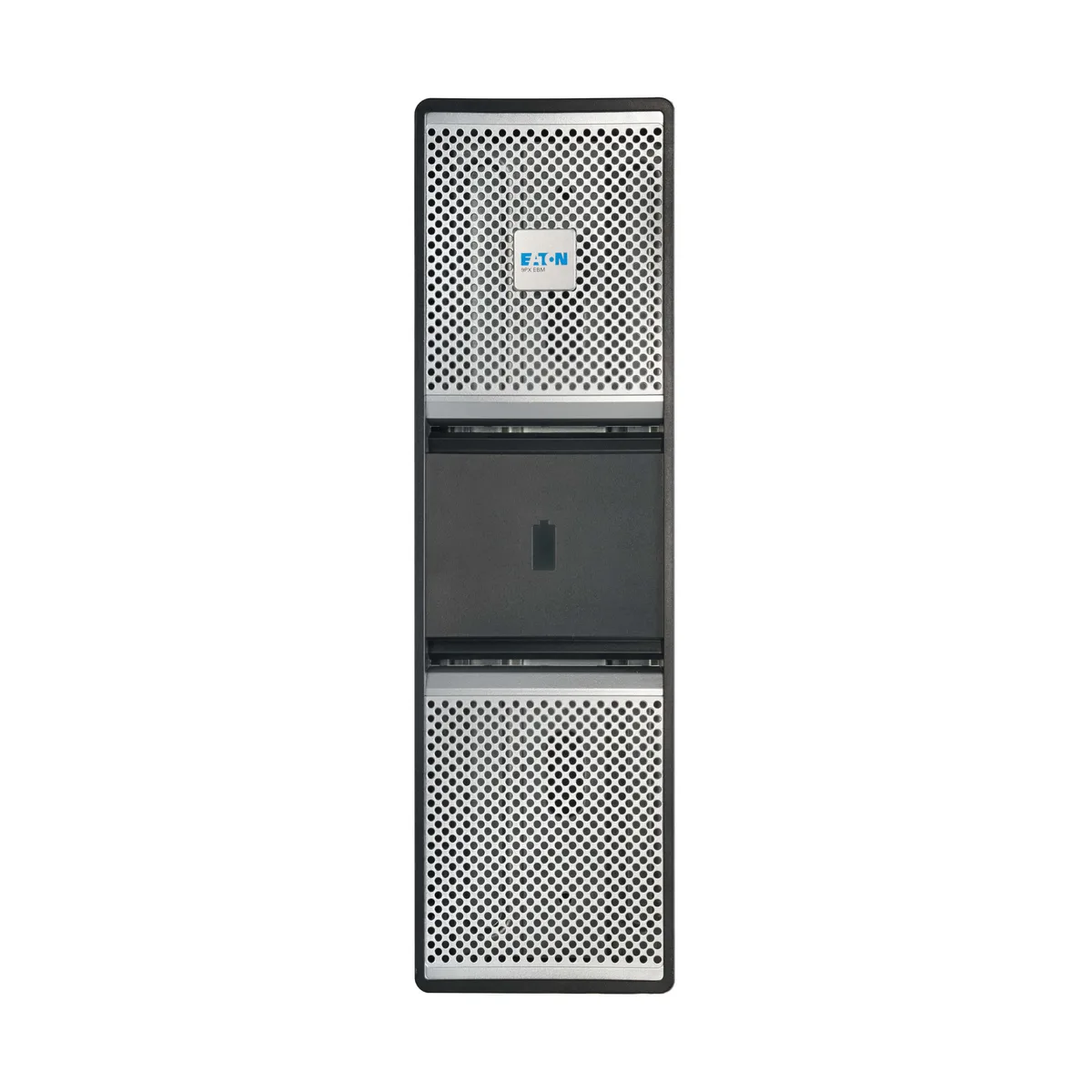

Eaton 9PX extended battery module, 3U rack tower form, dark metal finish

Eaton

Eaton 9PXEBM240RTG2 240 V Extended Battery Module UPS

SKU CH-P4Q0-PBH3V MPN 9PXEBM240RTG2

Provides extended runtime for compatible 240 VDC UPS systems using hot-swappable VRLA batteries with ABM+ management

  • Extended runtime for 9PX G2 UPS with 240 VDC battery module
  • Hot-swappable cartridges let you replace batteries without downtime
  • ABM+ technology optimises charging to extend battery service life
  • Single-phase input with short cord simplifies rack or tower installation
  • User-replaceable design uses two EBP-2003 cartridges per module

Eaton 9PX EBM 240 V Extended Battery Module

This 240 V extended battery module adds runtime to compatible Eaton 9PX G2 UPS systems. It is designed for single-phase environments and fits 3U rack or tower installations. The module is intended for IT managers and facility operators who need longer backup time for critical loads.

Hot-swappable battery cartridges and ABM+ management

Each module requires two user-replaceable EBP-2003 cartridges that can be swapped without powering down connected equipment. ABM+ technology manages charge cycles to extend battery service life. A one-foot input cord is included for connection to the host UPS.

Valve-regulated lead-acid cells at 240 VDC

The VRLA battery string delivers 240 VDC to the UPS DC bus, providing additional minutes of runtime at full load. Runtime scales with the number of attached EBMs, while recharge time grows proportionally. The unit is not a standalone UPS and cannot operate without a compatible 9PX G2 host.

Highlights

  • Extended runtime for 9PX G2 UPS with 240 VDC battery module
  • Hot-swappable cartridges let you replace batteries without downtime
  • ABM+ technology optimises charging to extend battery service life
  • Single-phase input with short cord simplifies rack or tower installation
  • User-replaceable design uses two EBP-2003 cartridges per module

Specifications

No published specifications for this item yet.

Questions about this item

How often will the internal EBP-2003 battery cartridges need replacing and are they user-serviceable?

The module uses two hot-swappable EBP-2003 VRLA cartridges that can be replaced by the user without shutting down the connected UPS.

What limits runtime when the 240 VDC battery string is discharged continuously?

Runtime is limited by the VRLA battery capacity and the load placed on the host 9PX G2 UPS; the module itself adds no active circuitry that would throttle output.

Does the 3U rack/tower module add audible fan noise or extra heat during all-day operation?

The EBM contains no fans or active cooling; it relies on passive dissipation, so it adds negligible noise and only the heat inherent to VRLA battery charging and discharging.
