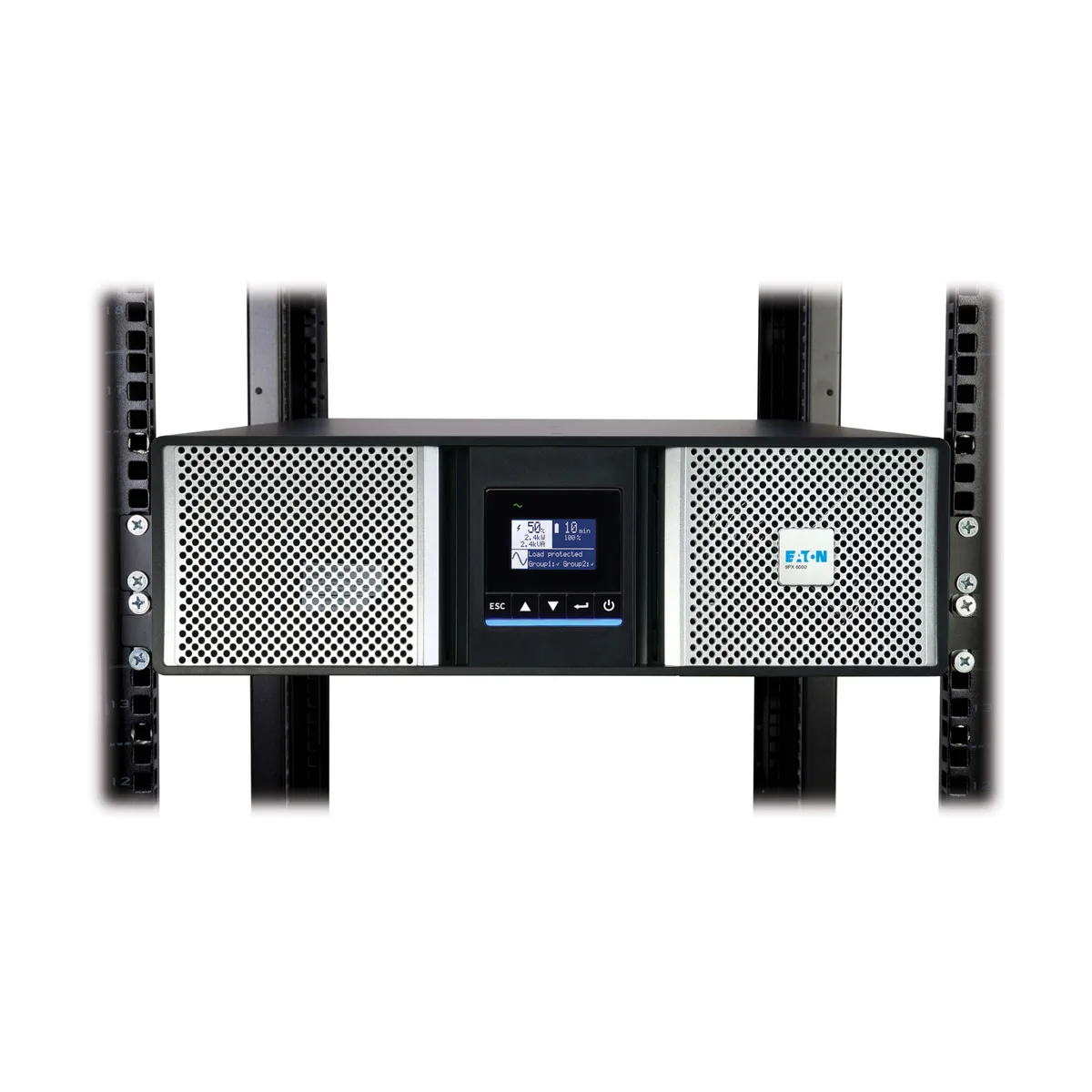

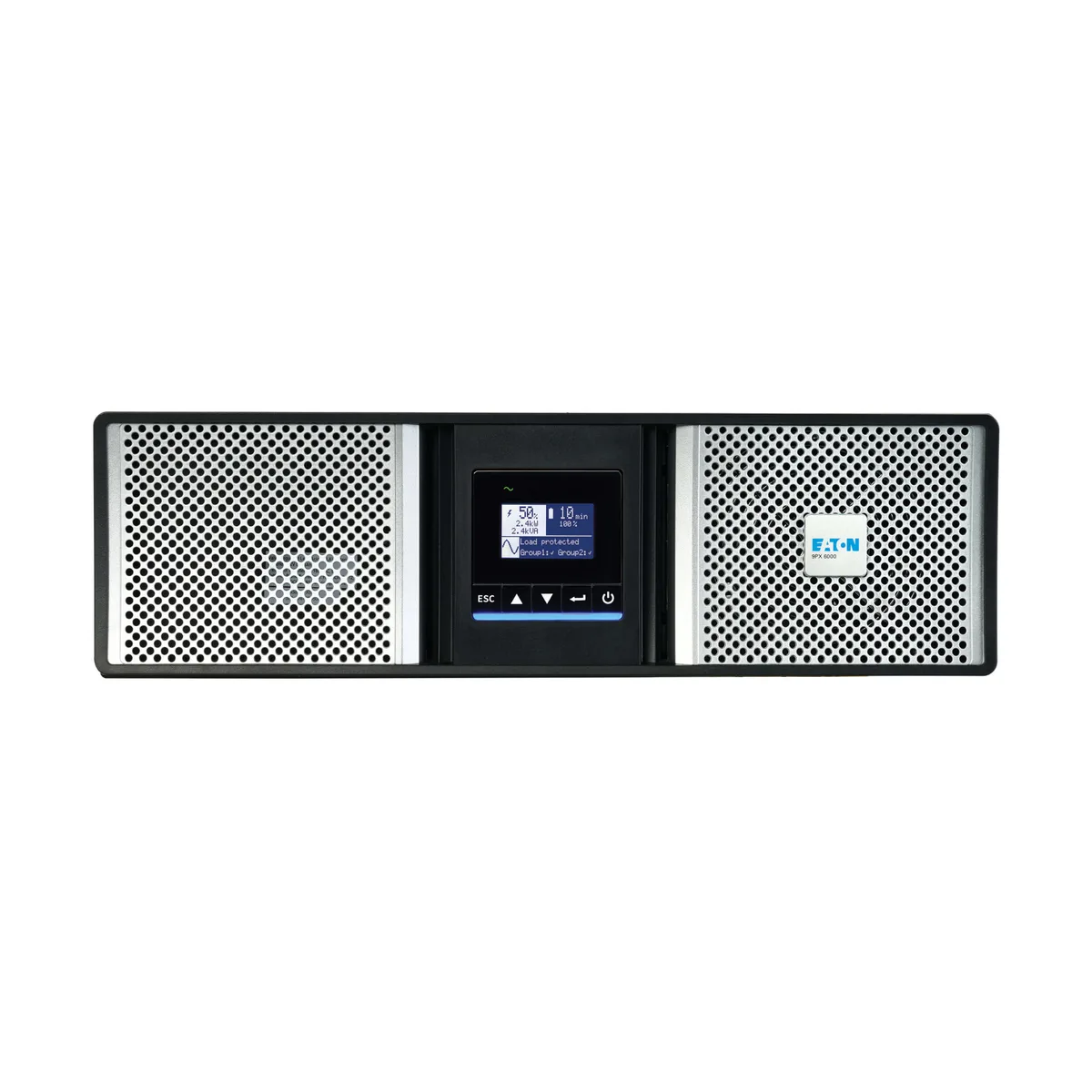

Rectangular 3U rack tower UPS in matte black with front LCD display and rear connection panel

Eaton

Eaton 9PX6KG2 6000VA 5400W 208V UPS

SKU CH-P5TQ-1XKTC MPN 9PX6KG2

Online double-conversion UPS delivers 6000VA 5400W at 208V with hardwired or L6-30P input, two L6-20R and two L6-30R outlets, plus a cybersecure network card in a 3U rack/tower form factor

  • 6000 VA online double-conversion protects critical loads with clean sine-wave power
  • 5400 W real capacity supports dense server racks without oversizing
  • Flexible 200–240 V input accepts global voltages from 200 V to 240 V
  • Hardwire or L6-30P input with 10 ft cord simplifies rack or tower installation
  • Four locking outlets — two L6-20R and two L6-30R — plus hardwire output enable versatile load connections

6000 VA online UPS for critical infrastructure

The Eaton 9PX6KG2 delivers 6000 VA and 5400 W of double-conversion power protection for servers, network gear and storage arrays. Its online topology isolates connected loads from every mains disturbance, making it suited to environments where uptime is non-negotiable. The unit accepts 200 V to 240 V nominal input and operates from a single-phase source.

Hardwired or L6-30P input with mixed L6-20R

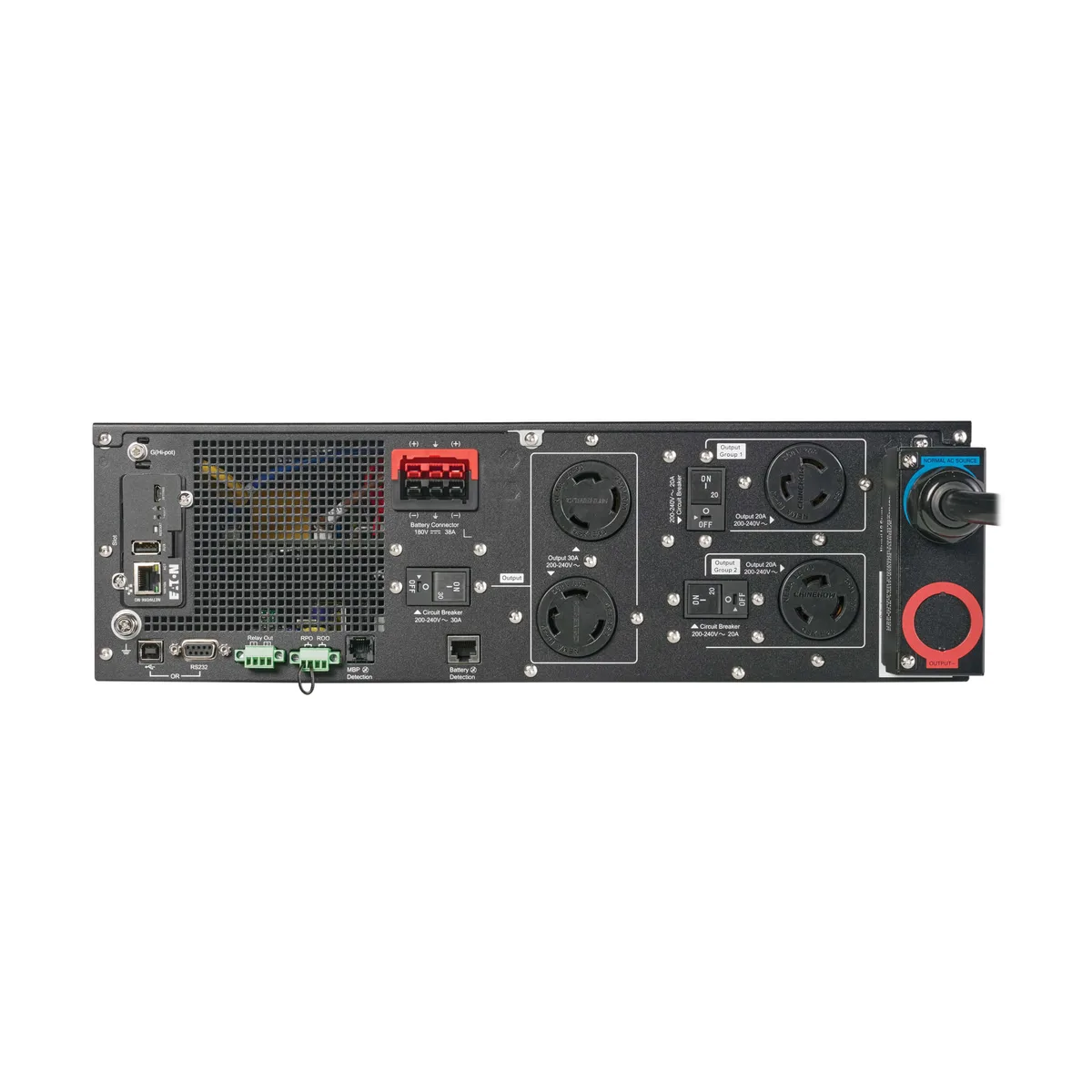

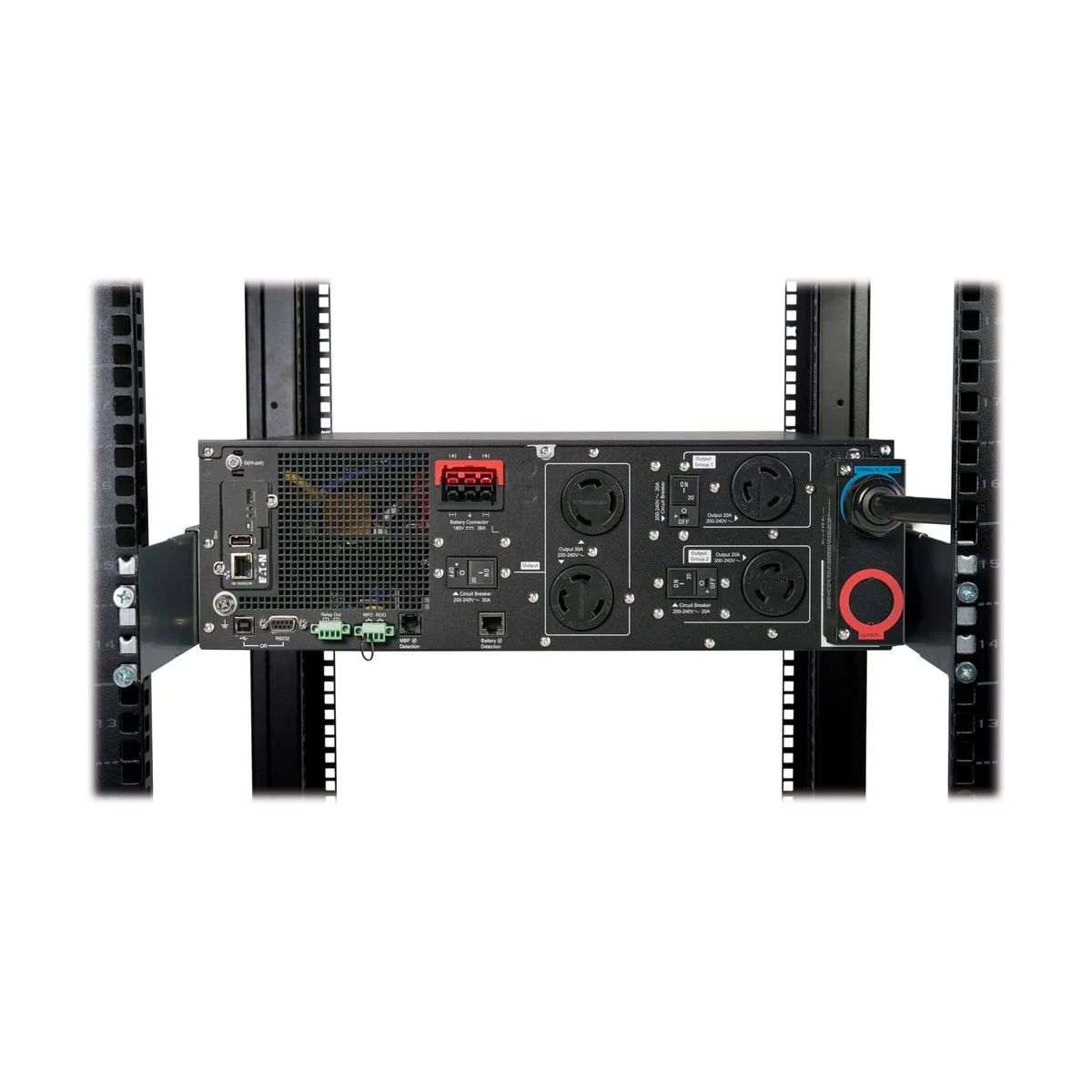

A ten-foot cord ends in either a NEMA L6-30P plug or bare conductors for hardwired installation, fed by a 30 A or 40 A upstream breaker respectively. The rear panel provides two L6-20R and two L6-30R receptacles plus a hardwired output terminal block, allowing flexible distribution to rack-mounted equipment. A factory-fitted cybersecure network card enables remote monitoring and management over IP.

Double-conversion efficiency

Online double-conversion operation maintains a pure sine-wave output while the internal batteries stay charged for extended run time during outages. The 3U rack/tower chassis is designed for continuous duty in data-centre aisles or wiring closets. Normal operation presents a 24.4 A maximum input current at full load, with the inverter and rectifier stages optimised for low heat output and quiet fan behaviour.

Highlights

  • 6000 VA online double-conversion protects critical loads with clean sine-wave power
  • 5400 W real capacity supports dense server racks without oversizing
  • Flexible 200–240 V input accepts global voltages from 200 V to 240 V
  • Hardwire or L6-30P input with 10 ft cord simplifies rack or tower installation
  • Four locking outlets — two L6-20R and two L6-30R — plus hardwire output enable versatile load connections

Specifications

BrandEATON
Shipping weight44.59 kg
Package size686 × 439 × 130 mm

Questions about this item

What input voltage range does the 9PX6KG2 accept and how does it affect output capacity?

The UPS supports 200V, 208V, 220V, 230V and 240V AC nominal input; output capacity remains 6000VA / 5400W across the supported range.

What rack space and mounting options does the 3U chassis require?

The unit occupies 3U of rack height and includes hardware for both rack and tower orientation.

How is the network management card installed and what step is often missed?

The Cybersecure network card ships installed; the common oversight is failing to configure its IP settings before putting the UPS into production.
