Eaton

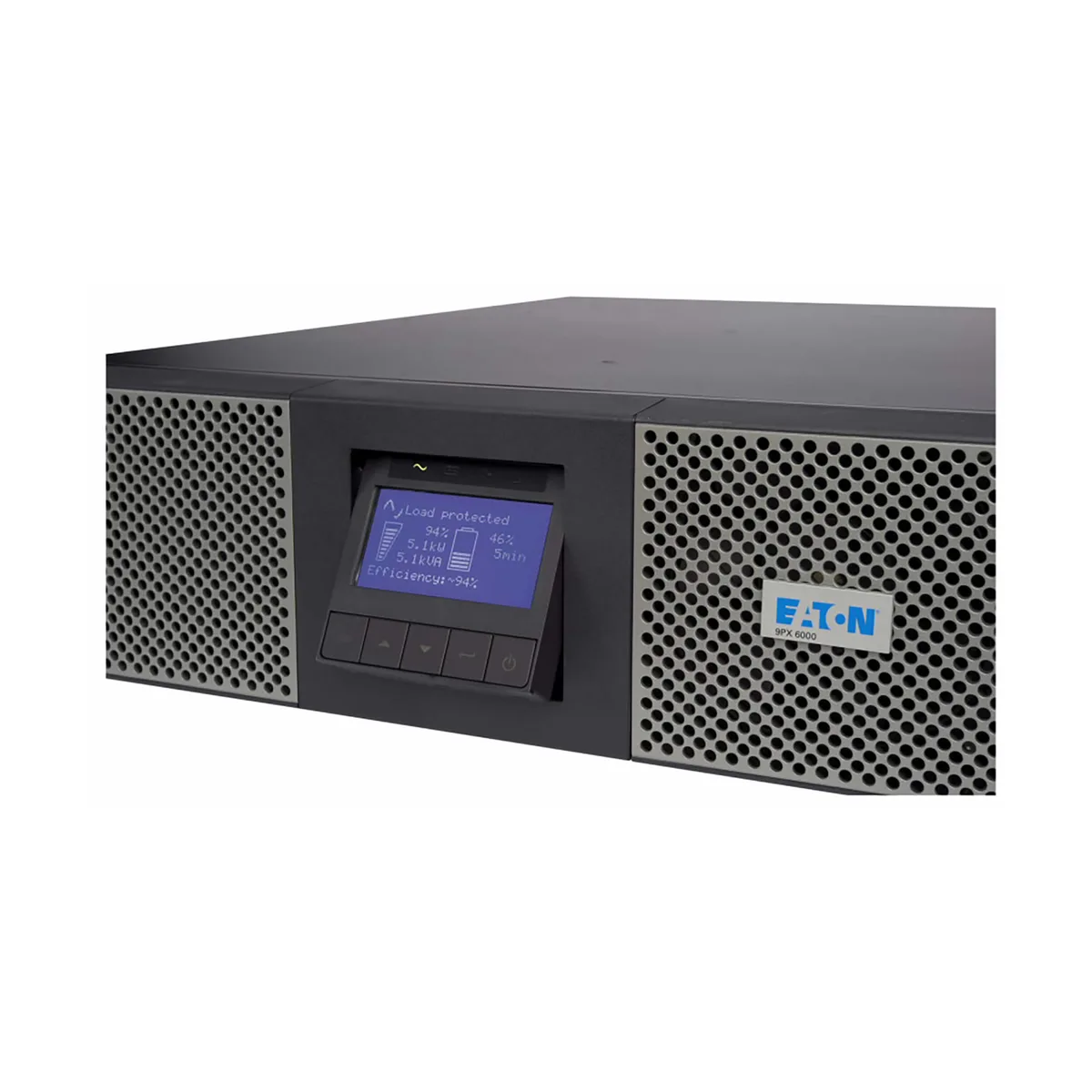

Eaton 9PX6K-10 6000 VA 5400 W 208 V UPS
Delivers 6000 VA / 5400 W battery backup at 208 V with L6-30P input, L6-20R and L6-30R outputs, plus RS-232 and USB management
- International Version208V
- Input Frequency50/60 Hz
- Input ConnectionL6-30P
- VA Rating6000 VA
- Watts5400 Watts
- Output Voltage208V
- 6000 VA / 5400 W protects critical 208 V loads
- 8 minutes runtime at half load gives orderly shutdown time
- RS-232 and USB ports enable remote monitoring and management

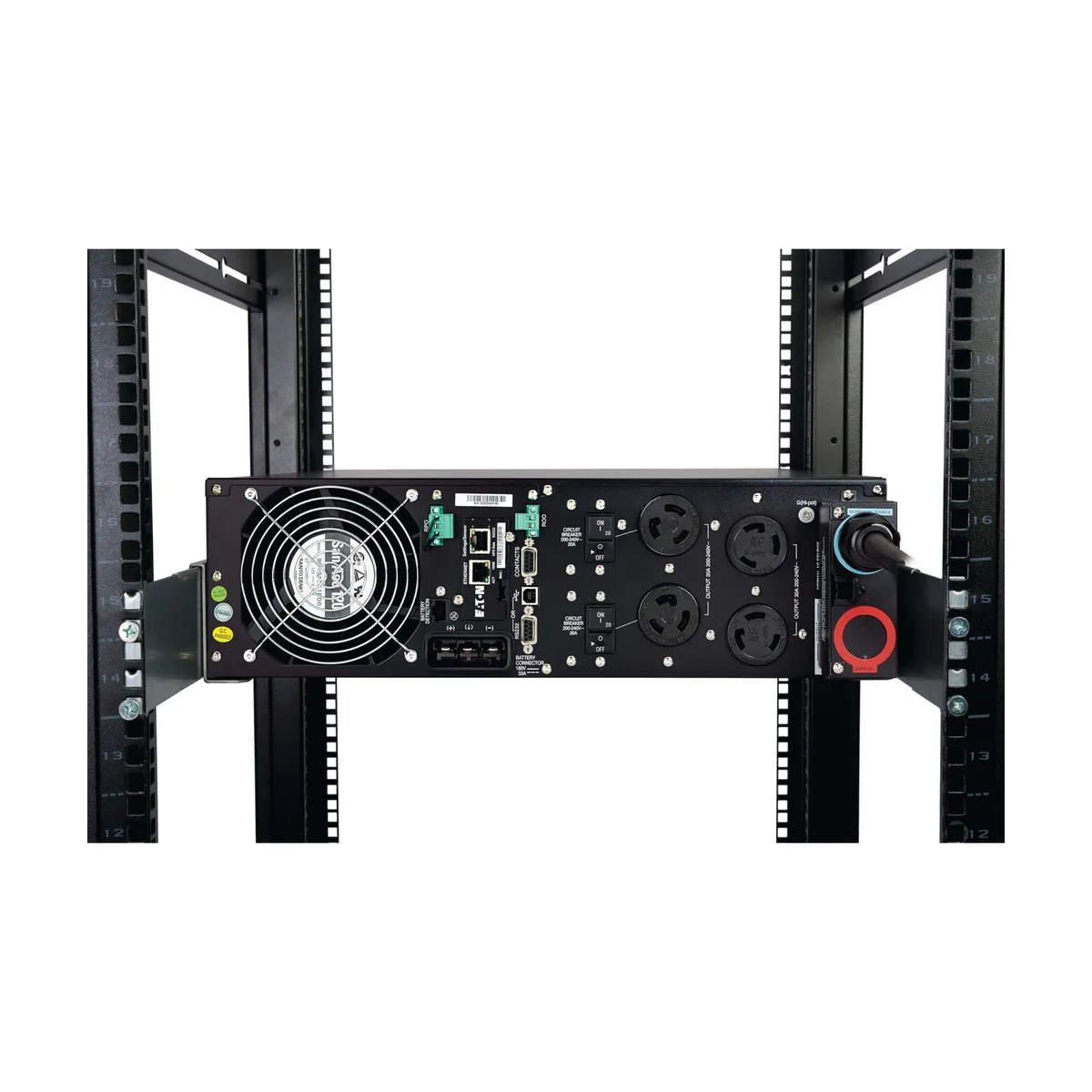

- L6-30P input with 10 ft cord simplifies rack installation
- Multiple L6-20R, L6-30R and hardwired outputs suit diverse equipment
Power capacity and target use
The Eaton 9PX6K-10 is a 6000 VA, 5400 W online double-conversion UPS designed for 208 V environments. It suits server rooms, network closets and critical infrastructure that require continuous, conditioned power. The unit accepts a L6-30P input and delivers output through two L6-20R, two L6-30R and hardwired connections.
Thermals noise and power draw
The UPS operates on 50/60 Hz input and meets CISPR22 Class A and FCC Part 15 Class A emissions limits. It carries cULus listing and complies with IEC 62040-2:2006 Cat C2. Battery runtime is 8 minutes at half load and 3 minutes at full load, giving time for orderly shutdown or generator start.
Upgrade context and when to step up
This model replaces smaller single-phase units or older three-phase systems that lack network management interfaces. The jump is worthwhile when runtime at full load must exceed a few minutes, when hardwired output is required, or when RS-232 and USB monitoring must integrate with existing management software.
Highlights
- 6000 VA / 5400 W protects critical 208 V loads
- 8 minutes runtime at half load gives orderly shutdown time
- RS-232 and USB ports enable remote monitoring and management
- L6-30P input with 10 ft cord simplifies rack installation
- Multiple L6-20R, L6-30R and hardwired outputs suit diverse equipment
Specifications
| Brand | EATON |
|---|---|
| Model | 9PX6K-10 |
| International Version | 208V |
| Input Frequency | 50/60 Hz |
| Input Connection | L6-30P |
| VA Rating | 6000 VA |
| Watts | 5400 Watts |
| Output Voltage | 208V |
| Battery Run Time | At Half Load: 8 Minutes At Full Load: 3 Minutes |
| Interface Port | RS-232, USB |
| Approvals | FCC Part 15 CE Marked CISPR22 Class A / FCC part 15 Class A IEC 62040-2:2006 Cat C2 NOM cULus Listed |
| Dimensions | 5.10" x 17.30" x 23.50" |
| Weight | 106.00 lbs. |
| Shipping weight | 56.93 kg |
| Package size | 965 × 762 × 305 mm |
Questions about this item
How do I install the Eaton 9PX6K-10 and which step is commonly missed?
Connect the L6-30P plug to a matching 30 A 208 V circuit, secure the 3U chassis in a rack, attach loads to the two L6-20R and two L6-30R outlets or the hardwired terminals, then link USB or RS-232 for monitoring; the step often missed is registering the UPS with management software so shutdown scripts activate during an outage
What maintenance or replacement will the Eaton 9PX6K-10 need later?

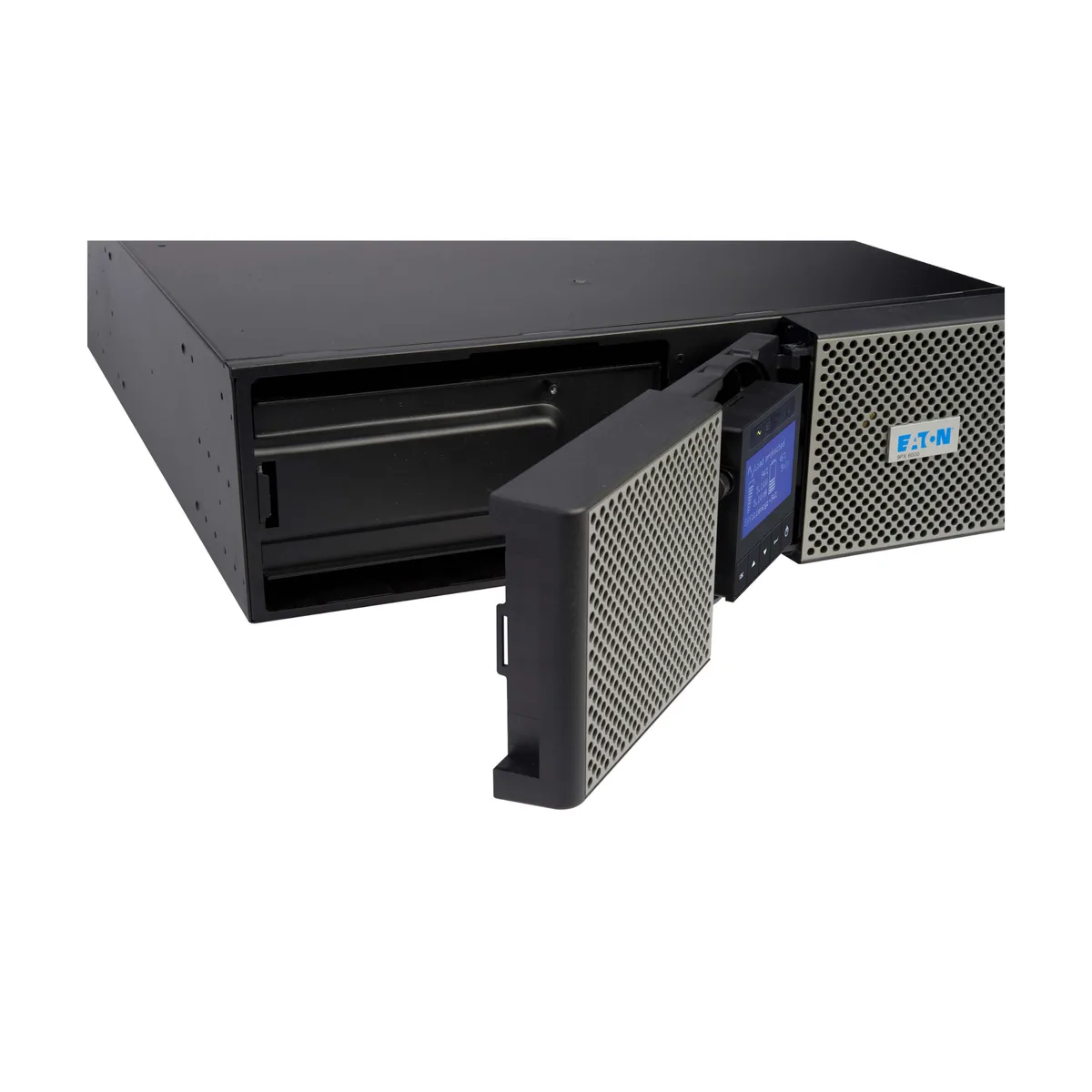

The internal battery set will require replacement after roughly three to five years; Eaton supplies hot-swappable battery modules for this 6000 VA unit so the UPS stays online while you swap them
What limit appears first on the Eaton 9PX6K-10 during sustained use?
Battery runtime is the first constraint — three minutes at the full 5400 W load and eight minutes at half load — so extended outages need external battery packs or a generator
