Eaton
Eaton 9PX3000RTN-L 3000VA 2400W 2U Lithium-ion UPS
2U rack/tower UPS delivers 3000VA/2400W with lithium-ion batteries, hot-swappable modules, included Gigabit network card and 91% efficiency
- International Version120V default (100/110/120/125V)
- Input Frequency60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz
- Input ConnectionL5-30P
- VA Rating3000VA
- Watts2400W at 100 % load for UPS only, 2700W at 100 % load for UP
- Output Voltage208V default (200/208/220/230/240V)
- 3000 VA capacity keeps critical loads running during outages
- Lithium-ion battery enables hot-swap replacement without powering down
- Gigabit network card included for remote monitoring and management
- 2U rack/tower form factor fits standard 19-inch enclosures or stands upright
- 91 percent efficiency reduces energy waste and operating heat
Rack/tower 2U UPS for 120 V environments
The Eaton 9PX3000RTN-L is a new lithium-ion battery backup rated at 3000 VA and 2400 W. It fits a 2U rack space or stands as a tower using the included pedestals. Network managers and small data-centre operators gain hot-swappable internal batteries plus optional extended battery modules for longer runtime.
L5-30P input with selectable 120 V or 208 V output
The unit accepts a single L5-30P plug and operates on 50 Hz or 60 Hz supplies across a wide frequency window. Output voltage defaults to 208 V but can be set to 200, 220, 230 or 240 V, while the input international version defaults to 120 V with 100, 110 or 125 V alternatives. Six 5-20R receptacles and one L5-30R outlet distribute power to connected loads.
2400 W continuous, 2700 W with EBMs
At 100 % load the UPS alone delivers 2400 W; adding extended battery modules raises the ceiling to 2700 W. The lithium-ion cells support hot-swap replacement without downtime. Efficiency reaches 91 % and an internal bypass maintains power during service. Sites needing more than 2700 W or a different input plug must look elsewhere.
Highlights
- 3000 VA capacity keeps critical loads running during outages
- Lithium-ion battery enables hot-swap replacement without powering down
- Gigabit network card included for remote monitoring and management
- 2U rack/tower form factor fits standard 19-inch enclosures or stands upright
- 91 percent efficiency reduces energy waste and operating heat
Specifications
| Brand | EATON |
|---|---|
| Series | 9PX UPS |
| Model | 9PX3000RTN-L |
| International Version | 120V default (100/110/120/125V) |
| Input Frequency | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz |
| Input Connection | L5-30P |
| VA Rating | 3000VA |
| Watts | 2400W at 100 % load for UPS only, 2700W at 100 % load for UPS + EBMs |
| Output Voltage | 208V default (200/208/220/230/240V) |
| Battery Type | Lithium Ion |
| Battery Replaceable | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Interface Port | Communication: RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included Expansion Slots: (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M2) included |
| Approvals | cULus Listed NOM |
| Rackmountable | Yes |
| Features | Form Factor: Rack/tower Rack Size: 2U Color: Black/silver Efficiency: 91% Internal Bypass: Yes |

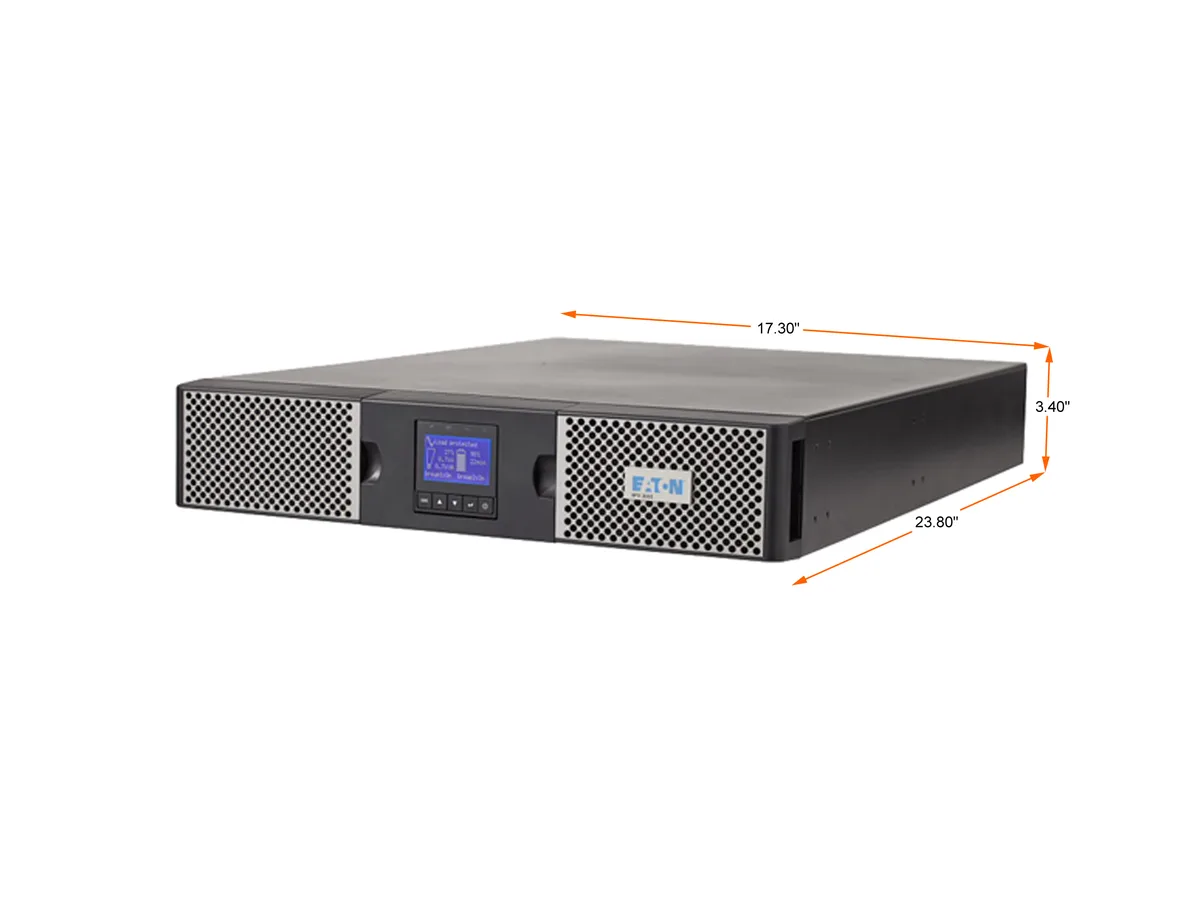

| Dimensions | 3.40" x 17.30" x 23.80" |
| Weight | 53.70 lbs. |
| Package Contents | UPS Quick start guide Safety instructions USB communciation cable RS-232 serial communication cable 4-post rail for 19-inch enclosures Software leaflet 2 pedestals for tower poition Gigabit Network Card (NETWORK-M2) |
| Shipping weight | 24.36 kg |
| Package size | 635 × 508 × 127 mm |
Questions about this item
How much actual equipment load does the 2400W rating support?
The unit delivers 2400W at full load on its own; adding extended battery modules raises the continuous capacity to 2700W.
What does the included Gigabit Network Card plug into and what management does it enable?
It occupies the single Mini-Slot expansion port and provides web, SNMP and email monitoring of the UPS over the network.
How much rack height does the 2U chassis consume and what rails are supplied?
It occupies 2U of a 19-inch rack and ships with a 4-post rail kit for standard enclosures.
