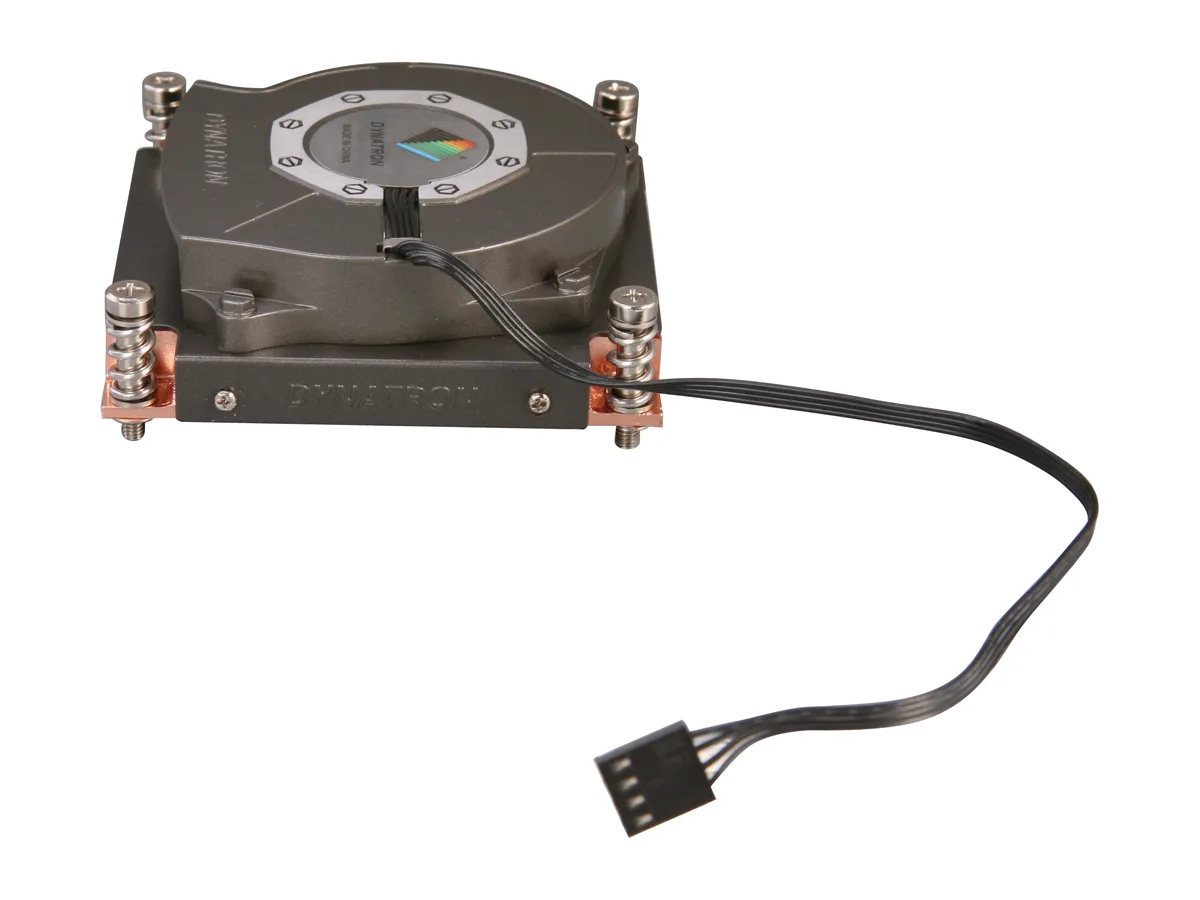

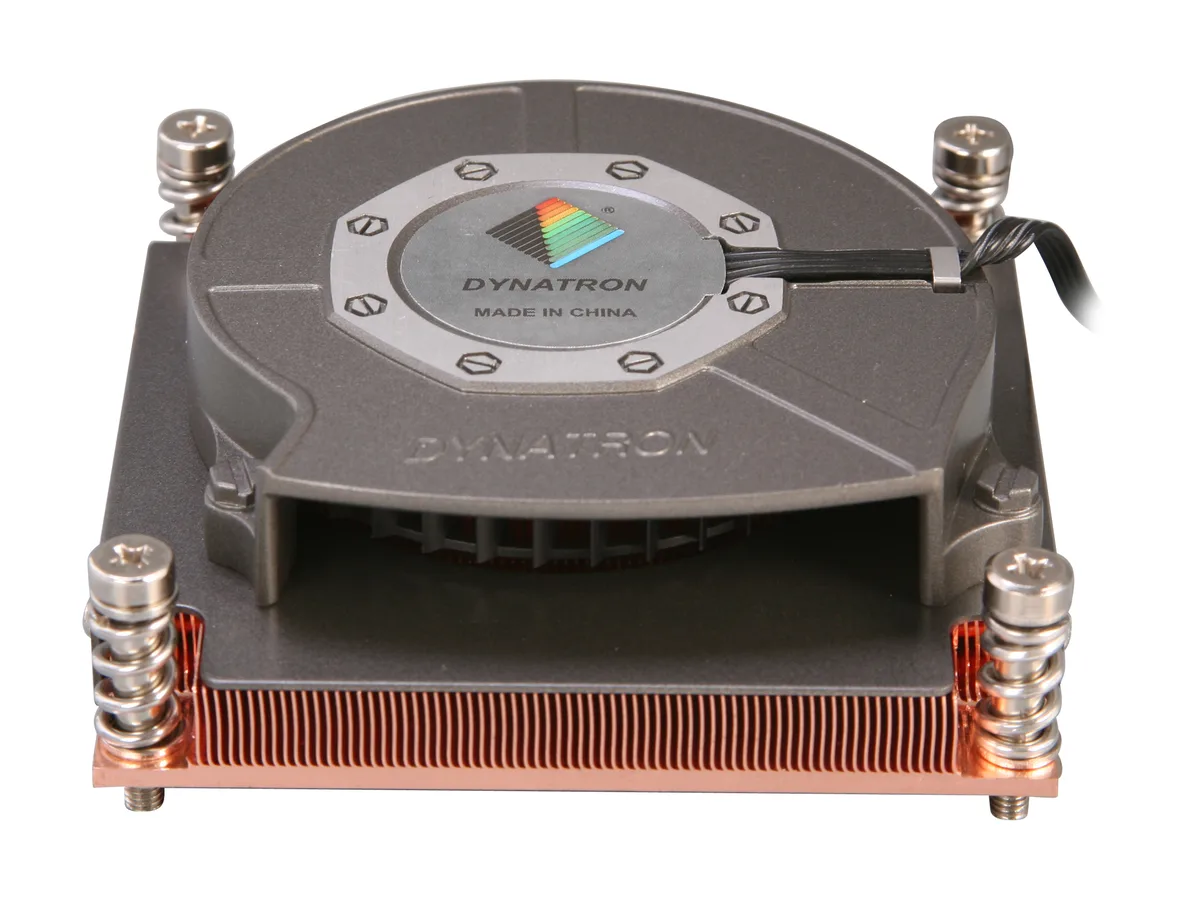

Black 80mm CPU cooler with copper skived heatsink and 4-pin fan

Dynatron

Dynatron R18 80mm 2 Ball CPU cooler socket 2011 1U

SKU CH-CNB7-08F80 MPN R18

An 80 mm dual-ball-bearing fan on a copper skived-fin heatsink cools socket 2011 CPUs up to 95 W in 1U servers

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size80mm
  • Bearing Type2 Ball
  • RPMAt Duty Cycle 20%: 1000 RPM, At Duty Cycle 50%: 3500 RPM, At
  • Air FlowAt Duty Cycle 20%: 6.5 CFM, At Duty Cycle 50%: 11.2 CFM, At
  • Low noise at light load with 21.5 dBA at 20% duty cycle
  • High airflow when needed reaching 19.1 CFM at full speed
  • Durable dual-ball bearing rated for continuous server operation
  • Compact 1U height fits dense rack enclosures
  • Copper skived-fin heatsink handles CPUs up to 95 W

1U Server CPU Cooler for Socket 2011

The Dynatron R18 is a low-profile air cooler built for 1U rackmount servers using Intel Sandy Bridge EP/EX processors on socket 2011. It combines a copper heatsink with skived fins and an 80 mm dual-ball-bearing fan mounted vertically to fit the tight vertical clearance of 1U chassis. The unit weighs 480 g and ships with Shin-Etsu G751 thermal compound pre-applied.

4-Pin PWM Control and Duty-Cycle Limits

Speed, airflow and noise are governed by a 4-pin PWM connector operating at 12 V. At 20 % duty cycle the fan runs at 1000 RPM delivering 6.5 CFM at 21.5 dBA; at 50 % it reaches 3500 RPM for 11.2 CFM at 43.0 dBA; at 100 % it spins to 6000 RPM producing 19.1 CFM at 55.8 dBA. Corresponding power draw rises from .6 W through 3.84 W to 14.4 W, while static pressure climbs from 2.27 mm-H2O to 18.56 mm-H2O and 54.5 mm-H2O across the same steps.

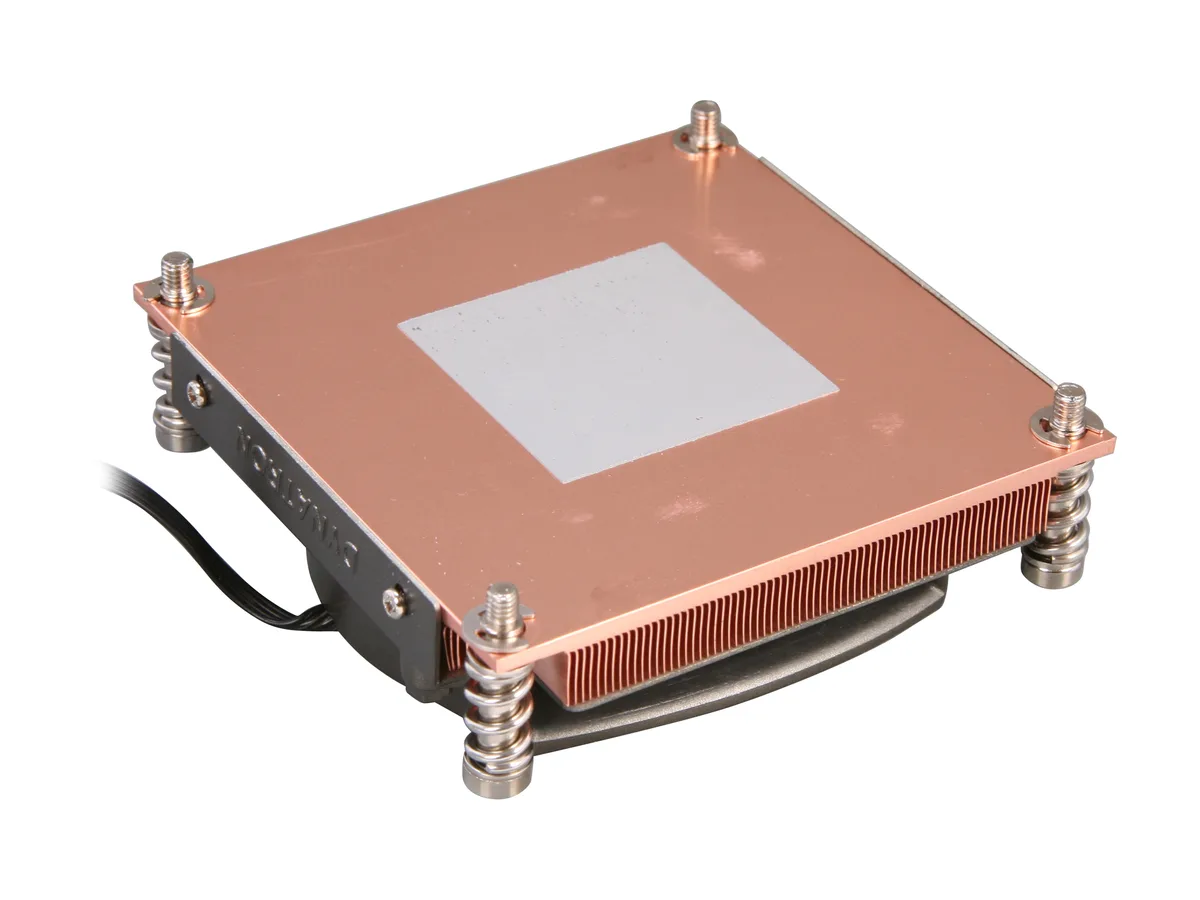

Copper Skived-Fin Heatsink and Vertical Fan Mount

The heatsink uses copper skived fins aligned parallel to system airflow, a construction that maximises fin density in the 15 mm fan depth. Vertical mounting directs air straight through the fin stack toward the chassis exhaust, which suits front-to-back server airflow but does not suit tower cases with top-mounted exhaust. The cooler is rated for CPUs up to 95 W; builders needing higher thermal capacity or a backplate for board-level mounting must look elsewhere.

Highlights

  • Low noise at light load with 21.5 dBA at 20% duty cycle
  • High airflow when needed reaching 19.1 CFM at full speed
  • Durable dual-ball bearing rated for continuous server operation
  • Compact 1U height fits dense rack enclosures
  • Copper skived-fin heatsink handles CPUs up to 95 W

Specifications

BrandDynatron
ModelR18
ColorBlack
TypeFan & Heatsinks
Fan Size80mm
Bearing Type2 Ball
RPMAt Duty Cycle 20%: 1000 RPM, At Duty Cycle 50%: 3500 RPM, At Duty Cycle 100%: 6000 RPM
Air FlowAt Duty Cycle 20%: 6.5 CFM, At Duty Cycle 50%: 11.2 CFM, At Duty Cycle 100%: 19.1 CFM
Noise LevelAt Duty Cycle 20%: 21.5 dBA, At Duty Cycle 50%: 43.0 dBA, At Duty Cycle 100%: 55.8 dBA
Power Connector4 Pin
Heatsink MaterialCopper Heatsink with Skiving Fins
Fan Mounting Types to HeatsinkVertical
Fan Dimensions80 x 80 x 15 mm
Weight480g
FeaturesIntel Sandy Bridge EP/EX Processors for socket 2011 1U Server
Solution: 1U Solution
Rated Voltage: 12 V
Power:
At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 14.4 W
Air Pressure:
At Duty Cycle 20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 54.5 mm-H2O
*Note:
Support CPU Power up to 95 Watts
Pre-print thermal compound Shin-Etsu G751
Fin direction paralleled to system airflow
RoHS Compliance
Backplate is not included.
Shipping weight0.51 kg
Package size137 × 117 × 51 mm

Questions about this item

How does the 95 W TDP rating translate to actual cooling performance in a 1U chassis?

The copper skived-fin heatsink and 80 mm dual-ball fan move 6.5 CFM at 21.5 dBA (20 % duty), 11.2 CFM at 43 dBA (50 %) or 19.1 CFM at 55.8 dBA (100 %), with static pressure up to 54.5 mm-H₂O, keeping Socket 2011 CPUs within thermal limits.

What does the 4-pin PWM connector control on this cooler?

The 4-pin connector feeds 12 V and PWM duty-cycle signals; at 20 % duty the fan runs at 1000 RPM drawing 0.6 W, at 50 % it reaches 3500 RPM and 3.84 W, and at 100 % it spins 6000 RPM consuming 14.4 W.
