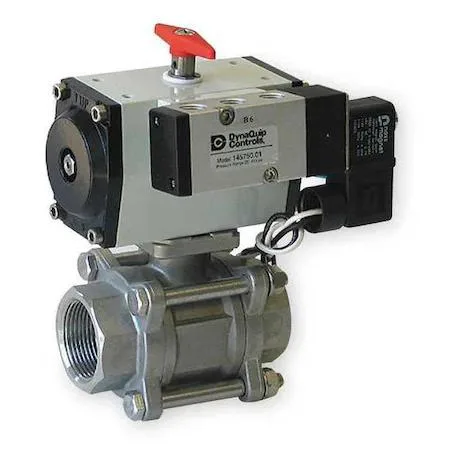

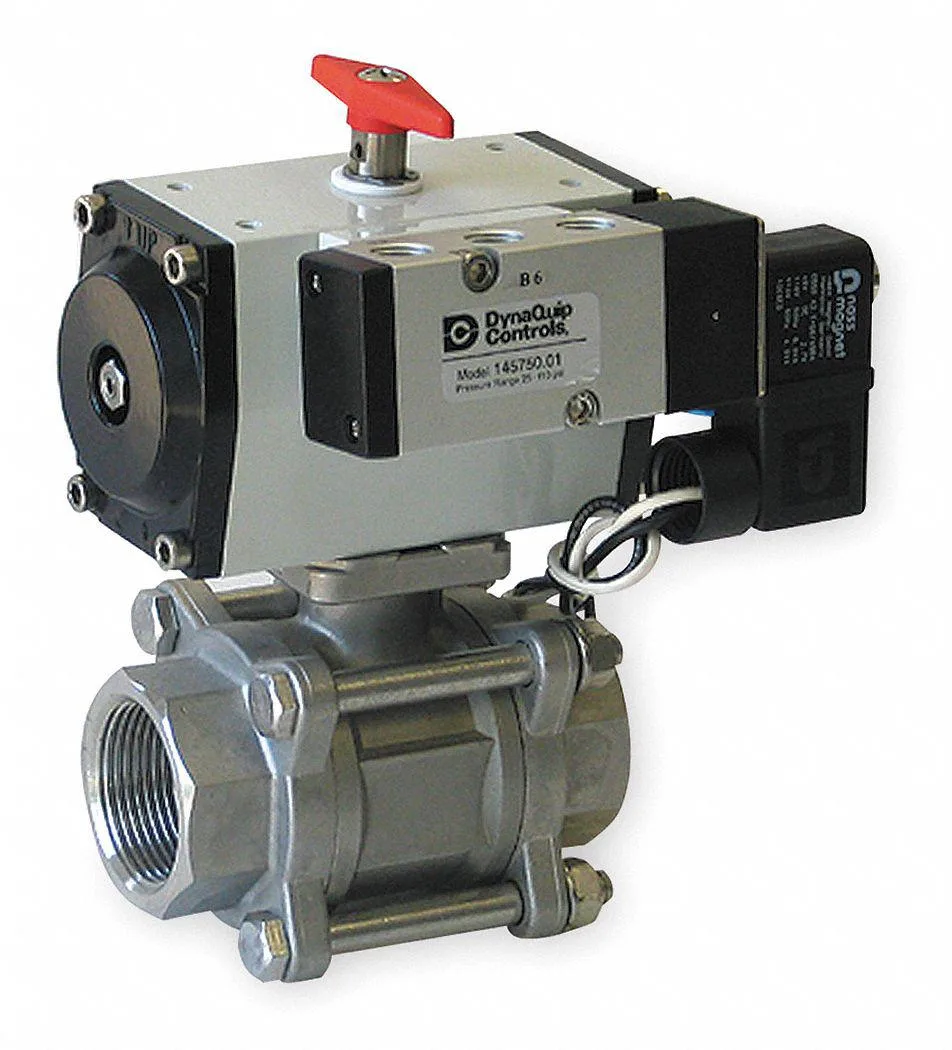

Stainless steel pneumatic ball valve with 115V AC solenoid actuator

Dynaquip Controls

Dynaquip Controls PVS26AJD03A 115V AC 316 Stainless Steel Pneumatic Ball Valve Trap

SKU CH-B7XE-5Q4E6 MPN PVS26AJD03A

Pneumatically actuated 316 stainless steel ball valve with 115 V AC pilot solenoid, 1 000 psi operating pressure and 150 psi steam rating

  • TypeDrain Components
  • MaterialHAWA
  • Pneumatically actuated two-way ball valve for automated flow control
  • 316 stainless steel ball and body resist corrosion in harsh environments
  • 115V AC pilot solenoid included for direct electrical actuation
  • Full port design allows unrestricted flow through the valve
  • Rated for 1000 psi operating pressure and 150 psi steam pressure

Pneumatic Ball Valve Trap

The Dynaquip Controls PVS26AJD03A is a pneumatically actuated two-way ball valve built from 316 stainless steel. It operates on 115V AC power via an included pilot solenoid and features a straight body style with full port design. The unit handles a maximum operating pressure of 1,000 psi and a steam pressure rating of 150 psi.

Process Control Applications

This valve suits systems requiring air-to-air actuator operation with a fail-last safe position and configurable normally closed or normally open states. It is not intended for buyers needing electric actuation, hydraulic operation, or valves rated beyond the stated pressure limits.

Stainless Steel Integration

The 316 stainless steel construction resists corrosion in demanding fluid handling environments. The 115V AC solenoid simplifies electrical integration into existing control panels. The full port design minimizes flow restriction through the valve body.

Highlights

  • Pneumatically actuated two-way ball valve for automated flow control
  • 316 stainless steel ball and body resist corrosion in harsh environments
  • 115V AC pilot solenoid included for direct electrical actuation
  • Full port design allows unrestricted flow through the valve
  • Rated for 1000 psi operating pressure and 150 psi steam pressure

Specifications

TypeDrain Components
MaterialHAWA
BrandDynaquip Controls
ModelPVS26AJD03A

Questions about this item

What compressed-air supply is required to operate the pneumatic actuator?

The actuator is air-to-air operated and includes a 115V AC pilot solenoid; a clean, dry compressed-air line at the valve's rated pressure is needed for actuation.

Can the 1 1/4 in FNPT stainless steel valve body be threaded into existing carbon-steel piping?

The body is 316 stainless steel with FNPT threads; direct threading into carbon steel is possible but dielectric unions or thread sealant rated for dissimilar metals should be used to prevent galvanic corrosion.

How can I verify the valve cycles correctly after installation?

Apply 115V AC to the pilot solenoid and observe the ball valve move from its normally closed position to open and back; the full-port design gives unrestricted flow when open.
