Stainless steel pneumatic ball valve with actuator and solenoid

Dynaquip Controls

Dynaquip Controls PVS25AJD02A trap

SKU CH-4YVN-9CWK4 MPN PVS25AJD02A

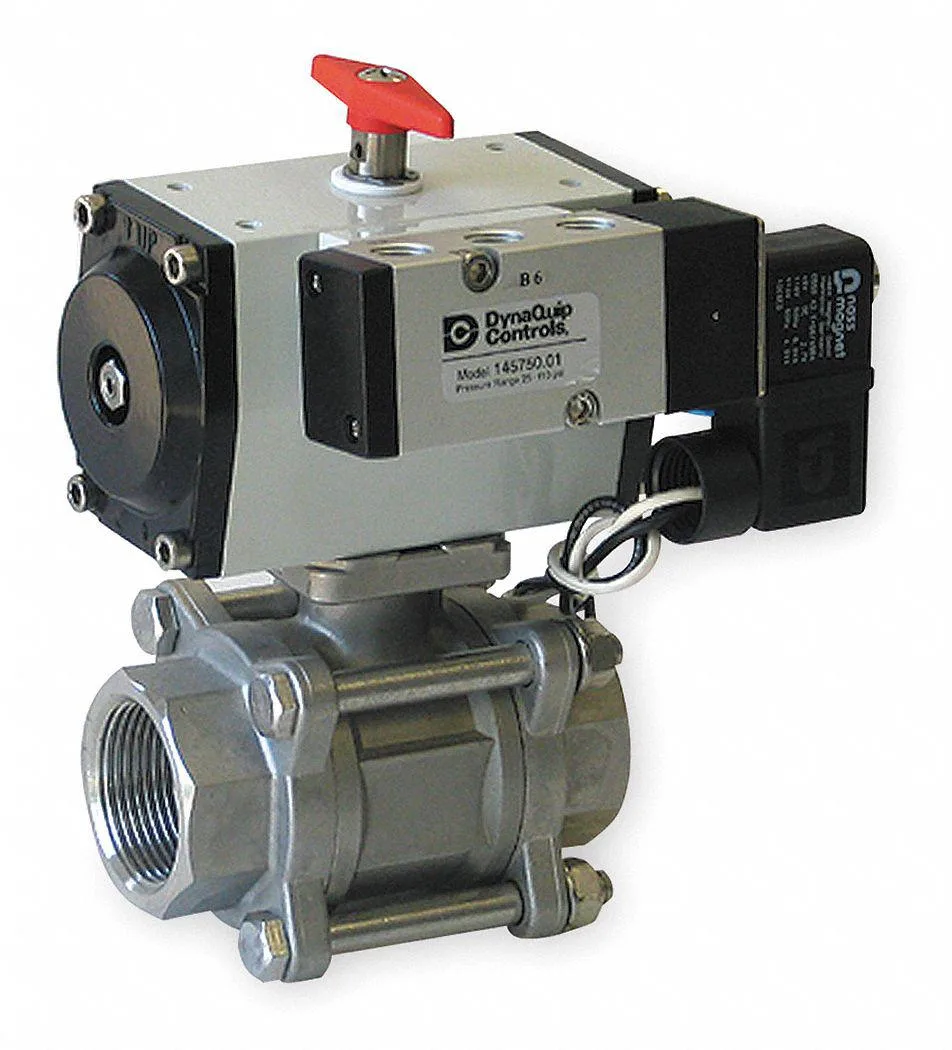

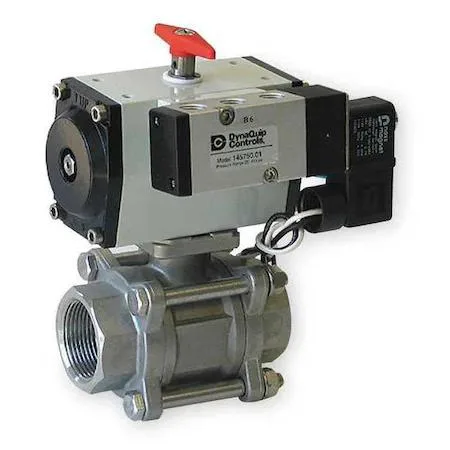

Pneumatically actuated stainless steel ball valve with full port, 1000 psi rating and 115V AC pilot solenoid

  • TypeDrain Components
  • MaterialHAWA
  • Pneumatically actuated two-way ball valve for automated flow control
  • 316 stainless steel ball and body resist corrosion in harsh environments
  • Full-port design maintains unrestricted flow through 1-inch FNPT connections
  • 115V AC pilot solenoid included for direct electrical integration
  • Rated to 1000 psi operating pressure and 150 psi steam service

Pneumatic Ball Valve 1 in FNPT

This pneumatically actuated two-way ball valve uses a 1 in FNPT connection and a 316 stainless steel ball. The valve body is stainless steel with a full-port design for unrestricted flow. It is suited for process lines that require air-to-air actuation and a 115V AC pilot solenoid.

Pilot Solenoid and Fail-Last Position

The included 115V AC pilot solenoid controls the air-to-air actuator, allowing the valve to shift between normally closed and normally open states. A fail-last position means the valve holds its current state if the air supply is lost. This behaviour supports processes that must not move to a default position during a pressure failure.

Pressure Ratings and Installation Check

Verify that the system operating pressure does not exceed 1,000 psi and that steam pressure stays at or below 150 psi. Confirm the 1 in FNPT thread matches the existing piping and that a 115V AC supply is available for the solenoid. The straight body style requires inline mounting with adequate clearance for actuator removal.

Highlights

  • Pneumatically actuated two-way ball valve for automated flow control
  • 316 stainless steel ball and body resist corrosion in harsh environments
  • Full-port design maintains unrestricted flow through 1-inch FNPT connections
  • 115V AC pilot solenoid included for direct electrical integration
  • Rated to 1000 psi operating pressure and 150 psi steam service

Specifications

TypeDrain Components
MaterialHAWA
BrandDynaquip Controls
ModelPVS25AJD02A

Questions about this item

How often should the 316 stainless steel ball and seals be inspected or replaced under normal pneumatic service?

The 316 stainless steel ball resists corrosion, so seal inspection intervals depend on cycle count and media cleanliness rather than a fixed schedule.

Will the 1,000 psi operating pressure limit or the 150 psi steam limit be reached first in continuous high-cycle operation?

The 150 psi steam rating is the lower ceiling; sustained steam service will hit that limit well before the 1,000 psi pneumatic rating.

Does the included 115V AC pilot solenoid generate noticeable heat or noise during all-day actuation?

The 115V AC pilot solenoid draws modest power; heat and audible click are minimal during continuous duty cycles.
