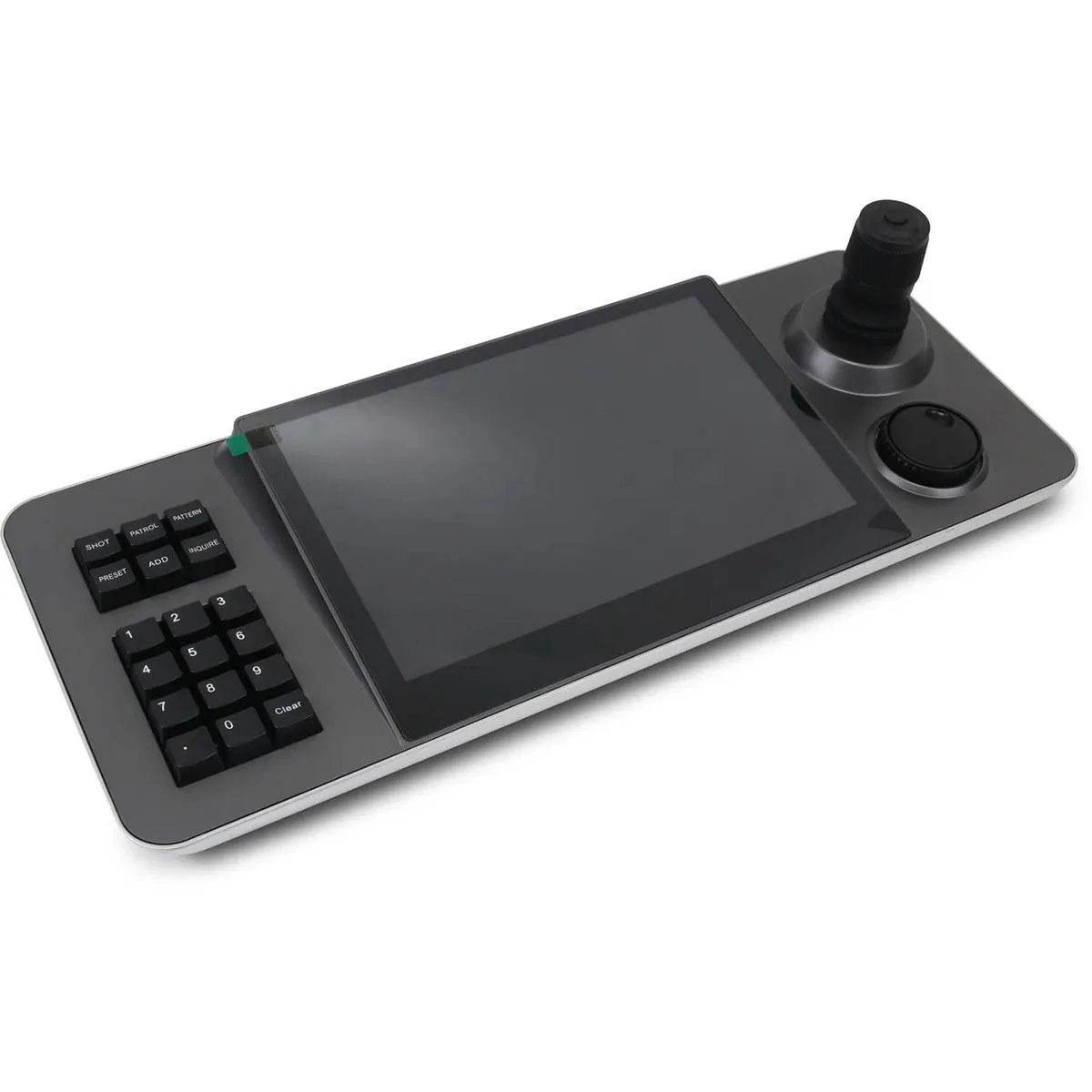

Black desktop PTZ controller with 10.1 inch touchscreen and 4D joystick

DVDO, Inc.

DVDO, Inc. PTZ Camera Controller 10.1 Touch Joystick Black

SKU CH-30XD-8GS6Q

A 10.1-inch touchscreen PTZ controller manages up to 1,024 cameras via ONVIF 2.4, Visca and Pelco D/P protocols with 4K HDMI output and 4D joystick control

  • Precise 4D joystick with touchscreen for smooth PTZ camera operation
  • HDMI output at 4K@30fps plus H.264/H.265 decoding for high-resolution monitoring
  • Control up to 1024 cameras via Onvif 2.4, Visca and Pelco D/P protocols
  • 1-inch capacitive touchscreen provides real-time preview and external HDMI display projection

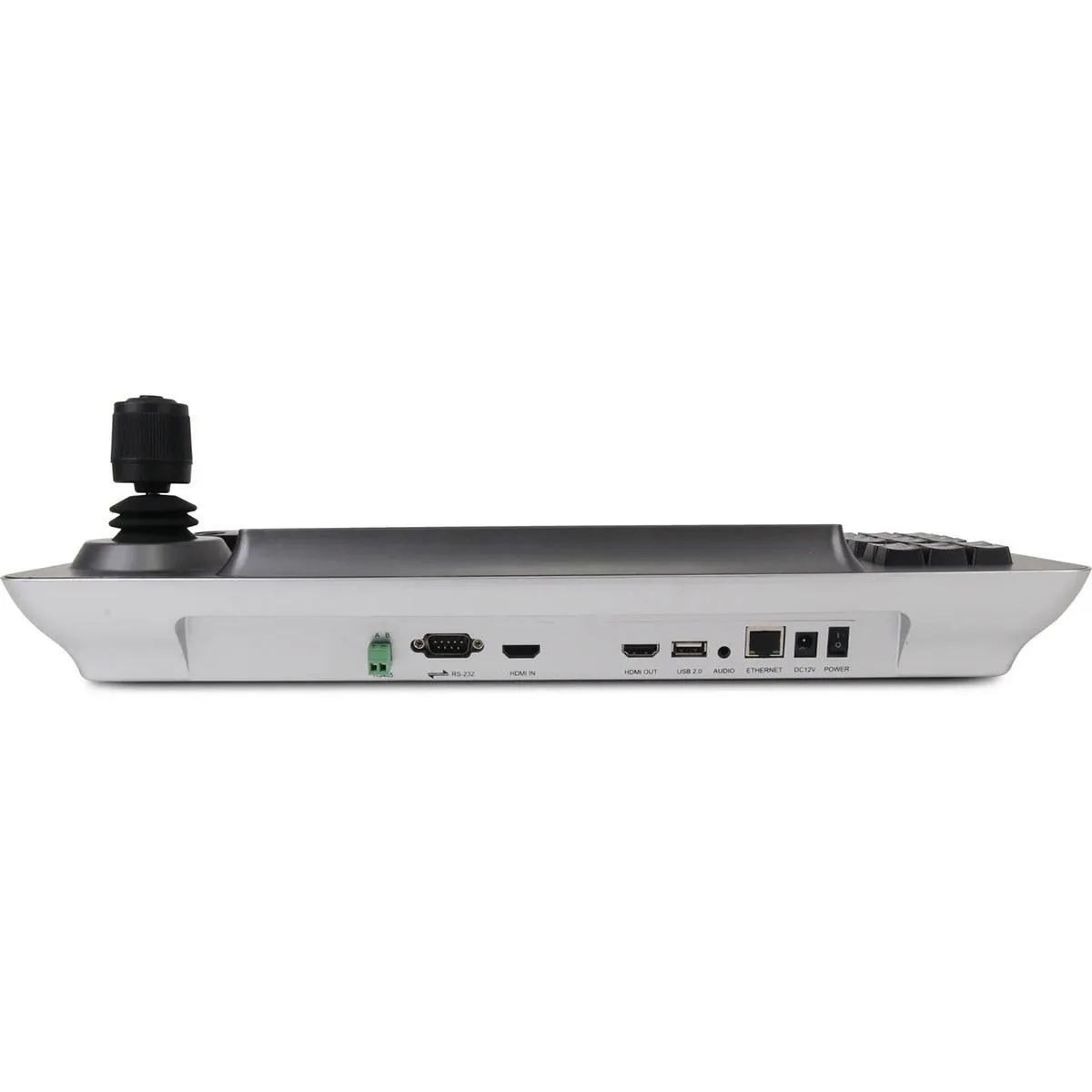

  • Versatile connectivity with RJ45, RS485, RS232, HDMI and USB 2.0 ports

Precise 4D Joystick Control

The DVDO PTZ camera controller uses a 10.1-inch capacitive touchscreen paired with a four-dimensional joystick for exact pan-tilt positioning. Operators can preview live feeds directly on the screen or mirror the output to an external display through the HDMI port. It suits security teams managing multiple network cameras in schools, hospitals or industrial sites. The interface is designed for quick target acquisition across large installations.

Sustained Multi-Channel Decoding

Under continuous operation the unit decodes a single H.264 or H.265 stream at 1080p and 60 frames per second. It also maintains four simultaneous 720p streams at 30 frames per second without dropping frames. The HDMI output delivers a 4K signal at 30 frames per second for high-resolution monitoring walls. This steady throughput keeps multi-camera views stable during extended shifts.

Protocol and Port Limits

The controller manages up to 1,024 cameras using Onvif 2.4, Visca and Pelco D/P protocols over the local network. Physical connectivity is restricted to RJ45, RS485, RS232, HDMI and USB 2.0 ports. No wireless or fibre interfaces are present, so every device must be wired into the existing infrastructure. Buyers needing wireless links or more than 1,024 endpoints must look elsewhere.

Highlights

  • Precise 4D joystick with touchscreen for smooth PTZ camera operation
  • HDMI output at 4K@30fps plus H.264/H.265 decoding for high-resolution monitoring
  • Control up to 1024 cameras via Onvif 2.4, Visca and Pelco D/P protocols
  • 1-inch capacitive touchscreen provides real-time preview and external HDMI display projection
  • Versatile connectivity with RJ45, RS485, RS232, HDMI and USB 2.0 ports

Specifications

No published specifications for this item yet.

Questions about this item

How much heat or noise does the controller produce when running continuously?

The unit is a compact desktop controller with no moving parts beyond the joystick; typical power draw is low and it operates silently without active cooling.

Which cables or network gear must I already have to connect this controller to my cameras?

You need an Ethernet cable for the RJ45 port, and optionally RS-485 or RS-232 cables for legacy PTZ links; cameras must be on the same local network.

Will the 10.1-inch touchscreen and 4D joystick control older Pelco D/P or VISCA cameras alongside ONVIF 2.4 models?

Yes — the controller speaks ONVIF 2.4, VISCA and Pelco D/P simultaneously, so mixed fleets of up to 1,024 cameras work from one interface.
