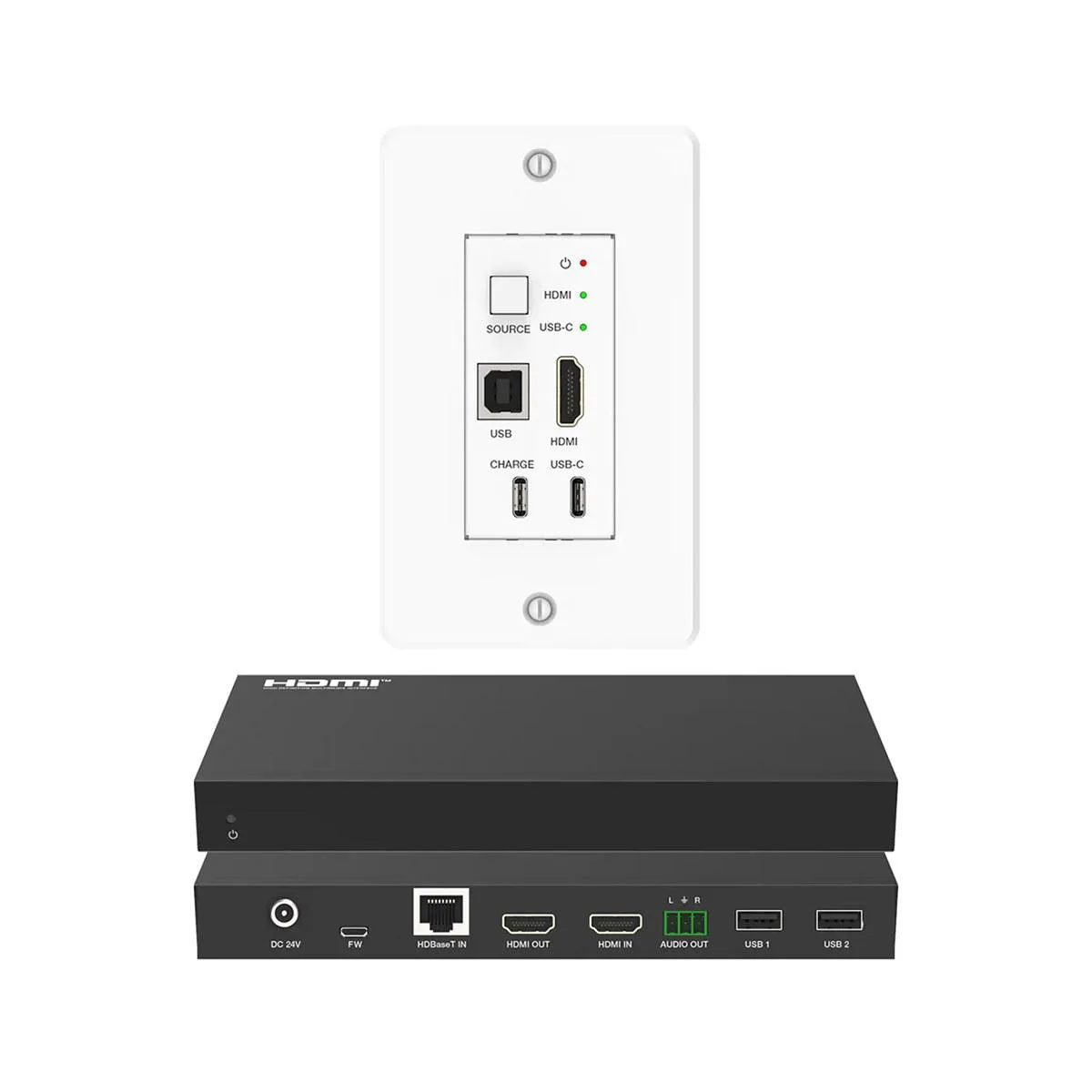

White Decora-style wall plate with HDMI and USB-C ports, metal finish

DVDO, Inc.

DVDO, Inc. 4K HDMI USB-C Wall Plate Extender HDBaseT KVM Cable

SKU CH-YY3S-N6B84

A 4K HDMI and USB-C wall-plate extender transmits 4096×2160@60 Hz up to 131 ft or 1080p up to 230 ft over CAT6/6a/7 cable

  • 4K@60Hz 4:4:4 clarity with 18 Gbps bandwidth
  • Transmit 1080p up to 230 ft or 4K up to 131 ft over CAT6/6a/7
  • HDMI and USB-C inputs on transmitter; HDMI and USB outputs on receiver
  • US one-gang Decora wall-plate fits standard openings
  • Remotely powered by receiver via PoE — no local adapter needed

Professional Wall Plate Extender

This DVDO wall plate combines a 2x1 switcher with an HDBaseT transmitter in a US one-gang Decora enclosure. It accepts both HDMI and USB-C sources, making it suitable for meeting rooms and classrooms that need a clean, fixed installation for laptops, tablets or smartphones.

Single-Cable Infrastructure

The transmitter is remotely powered by the receiver over the same CAT6, CAT6a or CAT7 cable that carries video and USB, so no local power supply is needed at the wall. This reduces cabling behind the display and frees up AC outlets for other equipment.

Consistent 4K Delivery

The link maintains 4096x2160 resolution at 60 Hz with 18 Gbps bandwidth up to 131 feet, and 1080p signals up to 230 feet without degradation. Built-in heat dissipation in the metal housing keeps performance stable during long presentations or continuous operation.

Highlights

  • 4K@60Hz 4:4:4 clarity with 18 Gbps bandwidth
  • Transmit 1080p up to 230 ft or 4K up to 131 ft over CAT6/6a/7
  • HDMI and USB-C inputs on transmitter; HDMI and USB outputs on receiver
  • US one-gang Decora wall-plate fits standard openings
  • Remotely powered by receiver via PoE — no local adapter needed

Specifications

No published specifications for this item yet.

Questions about this item

How far can I run 4K 60 Hz video over CAT6 before the signal degrades?

The extender delivers 4096×2160 at 60 Hz up to 131 feet over CAT6, CAT6a or CAT7 cable.

Does the metal wall-plate enclosure stay cool and quiet during all-day operation?

The sturdy metal housing provides efficient heat dissipation with no moving parts, so it runs silently and stays cool under continuous use.

Which cables and power source do I need on hand before installing this extender?

You need CAT6/6a/7 cable between the plates and an HDBaseT-compatible receiver that supplies PoE; the transmitter draws power remotely so no local outlet is required.
