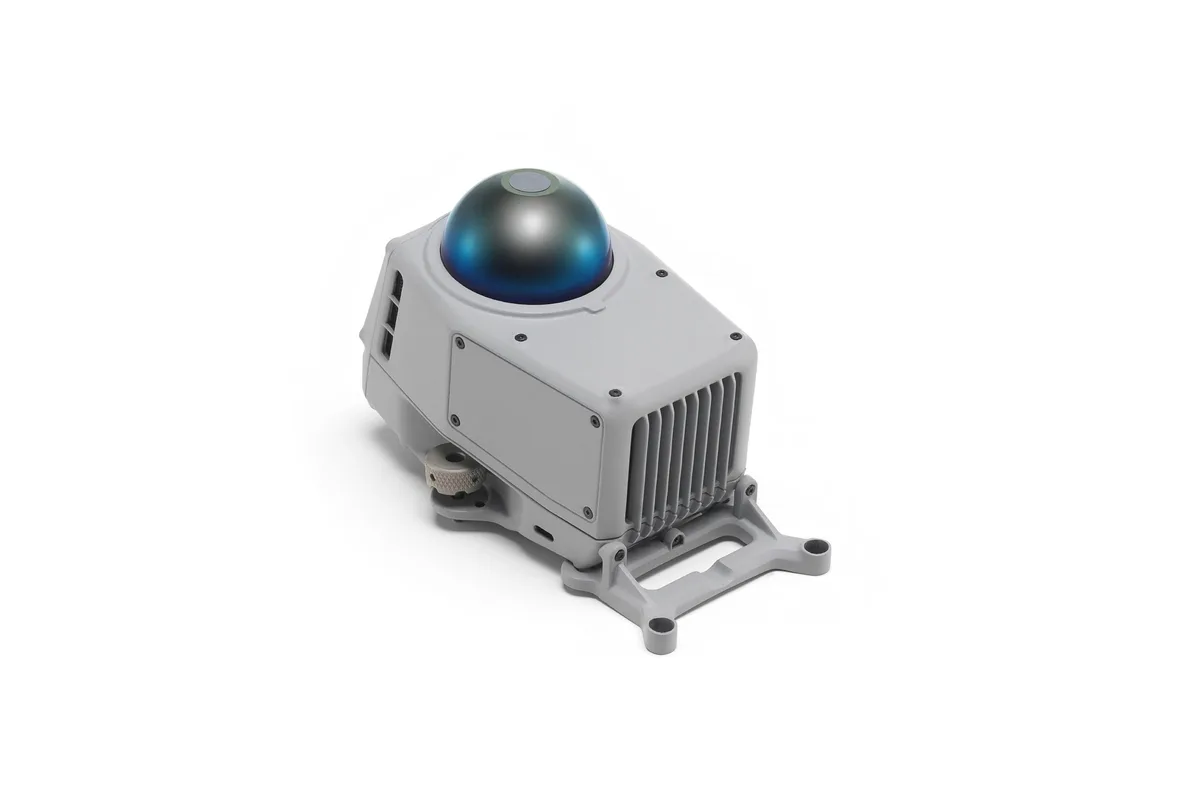

Compact gray radar module with angular housing and mounting bracket, 103.3 by 64 by 85.8 mm, 235 g

DJI

DJI Mid-360S Laser Obstacle Avoidance Radar Drone Accessory

SKU CH-CKZA-705SE MPN Mid-360S

Laser and millimetre-wave radar module adds 360° obstacle avoidance to Matrice 4 series drones, weighs 235 g and includes mounting hardware

  • ColorGray
  • TypeAvoid Radar
  • CompatibilityMatrice4T/4E/4D/4TD
  • SpecificationsItem
  • FeaturesLaser Detection Avoidance
  • Package Content1. Evasive radar ×1 2. H2.5 Internal Hex wrench ×1 3. H1.5 I

Model Mid-360S Laser Rangefinder

  • 360° laser and millimeter-wave sensing detects obstacles in all directions
  • IP55 protection rating withstands dust and rain during industrial flights
  • 235 g lightweight module adds obstacle avoidance without reducing payload capacity
  • Compatible with Matrice 4T, 4E, 4D and 4TD airframes for fleet standardisation
  • Includes hex wrenches, transfer bracket and 12 reflective stickers for immediate installation

Product Identity

The DJI Mid-360S is a laser obstacle avoidance radar accessory designed for Matrice4 series drones including the 4T, 4E, 4D and 4TD models. It combines circular sweep laser radar with millimeter radar technology to provide precise barrier detection during flight operations. Professional operators conducting inspections or mapping missions in complex environments will benefit from the enhanced safety system.

Operational Limits

The radar achieves IP55 protection when used with the Matrice4D series and operates between -20°C and 50°C. The system cannot actively avoid rapidly moving objects such as windmills, tower cranes or flying birds. Performance becomes limited in environments with poor GNSS signals or adverse weather conditions. The combined laser and millimeter radar perception system faces constraints when detecting certain dynamic obstacles.

Pre-Installation Checks

Verify that your aircraft model matches the compatible Matrice4 series before ordering. Ensure you can power off the drone completely before installation as required by safety procedures. Confirm access to the DJI app for mandatory firmware updates and activation after mounting. The package includes H1.5 and H2.5 internal hex wrenches plus a transfer bracket and twelve reflective stickers for the installation process.

Highlights

  • 360° laser and millimeter-wave sensing detects obstacles in all directions
  • IP55 protection rating withstands dust and rain during industrial flights
  • 235 g lightweight module adds obstacle avoidance without reducing payload capacity
  • Compatible with Matrice 4T, 4E, 4D and 4TD airframes for fleet standardisation
  • Includes hex wrenches, transfer bracket and 12 reflective stickers for immediate installation

Specifications

BrandDJI
ModelDJI Matrix 4 Evasive Radar
ColorGray
TypeAvoid Radar
CompatibilityMatrice4T/4E/4D/4TD
SpecificationsItem
FeaturesLaser Detection Avoidance
Package Content1. Evasive radar ×1
2. H2.5 Internal Hex wrench ×1
3. H1.5 Internal Hex wrench ×1
4. Transfer bracket (Matrix 4 series) ×1
5. Reflective Sticker (for airport use) ×12
Dimensions103.3*64*85.8mm
Weight235g

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I choose the correct mounting bracket for my Matrice 4 series drone?

The package includes a single transfer bracket made for the Matrice 4 series; use the supplied H2.5 and H1.5 internal hex wrenches to secure it as instructed.

What does the combined laser and millimeter-wave radar actually detect in flight?

It performs a circular sweep to sense obstacles such as power lines and network cables in complex environments, though rapidly moving objects like birds or windmills may not be avoided.

What protection rating does the radar have and what does it cover?

The unit is rated IP55 when used with the Matrice 4D series, meaning it resists dust ingress and low-pressure water jets during operation.
