Rectangular terminal block with eight screw terminals and screw cover, 128 by 43 by 23 mm

DiySecurityCameraWorld

DiySecurityCameraWorld DSC-TB01 8 Way Terminal Block Bus Bar surveillance accessory

SKU CH-GP0P-JB6TR

Splits one power input into eight outputs for 12 V DC or 24 V AC cameras, with screw covers and 18 AWG leads

  • TypeTerminal Block Bus Bar
  • Splits one power adapter into eight outputs

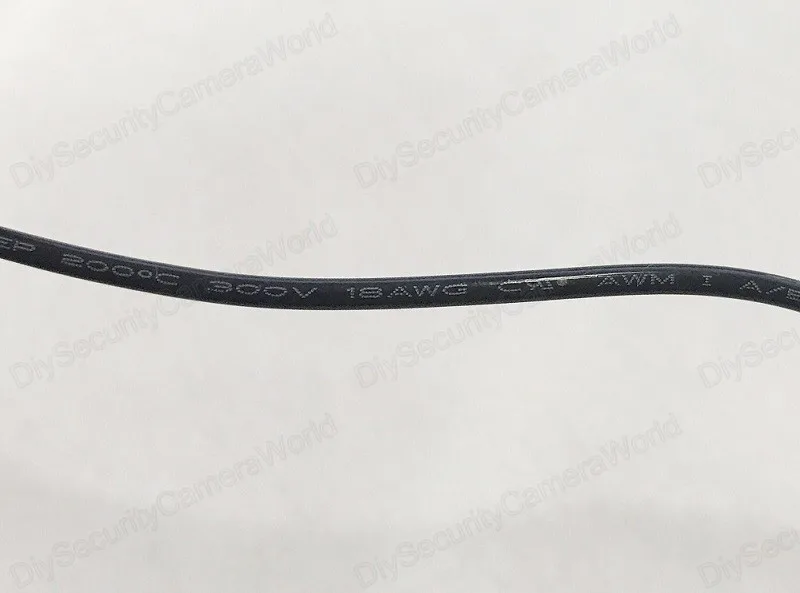

  • 18AWG lead handles 24V AC or 12V DC supply
  • Screw cover protects every terminal connection
  • Compact 128mm by 43mm by 23mm footprint fits tight enclosures
  • Also routes eight RS485 inputs to one RS485 output

Power distribution for multi-camera setups

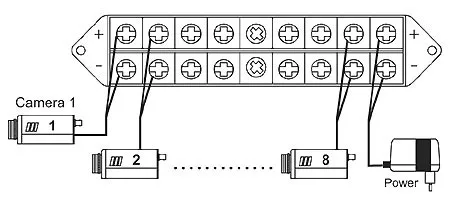

The DSC-TB01 terminal block bus bar accepts one power adapter and distributes it to eight separate outputs. It is designed for installers who need to run multiple surveillance cameras from a single 24 V AC or 12 V DC source. The unit includes an 18 AWG power lead and a protective screw cover for tidy wiring.

Voltage and wiring limits

The block supports either 24 V AC or 12 V DC on both the input and the eight outputs, so the supply voltage must match every connected device. Each terminal uses screw-down contacts suited to the supplied 18 AWG lead; thicker conductors may not fit reliably. The housing measures 128 mm by 43 mm by 23 mm, which defines the space required inside an enclosure.

Replaces individual power taps

Instead of fitting separate splitters or looping cables between cameras, this bar consolidates all connections at one point, reducing clutter and potential failure points. The upgrade is worthwhile when a project exceeds four cameras and a single adapter can deliver the total current draw. It does not suit installations that require isolated voltage rails or mixed AC and DC loads on the same bus.

Highlights

  • Splits one power adapter into eight outputs
  • 18AWG lead handles 24V AC or 12V DC supply
  • Screw cover protects every terminal connection
  • Compact 128mm by 43mm by 23mm footprint fits tight enclosures
  • Also routes eight RS485 inputs to one RS485 output

Specifications

BrandDiySecurityCameraWorld
ModelDSC-TB01
TypeTerminal Block Bus Bar

Questions about this item

How many camera feeds can the DSC-TB01 bus bar support from a single power adapter?

The terminal block splits one input into eight outputs so up to eight cameras can share one 24 V AC or 12 V DC adapter.

What voltage will each camera receive when the bus bar is powered by a 24 V AC supply?

Every output carries the same 24 V AC as the input, so each connected camera sees the full supply voltage.

Does the DSC-TB01 use screw terminals for the RS-485 data lines as well as the power leads?

Yes, the block provides eight RS-485 inputs and one RS-485 output all terminated with screw-down contacts.
