Small white box with RJ45 ports and short DC cable

DiySecurityCameraWorld

DiySecurityCameraWorld DSC-PS5712S 12V 1A PoE Splitter

SKU CH-V4YP-Y5VGJ

Splits a PoE feed into 12 V DC power and 10/100 Mbps Ethernet for non-PoE devices

  • TypePoE Splitter to DC12V 1A
  • Powers non-PoE devices from a PoE switch
  • Delivers 12 V DC at up to 1 A via 5.5 × 2.1 mm jack
  • Passes 10/100 Mbps data through shielded RJ-45 ports
  • Operates from -10 °C to 45 °C for indoor or outdoor use
  • IEEE 802.3 af compliant for standard PoE interoperability

Active PoE Splitter for Non-PoE Devices

The DSC-PS5712S separates a Power over Ethernet feed into a 12 V DC supply and a 10/100 Mbps Ethernet link. It connects to a PoE switch through a shielded RJ45 input and provides a male RJ45 plus a 5.5 × 2.1 mm DC jack on a 21 cm lead.

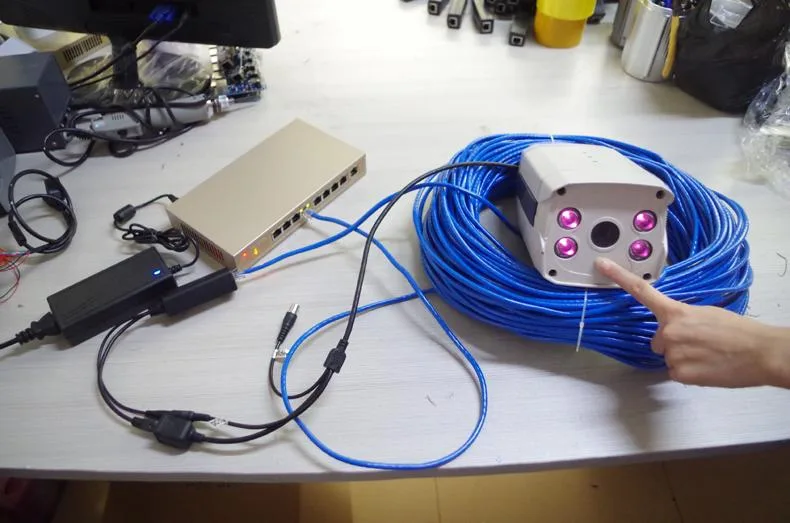

Installers powering cameras

This splitter suits installers who need to run a single cable to a non-PoE device and extract 12 V power at the far end. It is not for equipment requiring voltages other than 12 V, currents above 1 A, or Gigabit Ethernet throughput.

Delivers 12 V at up to 1 A from a 44–54 V PoE source

The unit comfortably handles standard IEEE 802.3 af Class 3 loads such as typical IP cameras or wireless access points. Headroom ends when the attached device draws more than 1 A or when ambient temperature exceeds 45 °C.

Highlights

  • Powers non-PoE devices from a PoE switch
  • Delivers 12 V DC at up to 1 A via 5.5 × 2.1 mm jack
  • Passes 10/100 Mbps data through shielded RJ-45 ports
  • Operates from -10 °C to 45 °C for indoor or outdoor use
  • IEEE 802.3 af compliant for standard PoE interoperability

Specifications

BrandDiySecurityCameraWorld
ModelDSC-PS5712S
TypePoE Splitter to DC12V 1A

Questions about this item

What PoE switch standard must I already have to power this DSC-PS5712S splitter?

You need a switch or injector that complies with IEEE 802.3af and delivers 44-54VDC over a shielded RJ-45 connection.

Will my existing 10/100Mbps cameras and cabling work with this splitter's data pass-through?

Yes, the RJ-45 male output carries 10/100Mbps Ethernet data unchanged, so legacy Fast Ethernet devices and Cat5e cables remain compatible.

How can I confirm the splitter is delivering the correct 12VDC 1A output after installation?

Measure the DC jack (5.5 × 2.1 mm) with a multimeter; it should read 12VDC while the connected non-PoE device powers on and passes 10/100Mbps traffic.
