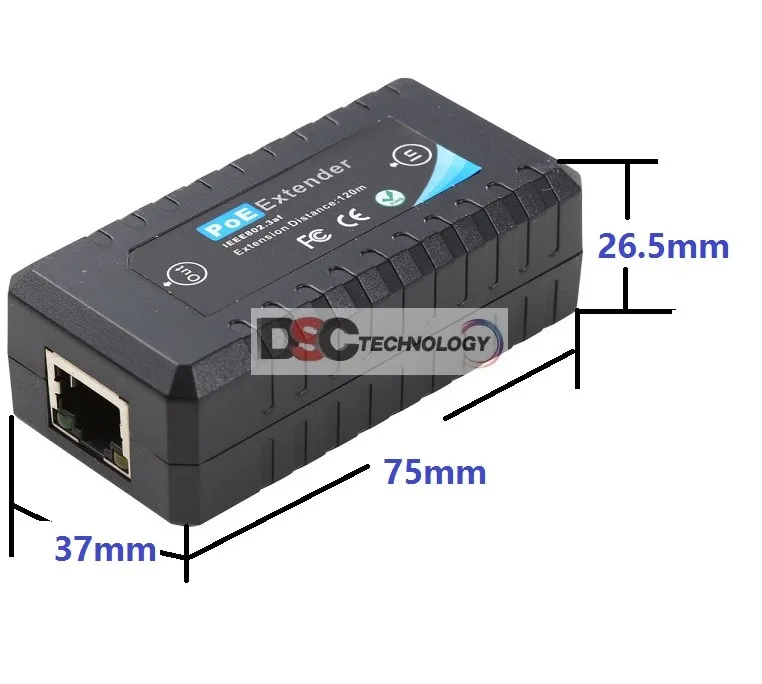

Small rectangular PoE extender with two RJ45 ports

DiySecurityCameraWorld

DiySecurityCameraWorld DSC-PoE-E1 1 Port 10/100M PoE Extender IEEE802.3af surveillance accessory

SKU CH-K0VT-J9KFE

Extends Ethernet and PoE power up to 120 metres over Cat5 cable for 10/100M security camera systems with 13 W input and 12.2 W output

  • TypePoE Externder/PoE Repeater
  • SpecificationsComply with 10/100 BASE-TX, IEEE802.3af (PoE). Power input f
  • FeaturesPoE Extenders can increase the transmission distance for Eth
  • Package Contents1
  • Extends PoE reach by 120 m over Cat5 UTP
  • Delivers 12.2 W to the camera from 13 W input
  • Works instantly with plug-and-play, no setup needed
  • Runs reliably from 0 °C to 40 °C
  • Meets FCC, RoHS and Low Voltage directives

What this extender does

The DiySecurityCameraWorld DSC-PoE-E1 is a single-port PoE repeater built for IP camera installations that exceed the standard Ethernet distance limit. It accepts power and data on one RJ45 port and forwards both to a single terminal device over Cat5 UTP cable. No configuration is required; the unit operates in store-and-forward mode and complies with IEEE 802.3af for both input and output.

Sustained-load behaviour

Under continuous operation the extender maintains a switching capacity of 400Mbps while delivering up to 12.2W to the connected camera from a 13W input budget. The 48-byte packet buffer and 2K MAC address table handle steady traffic without software intervention. Automatic detection protects attached equipment from damage caused by incorrect installation, and the device remains within its 0°C to 40°C working range during prolonged use.

The deciding specification

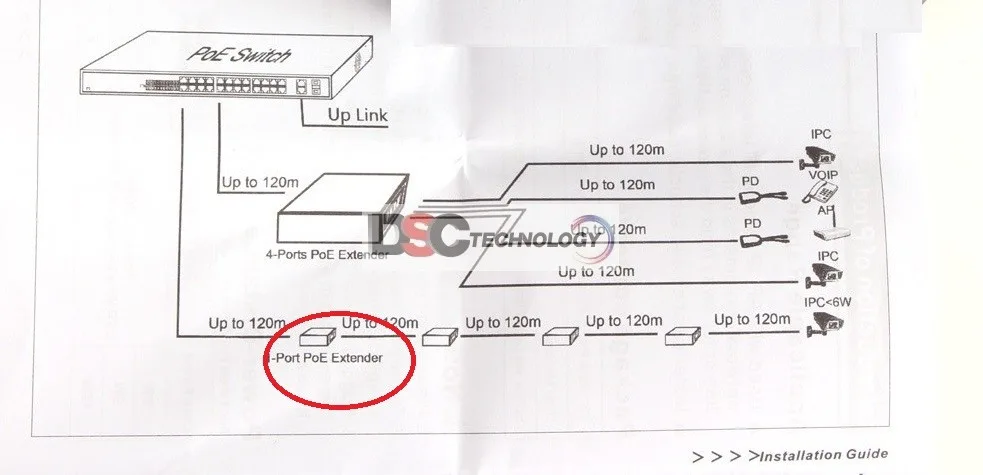

The extender adds up to 120 metres of reach per unit over Cat5 or better cabling, which is the single figure that determines whether it solves your distance problem. If the camera run is shorter, the device is unnecessary; if the run is longer, additional repeaters or a different topology are required. The 12.2W output also sets the maximum camera power class this unit can support.

Highlights

  • Extends PoE reach by 120 m over Cat5 UTP
  • Delivers 12.2 W to the camera from 13 W input
  • Works instantly with plug-and-play, no setup needed
  • Runs reliably from 0 °C to 40 °C
  • Meets FCC, RoHS and Low Voltage directives

Specifications

BrandDiySecurityCameraWorld
ModelDSC-PoE-E1
TypePoE Externder/PoE Repeater
SpecificationsComply with 10/100 BASE-TX, IEEE802.3af (PoE). Power input for single port is 13W. Power output for single port is 12.2W.
FeaturesPoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m via Cat5 UTP cable.
Package Contents1

Questions about this item

Will the DSC-PoE-E1 add noticeable heat or fan noise when running continuously?

The unit has no fan and draws 13 W in while delivering 12.2 W out, so it runs silently with only modest warmth.

What existing equipment is required before the extender can power a camera?

You need a PoE switch or injector that supplies IEEE 802.3af power and a Cat5 or better UTP cable run of up to 120 m.

Can the extender work with older 10BASE-T cameras and cabling?

Yes, it supports IEEE 802.3i 10BASE-T and 802.3u 100BASE-TX, so legacy 10 Mbit devices connect without changes.
