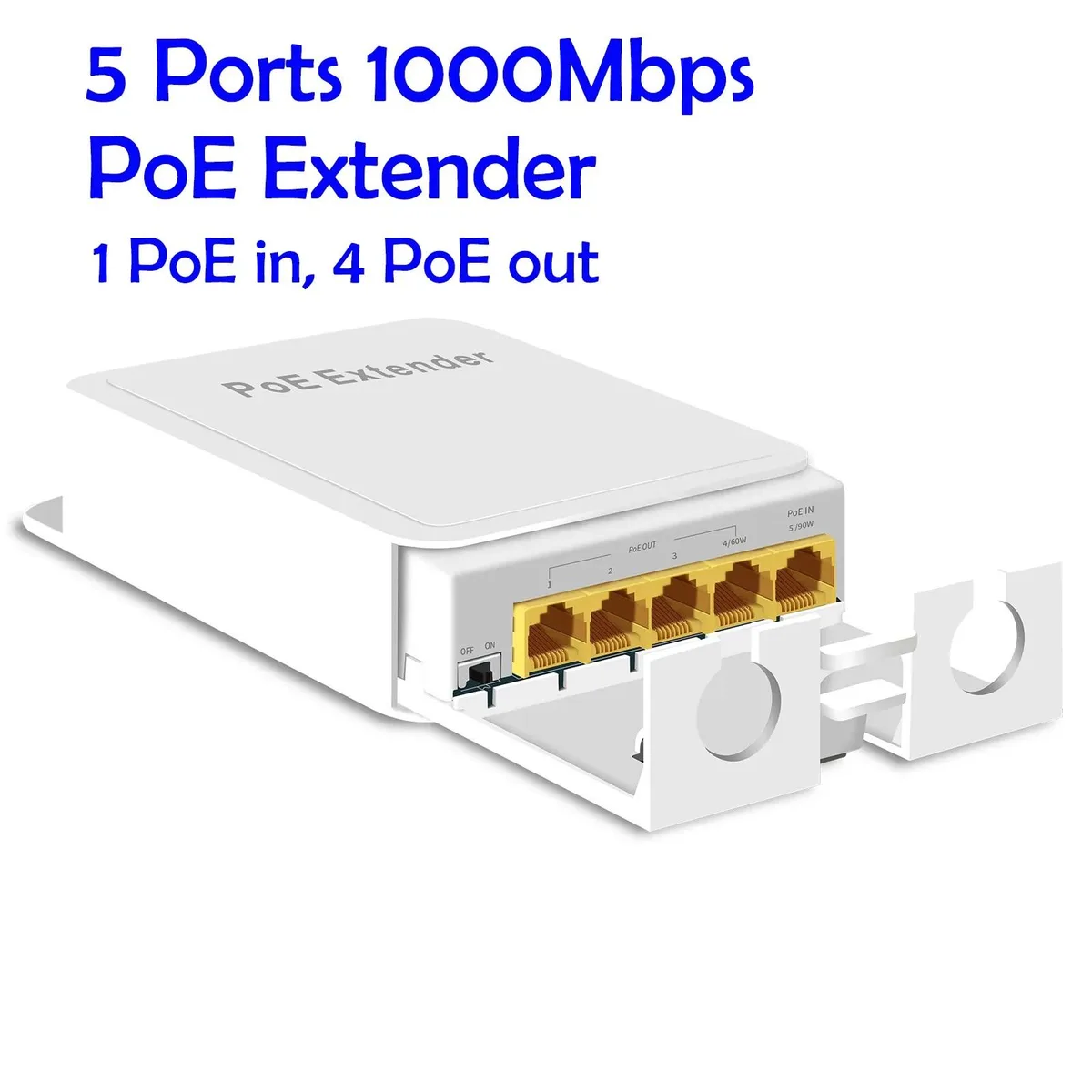

Compact rectangular outdoor PoE extender, white ABS housing with five shielded Ethernet ports, wall-mount brackets visible

DiySecurityCameraWorld

DiySecurityCameraWorld 5 Port Gigabit PoE Passthrough Switch Outdoor Ethernet Extender surveillance accessory

SKU CH-ZBY3-6DXP8

Extends power and data up to 100 metres over four gigabit PoE ports from a single PoE input, with a weatherproof ABS shell for outdoor or harsh indoor use

  • TypePoE Extender
  • Extends PoE power and data up to 100 metres
  • Delivers up to 90 watts total across four Gigabit output ports
  • Weatherproof ABS shell protects all cable connections outdoors
  • Unmanaged plug-and-play operation requires no configuration
  • Wall-mountable design saves space and needs no separate power adapter

Five Gigabit PoE ports

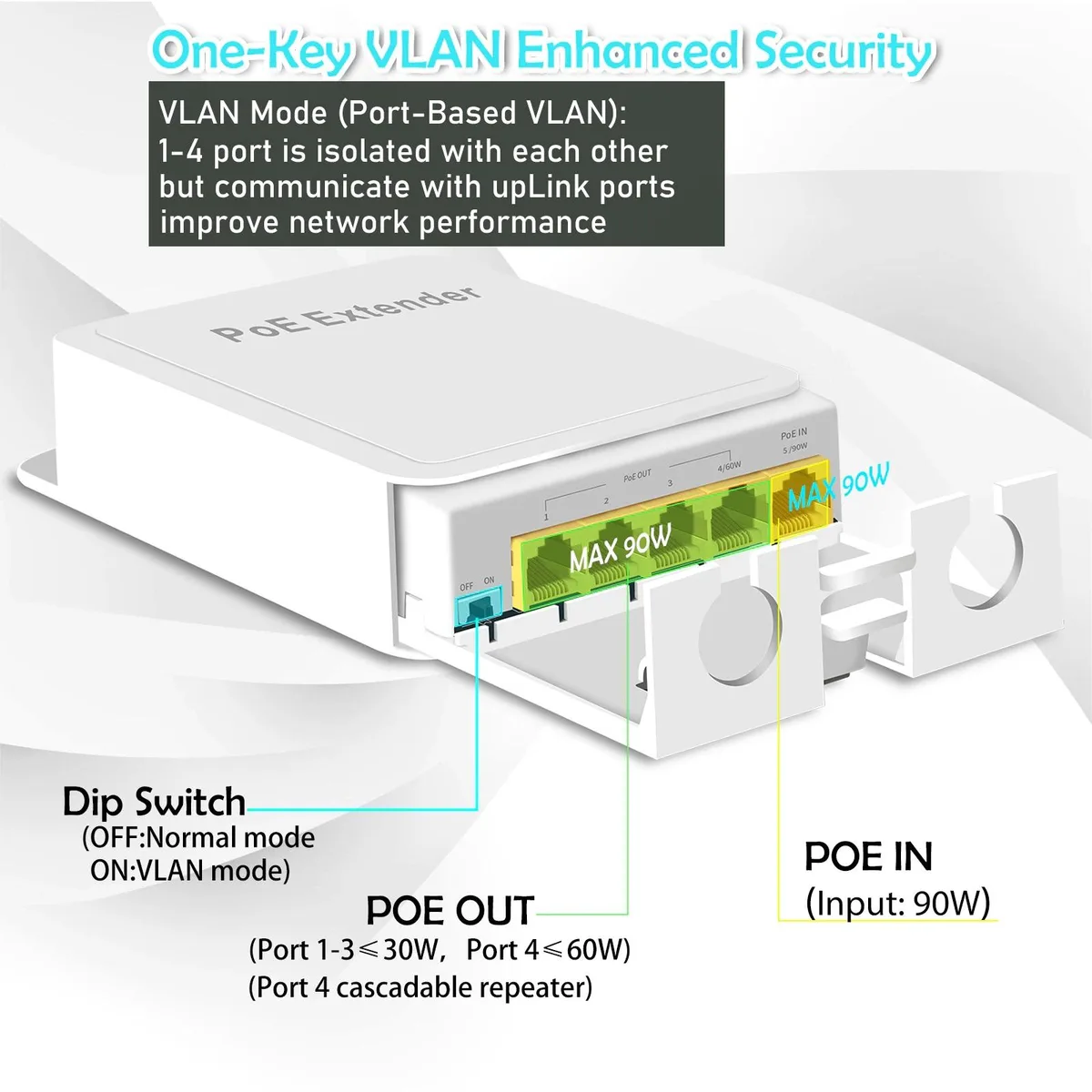

This outdoor extender provides one PoE input and four PoE outputs at 10/100/1000 Mbps. It accepts up to 90 W on the input side and delivers up to 90 W total across the outputs, with three ports limited to 30 W each and the fourth capable of 60 W. The unit is powered entirely by the incoming PoE connection, so no separate power adapter is required.

Weatherproof ABS housing

The industrial-grade ABS polymer shell encloses all cable interfaces for waterproof, dustproof and snowproof protection. This makes the switch suitable for permanent outdoor deployment as well as harsh indoor locations such as warehouses, garages or attics. A compact wall-mount design allows installation in tight spaces without extra brackets.

Silent fanless operation

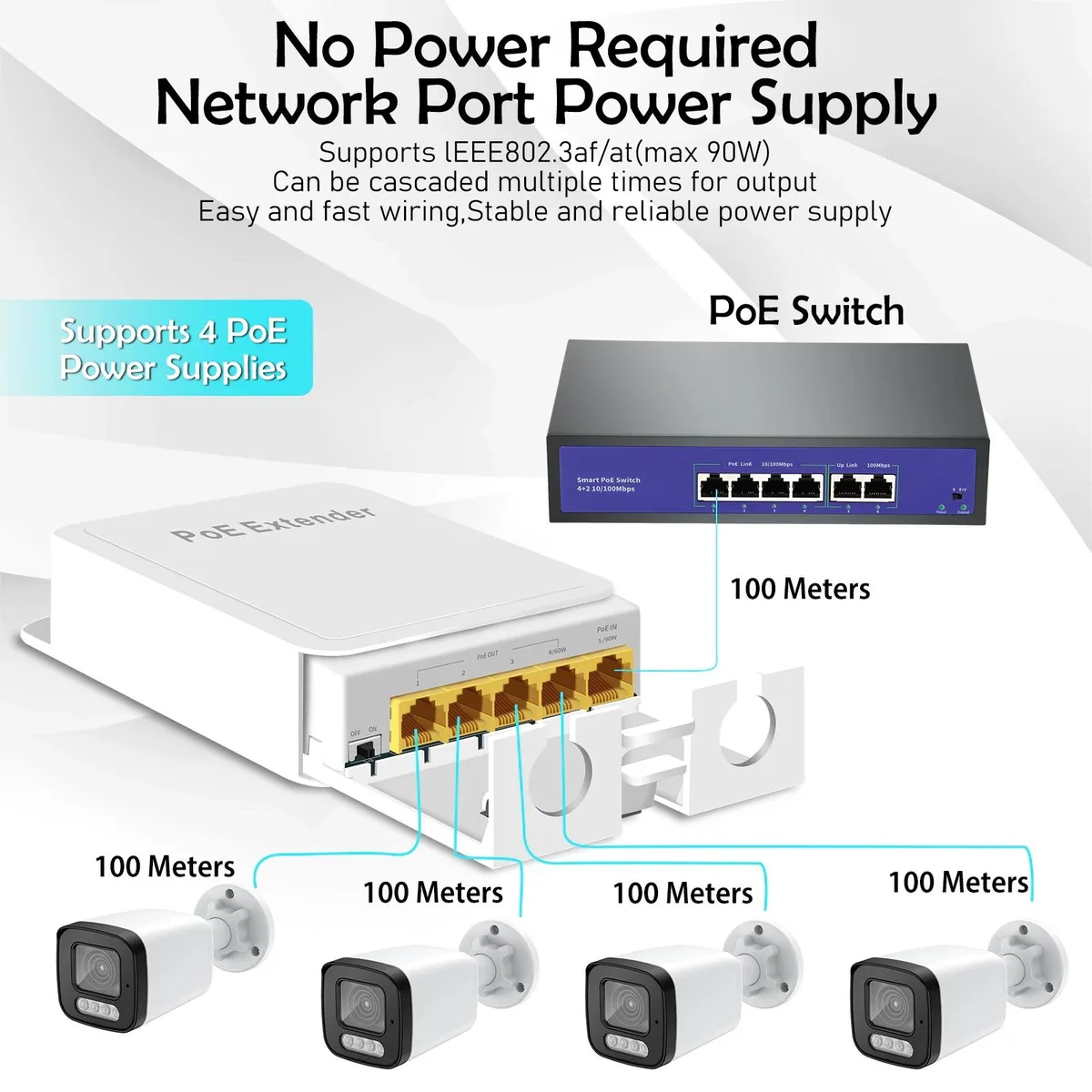

With no moving parts the extender runs completely silently and draws only the power delivered over the Ethernet cable. IEEE 802.3 af/at compliance ensures automatic device detection and plug-and-play operation without configuration. PoE voltage ranges from 44 to 57 Vdc, and the passthrough design maintains power and data over distances up to 100 m or 330 ft.

Highlights

  • Extends PoE power and data up to 100 metres
  • Delivers up to 90 watts total across four Gigabit output ports
  • Weatherproof ABS shell protects all cable connections outdoors
  • Unmanaged plug-and-play operation requires no configuration
  • Wall-mountable design saves space and needs no separate power adapter

Specifications

TypePoE Extender

Questions about this item

What distance does the Gigabit PoE passthrough support at 10/100/1000Mbps?

The extender carries Gigabit PoE up to 100 metres or 330 feet from the powered source to connected cameras.

How is the unit mounted outdoors?

The weatherproof ABS shell includes integrated wall-mount points and seals every cable entry, so the switch fastens directly to a wall or pole without extra enclosures.

What is the correct wiring sequence for the PoE input pins?

Connect the injector to the PoE In port using pins 1/2 positive, 3/6 negative, and 4/5 positive, 7/8 negative as marked on the housing.
