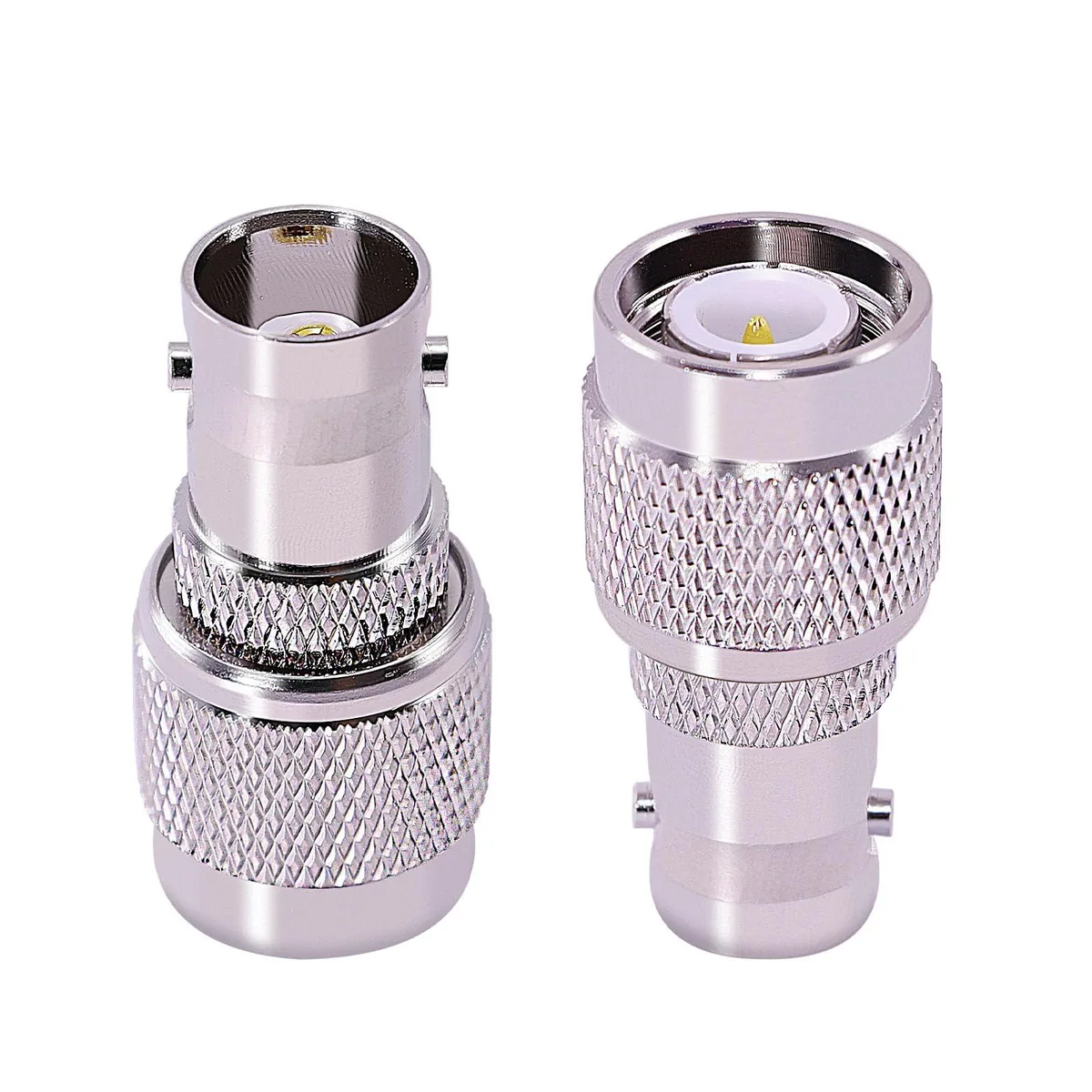

Two nickel-plated brass BNC female to TNC male coaxial adapters

DIXSG

DIXSG 2PCS BNC Female to TNC Male Coax Adapter

SKU CH-9YAS-RMH38

Two BNC female to TNC male 50 ohm coaxial adapters with pure copper centres and nickel-plated brass bodies rated for 500 mating cycles

  • Specifications,
  • Low-loss signal path with .2 dB insertion loss at 3 GHz
  • Pure copper center conductor ensures reliable conductivity
  • Nickel-plated brass body resists corrosion across -55 °C to 155 °C
  • Rated for 500 mating cycles for long service life
  • Two adapters included for multiple connection points

Connector type and impedance

This pack contains two BNC female to TNC male coaxial adapters rated at 50 ohms. They join a BNC male cable or device to a TNC female port in security cameras, CCTV systems, DVRs, SDI video, broadcast gear and wireless LAN equipment.

Signal loss and temperature range

Insertion loss is specified at .2 dB at 3 GHz with a VSWR of 1.2 GHz, keeping attenuation low across the operating band. The adapters function from -55 °C to 155 °C, suiting both indoor and outdoor installations.

Pure copper contacts and mating life

Center conductors are pure copper with nickel-plated brass bodies, delivering good conductivity and corrosion resistance. Rated for 500 mating cycles, they replace worn or mismatched ends on existing coax runs without needing new cable pulls.

Highlights

  • Low-loss signal path with .2 dB insertion loss at 3 GHz
  • Pure copper center conductor ensures reliable conductivity
  • Nickel-plated brass body resists corrosion across -55 °C to 155 °C
  • Rated for 500 mating cycles for long service life
  • Two adapters included for multiple connection points

Specifications

BrandDIXSG
Specifications,

Questions about this item

How do I install the BNC female-to-TNC male adapter without damaging the centre conductor?

Thread the TNC male pin onto the TNC female port by hand, then tighten a quarter-turn with a wrench; push the BNC male plug straight into the BNC female hole until the bayonet lugs click — forcing it sideways bends the pure copper centre conduct.

When will the nickel-plated brass body or the pure copper centre conduct need replacement?

The adapter is rated for 500 mating cycles; after roughly that many connect-disconnect operations the spring fingers or plating can wear enough to raise insertion loss above the specified .2 dB at 3 GHz.

What is the first performance limit reached during continuous high-power RF use?

Insertion loss reaches .2 dB at 3 GHz and VSWR stays at or below 1.2 up to 1.2 GHz; beyond that frequency the return loss degrades before the -55 °C to +155 °C temperature range becomes a factor.
