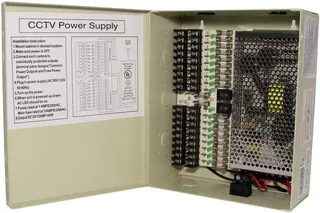

Metal enclosure with eighteen screw terminal pairs and glass fuses, US three-prong cord attached

DIVI

DIVI 18-Channel 12A 12V CCTV Power Supply Box UL Listed

SKU CH-8C64-6RCZ7

Distributes 12 V DC to 18 camera channels with glass-fuse protection, adjustable 12–13 V output and UL-listed safety

  • TypePower Supply Box
  • 18 channels power up to 18 cameras from one box
  • 12 A total output delivers 145 W for reliable multi-camera runs
  • Adjustable 12 V–13 V output compensates voltage drop on long cables
  • Individual glass fuses protect each feed against overloads and short circuits
  • UL-listed LRS-350-12 unit meets commercial safety requirements

18-Channel 12V Power Distribution Box

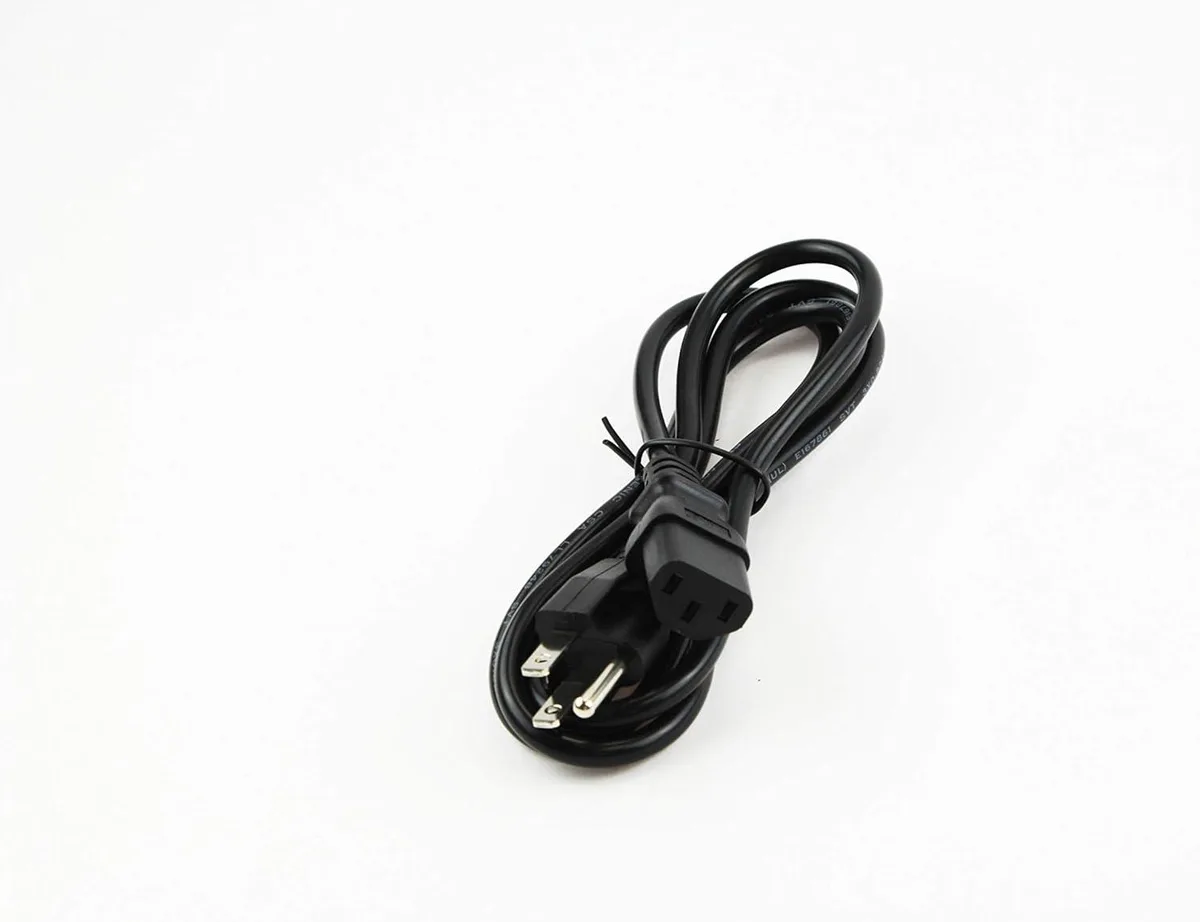

The DIVI 18-channel power supply box delivers 12 V DC at up to 12 A total current, providing 145 W for CCTV cameras, microphones, DVRs or LED strip lights. It accepts AC input from 90 V to 132 V at 50/60 Hz and is UL listed under model LRS-350-12. The unit ships new with a US standard three-prong AC power cord included.

Screw Terminal Wiring and Glass Fuse Protection

Installation uses screw terminal connectors for each of the 18 positive and negative output pairs, allowing secure wire attachment without specialised tools. Each channel is guarded by an individual fast-acting glass cartridge fuse that opens within seconds of an overload or short circuit. An adjustable voltage trimmer at the bottom right corner lets you set output between 12 V and 13 V DC to compensate for cable voltage drop.

Verify Camera Count and Per-Channel Current Before

Confirm that your camera count does not exceed 18 channels and that the combined draw stays within the 12 A total limit, which yields roughly 0.67 A per channel when all are used. Any single channel can supply up to 1 A, so high-draw devices must be balanced across outputs. Ensure your mounting location accommodates the 9.5 x 8 x 3.25 inch enclosure and that the AC supply matches the 90 V to 132 V input range.

Highlights

  • 18 channels power up to 18 cameras from one box
  • 12 A total output delivers 145 W for reliable multi-camera runs
  • Adjustable 12 V–13 V output compensates voltage drop on long cables
  • Individual glass fuses protect each feed against overloads and short circuits
  • UL-listed LRS-350-12 unit meets commercial safety requirements

Specifications

TypePower Supply Box

Questions about this item

How do I verify the unit is delivering power correctly after installation?

Check that the green LED on the front panel is lit, then measure each of the 18 screw-terminal pairs with a multimeter set to DC volts; each should read between 12 V and 13 V when the adjustment potentiometer is at its default position.

What comes in the box and what must I supply myself?

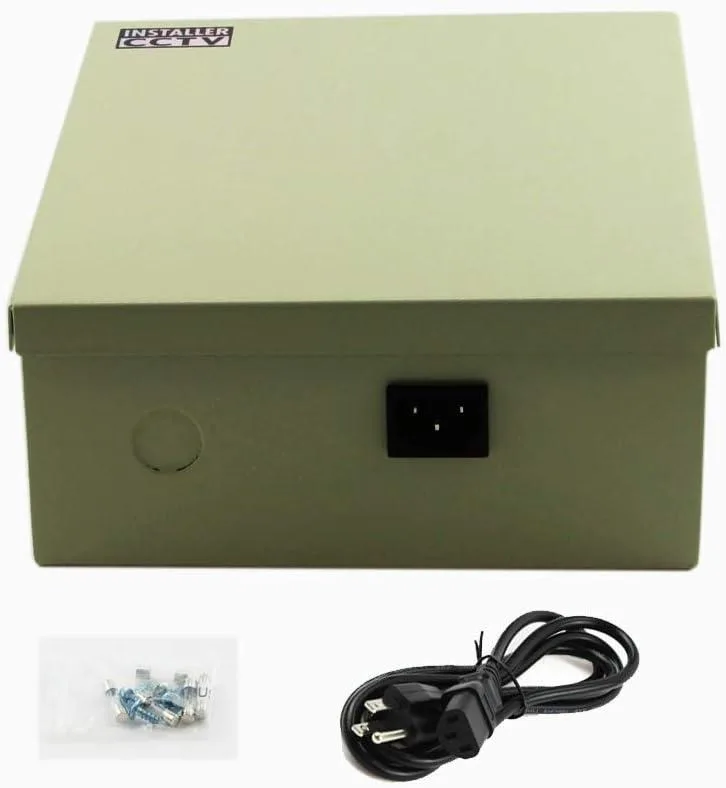

The box includes the power supply enclosure, a US-standard three-prong AC cord and 18 installed glass cartridge fuses; you must provide the 12 V cameras or other loads and the low-voltage cable to connect them to the screw terminals.

Which version should I choose if I need to run 12 cameras instead of 18?

The same 18-channel unit can be used with only 12 channels active; each active channel will then receive up to 1 A instead of the 0.67 A per channel when all 18 are loaded, and the total 145 W limit still applies.
