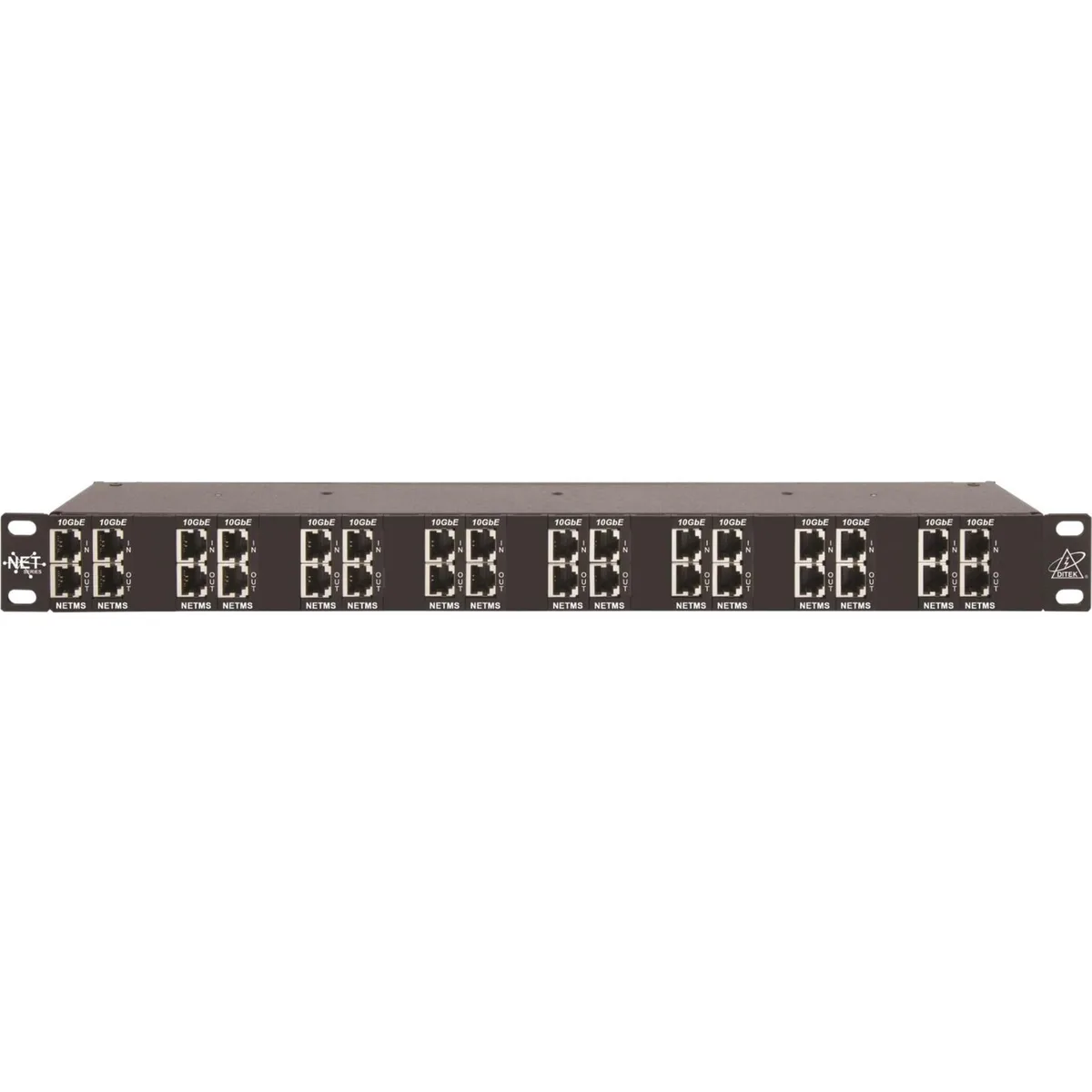

Black 1U rack unit with 16 front ports and modular slots

DITEK

DITEK DTK-RM16NETS 16-channel 1U rack mount surge protector surveillance accessory

SKU CH-0BCT-B52FS MPN DTK-RM16NETS

A 16-channel 1U rack-mount surge protector for shielded Ethernet and PoE with 20 kA per pair capacity and front-swappable modules

  • 16-channel protection for multiple network feeds
  • 1U rack mount fits standard server cabinets
  • 10GbE data speed support for high-bandwidth surveillance
  • 20kA surge capacity per pair handles heavy transients
  • 24 modular slots allow future expansion without rewiring

16-channel rack mount surge protector

The DTK-RM16NETS is a 1U rack mount surge protector designed for shielded Ethernet and PoE circuits. It provides surge suppression for installations with multiple network cabling feeds before they reach switches. The unit uses SAD and GDT technologies for circuit protection. It is suited for integrators managing shielded network infrastructure.

Surge capacity and data speed limits

The protector handles up to 20kA per pair surge current capacity for shielded network devices. It supports data speeds up to 10GbE across protected channels. PoE Plus and HiPoE readiness covers high-wattage powered device applications. Shielded twisted pair cabling is required for grounding to remote devices.

Modular capacity decides fit

The enclosure supports up to 24 modules in a single 1U form factor. Rapid-replacement modular design allows front-access swaps without removing the unit from the rack. Optional modules are available to support PoE extender circuits. Buyers needing more than 24 protected channels must deploy additional units.

Highlights

  • 16-channel protection for multiple network feeds
  • 1U rack mount fits standard server cabinets
  • 10GbE data speed support for high-bandwidth surveillance
  • 20kA surge capacity per pair handles heavy transients
  • 24 modular slots allow future expansion without rewiring

Specifications

BrandDitek
Shipping weight1.81 kg
Package size508 × 254 × 127 mm

Questions about this item

Should I choose the 16-channel model or a larger capacity?

This unit provides 16 protected channels in a 1U rack space. Optional modules let you expand up to 24 modules in the same enclosure if you need more ports later.

What does the 20kA per pair surge current rating mean for my installed cameras?

Each protected pair can withstand up to 20kA of surge current, giving the highest protection level available for shielded network devices against lightning or power transients.

The spec lists 10GbE support — will that limit my PoE+ or HiPoE power budget?

No. The protector handles data rates up to 10GbE while passing PoE+ and HiPoE power unhindered, so high-wattage cameras and extenders receive full power.
