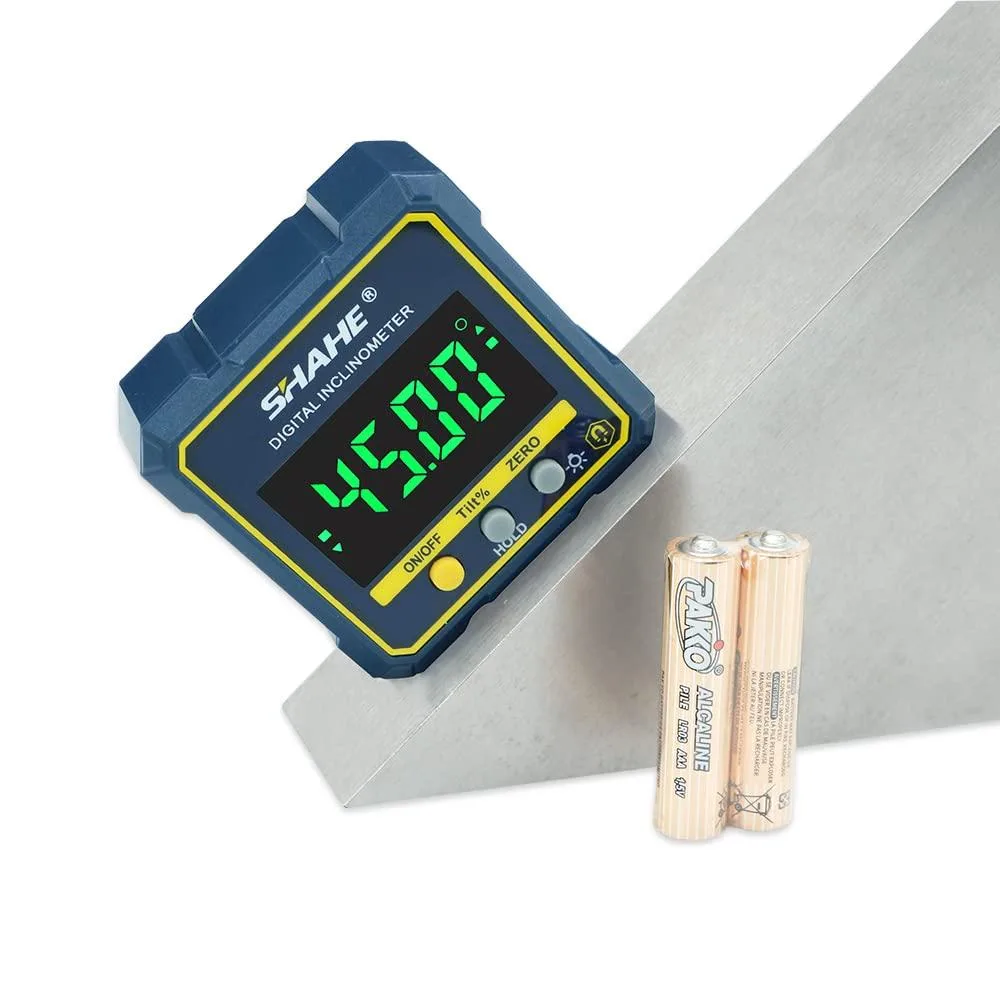

Digital Angle Gauge ±0.2° 360° range
Measures angles from 0 to 360° with ±0.2° accuracy and a magnetic base for hands-free use on metal surfaces
- Includesparts
- ±0.2° accuracy for precise angle readings
- 360° measuring range covers full rotation
- magnetic base attaches firmly to metal surfaces
- backlit display readable in low light
- auto-rotating screen works at any orientation
Digital Angle Gauge for Precision Work

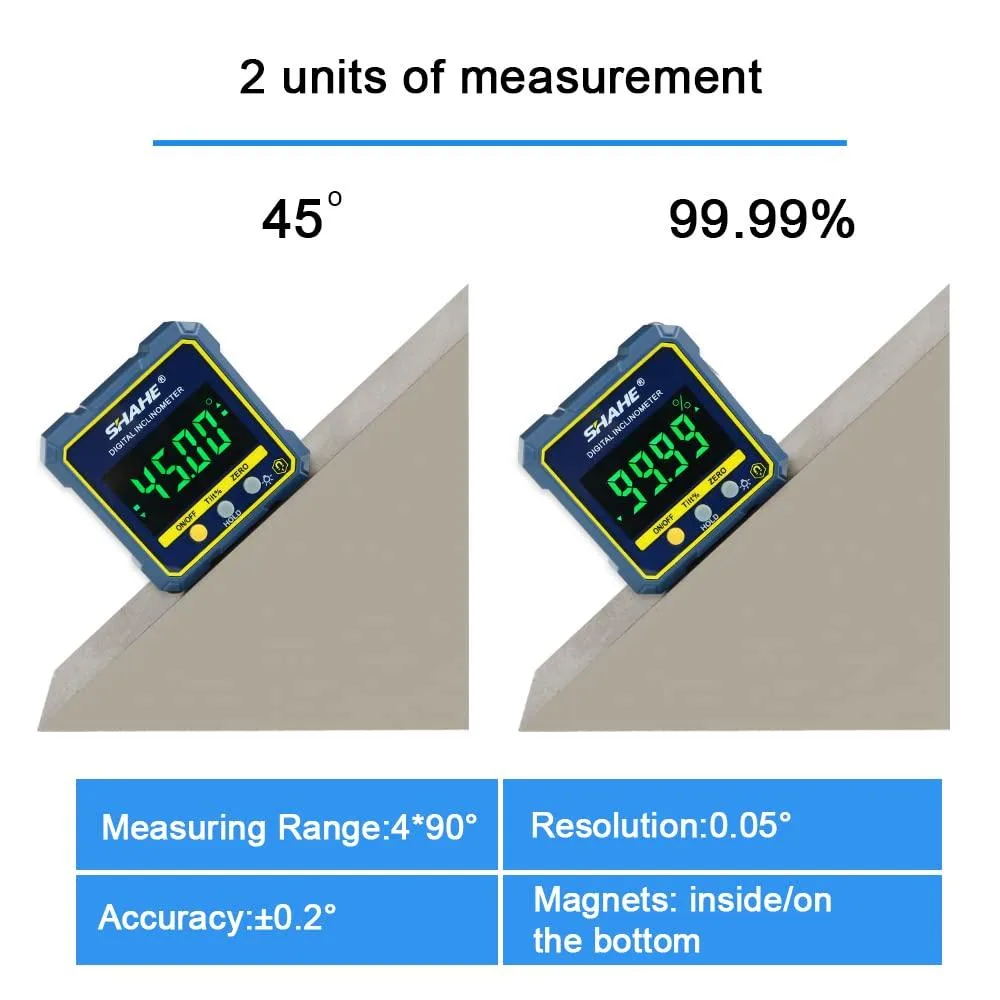

The digital angle gauge delivers ±0.2° accuracy with 0.05° resolution across a 360° measuring range. Its magnetic base secures firmly to ferrous surfaces such as saw blades and metal pipes. The auto-rotating display inverts for easy reading at any orientation. A hold function freezes values while a zero button sets relative angles on any reference surface.
Sustained Operation Within Temperature Limits
The instrument operates continuously between 0°C and 50°C (32°F to 122°F) without thermal drift affecting the stated accuracy. Auto power-off activates after three minutes of inactivity to preserve the two included AAA batteries. The plastic frame maintains structural integrity throughout the working temperature span. No cooling period is required between measurements during extended use.
Practical Limits of the Magnetic Interface

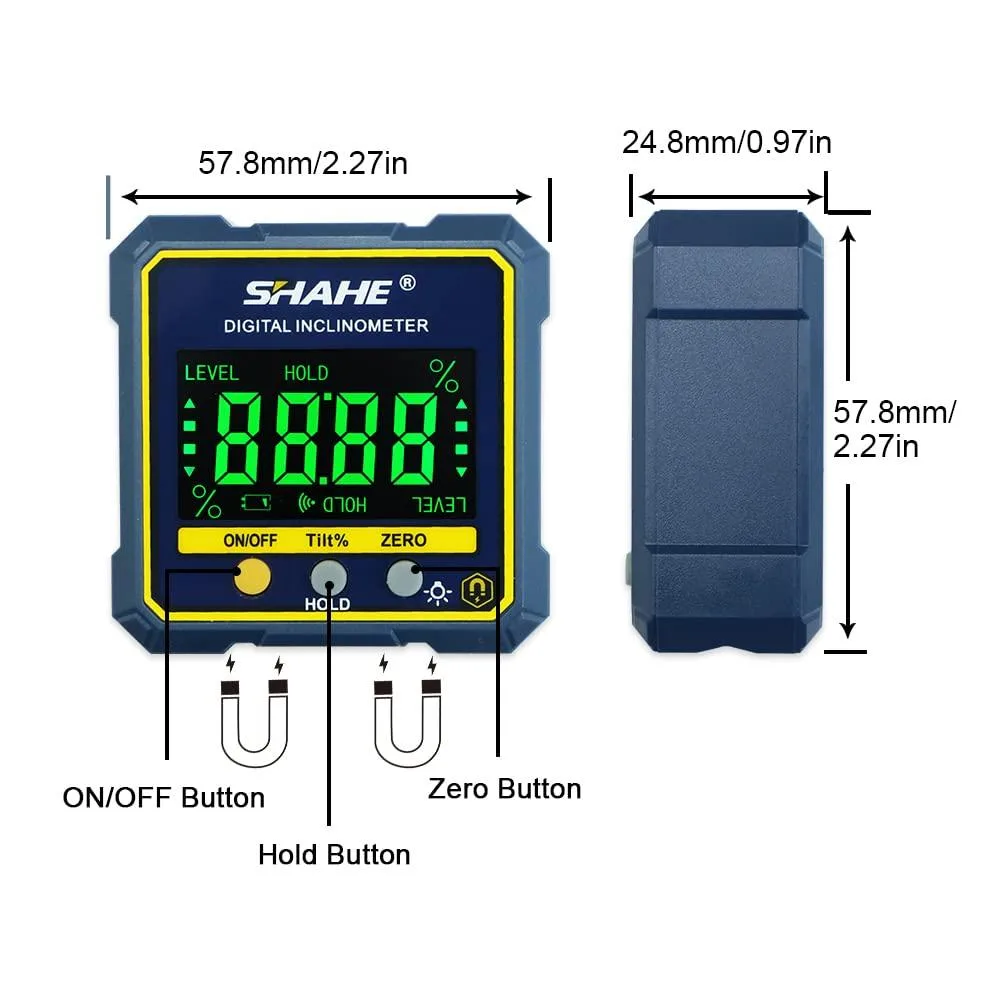

The magnetic base only attaches to ferrous metal surfaces, excluding aluminium, stainless steel and non-metallic workpieces. Maximum adhesion occurs on flat, clean surfaces; curved pipes reduce contact area and holding force. The 57 mm by 55 mm footprint fits standard saw tables and blades. CE and RoHS compliance confirms the device meets basic safety and environmental standards for European markets.
Highlights
- ±0.2° accuracy for precise angle readings
- 360° measuring range covers full rotation
- magnetic base attaches firmly to metal surfaces
- backlit display readable in low light
- auto-rotating screen works at any orientation
Specifications
| Includes | parts |
|---|
Questions about this item
How long do the included 1.5V AAA batteries last during continuous use?
The gauge powers off automatically after three minutes of inactivity to extend battery life; two AAA cells are supplied in the box.
Does the magnetic base need any extra hardware to attach to a table saw?
No — the built-in magnets hold directly to any ferrous metal surface such as a table saw, mitre saw or bandsaw.
Can I read the display upside-down when the gauge is mounted under a beam?
Yes, the auto-rotating screen inverts automatically so the digits stay upright at any angle.
