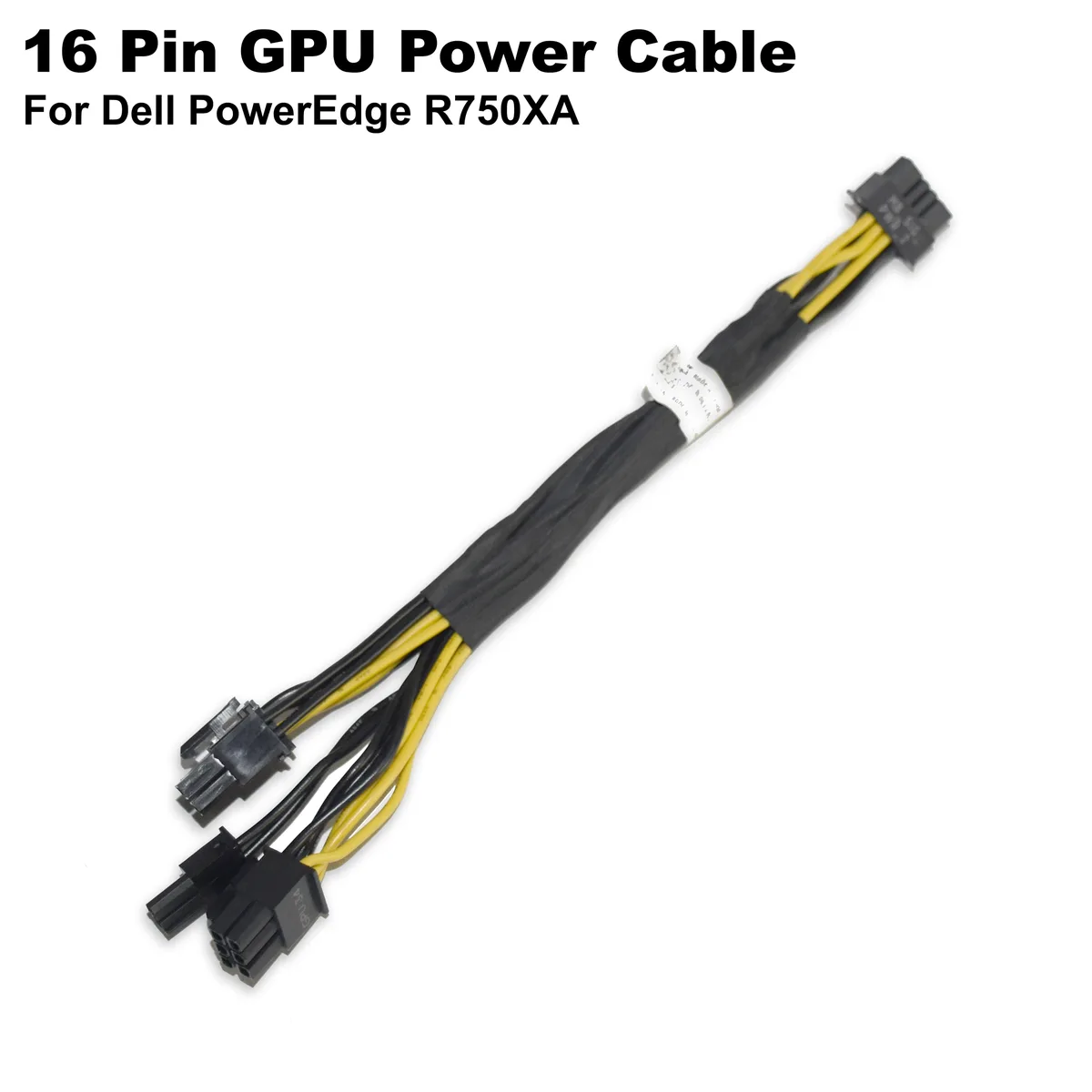

DELL PowerEdge R750XA Slot 34 16-Pin Split GPU Power Cable

Dell PowerEdge R750XA GPU Power Cable

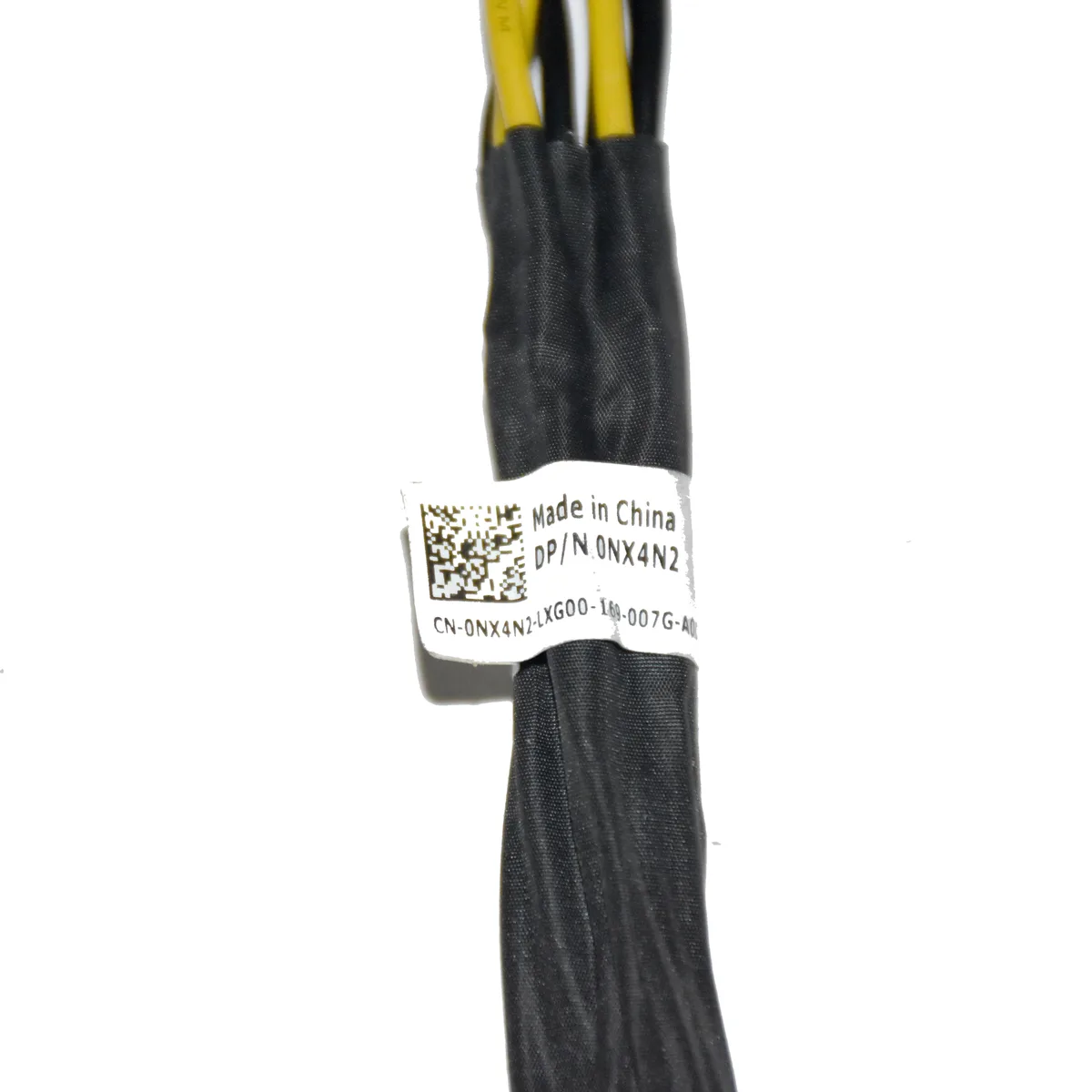

This genuine Dell NX4N2 cable delivers dedicated auxiliary power to high-performance GPUs installed in Slot 34 of the PowerEdge R750XA server. It connects directly to the system board via a 16-pin interface and splits into two 8-pin PCIe connectors. The enterprise-grade build ensures a secure, tool-less fit for professional workloads.

Capacity and Headroom for Dual 8-Pin GPUs

The split design provides two standard 6+2 PCIe connectors from a single 16-pin source, supporting graphics cards that require dual 8-pin power inputs. This configuration handles the high-wattage demands of professional GPUs used in AI, machine learning, virtualization, and HPC tasks. It runs out when a GPU requires more than two 8-pin connections or a different connector standard.

Slot 34 Interface and Compatibility Limits

The cable is keyed exclusively for Slot 3 and Slot 4 positions within the R750XA chassis, drawing power directly from the system board. It cannot be used in other server models, chassis slots, or standard desktop power supplies. The proprietary 16-pin board interface prevents adaptation to generic PSU cables or third-party GPU risers.
