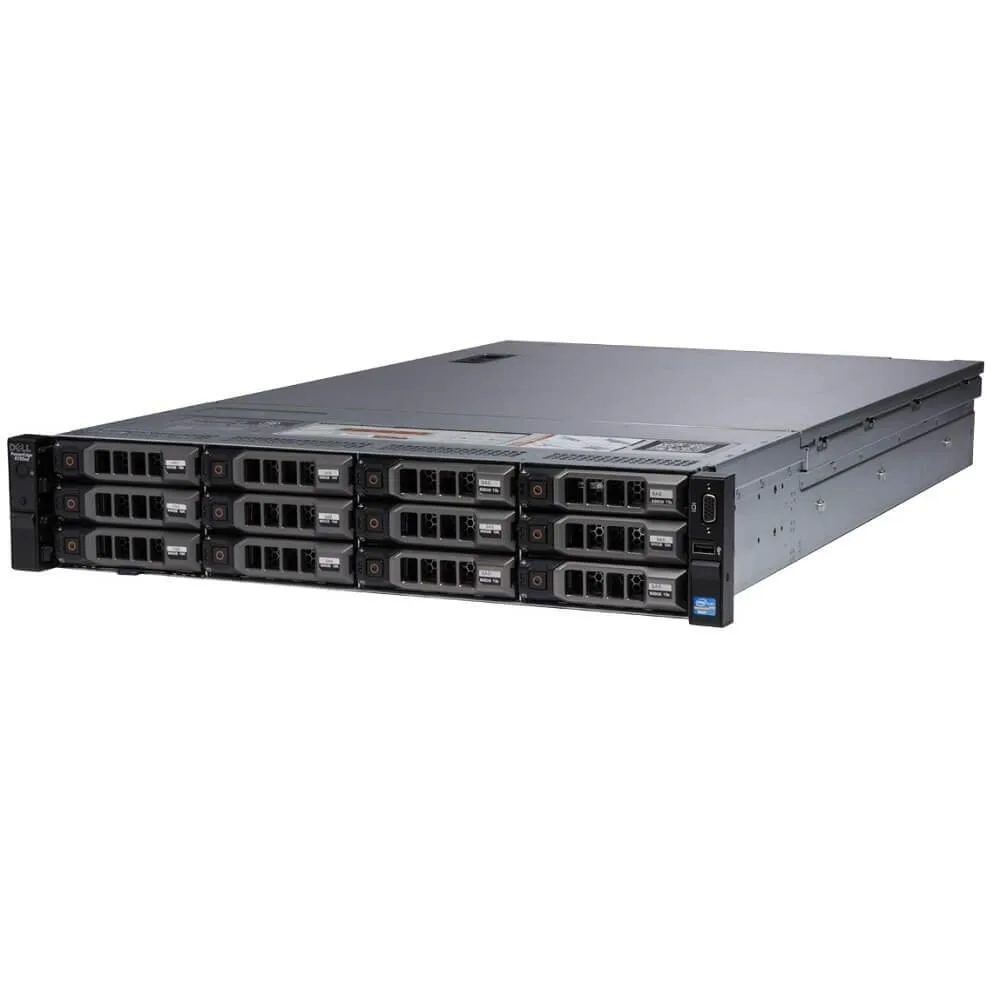

Silver 2U rack server chassis with twelve front 3.5-inch drive bays

DELL

DELL PowerEdge R730XD 2U rack server E5-2650 v3 10-core 2.3GHz 48GB DDR4 3x 1TB SATA H730

SKU CH-VY0T-E55PG

2U rack server with 12 hot-plug 3.5-inch bays, single 10-core Xeon at 2.3 GHz, 48 GB DDR4, three 1 TB SATA drives and H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610
  • Ten-core Xeon at 2.3 GHz delivers 20 virtual threads with hyper-threading
  • 48 GB DDR4 memory across 24 DIMM slots for large workloads
  • Three 1 TB 7.2 K SATA drives provide 3 TB baseline storage
  • H730 RAID controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Dual 750 W redundant power supplies keep the 2U chassis running

2U rack server with 12 drive bays

The Dell PowerEdge R730XD fits a standard 2U rack space and provides twelve 3.5-inch hot-plug bays for SAS or SATA drives. A single Intel Xeon E5-2650 v3 processor with ten cores running at 2.3 GHz delivers 20 threads through hyper-threading. The system ships with 48 GB of DDR4 memory installed across 24 DIMM slots, leaving room for expansion up to the platform maximum.

H730 RAID controller and three enterprise drives

A Dell PERC H730 controller with 1 GB cache and 12 Gbps SAS connectivity manages storage, supporting RAID 0, 1, 5, 6, 10, 50 and 60. Three Dell 1 TB 7.2 K RPM enterprise SATA drives are included, installed in trays and ready for immediate array creation. The DVD-ROM drive adds basic optical media support for installation or recovery tasks.

Redundant power and remote management

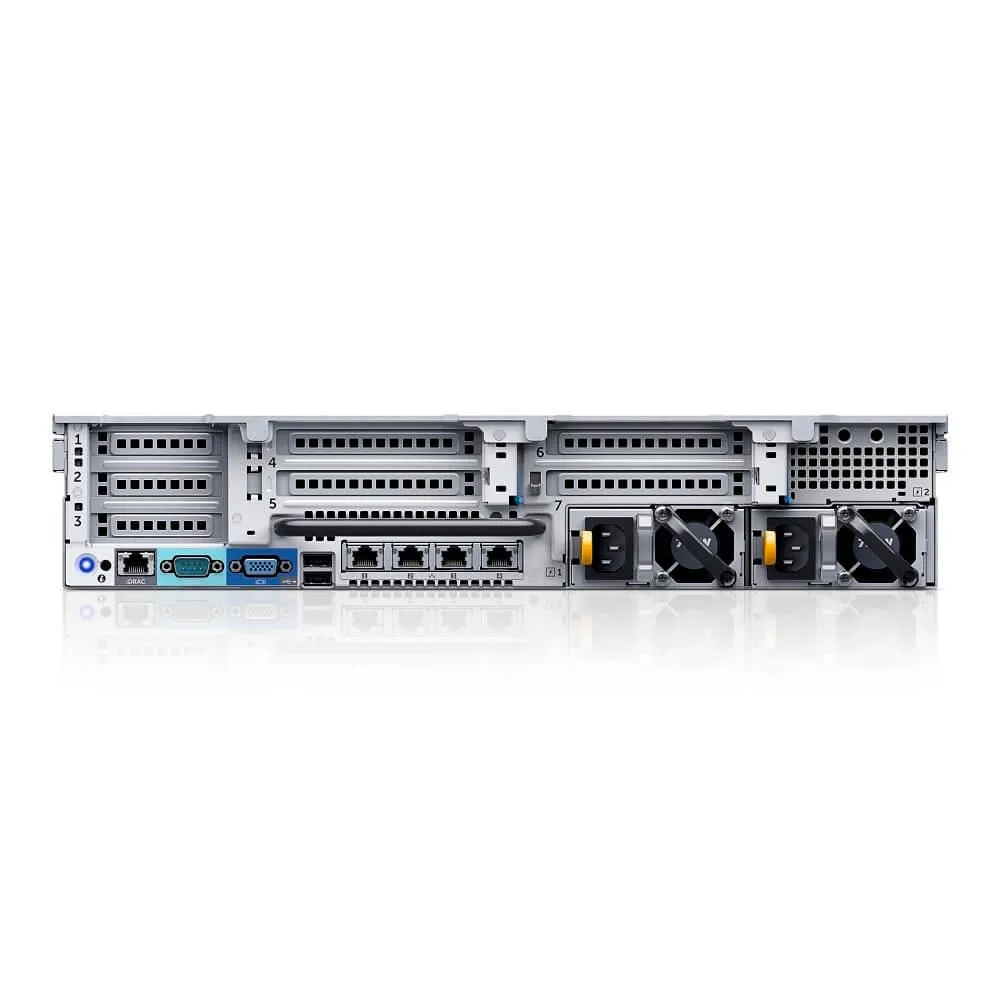

Dual 750 W hot-swap power supplies provide redundancy to keep the server running if one unit fails. The iDRAC8 with Lifecycle Controller offers out-of-band remote management for monitoring, deployment and firmware updates without an operating system. Four onboard 1 GbE ports handle network traffic, while up to six PCIe 3.0 slots plus a dedicated RAID slot allow additional connectivity or acceleration cards.

Highlights

  • Ten-core Xeon at 2.3 GHz delivers 20 virtual threads with hyper-threading
  • 48 GB DDR4 memory across 24 DIMM slots for large workloads
  • Three 1 TB 7.2 K SATA drives provide 3 TB baseline storage
  • H730 RAID controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Dual 750 W redundant power supplies keep the 2U chassis running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size48GB
Memory TypeDDR4
Max Memory Capacity48GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

When will the 7.2K RPM SATA drives need replacement in a RAID array?

The three installed 1 TB 7.2K RPM SATA drives are hot-plug enterprise units; replace any that report SMART errors or fail RAID rebuilds on the H730 controller.

What thermal limit appears first when both 750 W power supplies run continuously?

Dual redundant 750 W supplies share load; the chassis thermal design and iDRAC8 monitoring will throttle the Xeon E5-2650 v3 before power capacity is exceeded.

How loud are the fans when the 2U server runs 24/7 in a rack?

Redundant cooling fans in the 2U chassis ramp speed based on inlet temperature; iDRAC8 logs show acoustic levels typical for dense rack servers under sustained load.
