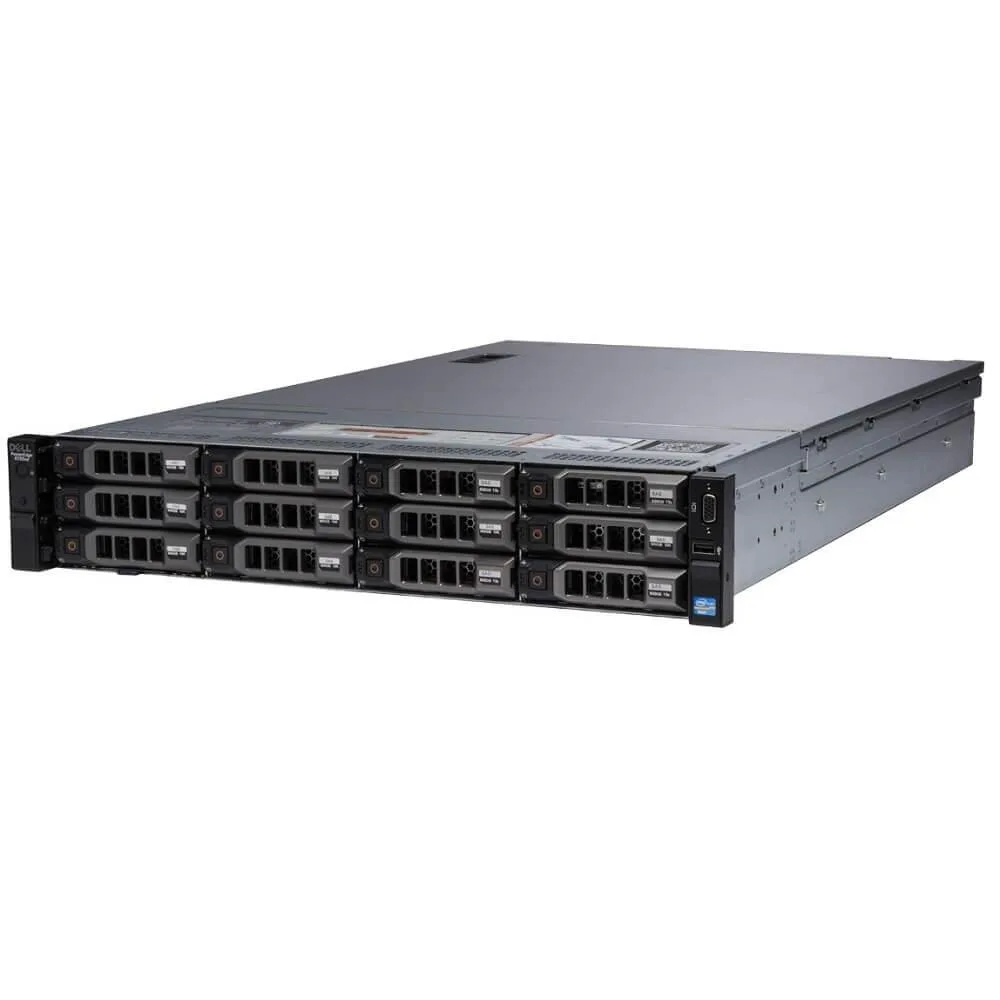

Silver 2U rack server chassis with twelve front 3.5-inch drive bays

DELL

DELL PowerEdge R730XD 2U rack server E5-2650 v3 10C 2.3GHz 48GB DDR4 3x 1TB SATA H330

SKU CH-SZ41-9YBVQ

2U rack server with a 10-core Xeon E5-2650 v3 at 2.3 GHz, 48 GB DDR4, three 1 TB SATA drives and an H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610
  • Ten-core Xeon E5-2650 v3 at 2.3 GHz for 20 threads
  • 48 GB DDR4 in 24 DIMM slots for large workloads
  • Three 1 TB 7.2K SATA drives with hot-plug trays
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750 W redundant supplies with hot-swap power

Dense storage in 2U

The Dell PowerEdge R730XD packs twelve 3.5-inch hot-plug bays into a 2U rack chassis. A single Xeon E5-2650 v3 delivers ten cores at 2.3 GHz with twenty threads. Forty-eight gigabytes of DDR4 populate the twenty-four DIMM slots, reaching the installed maximum of 48 GB.

Build integration

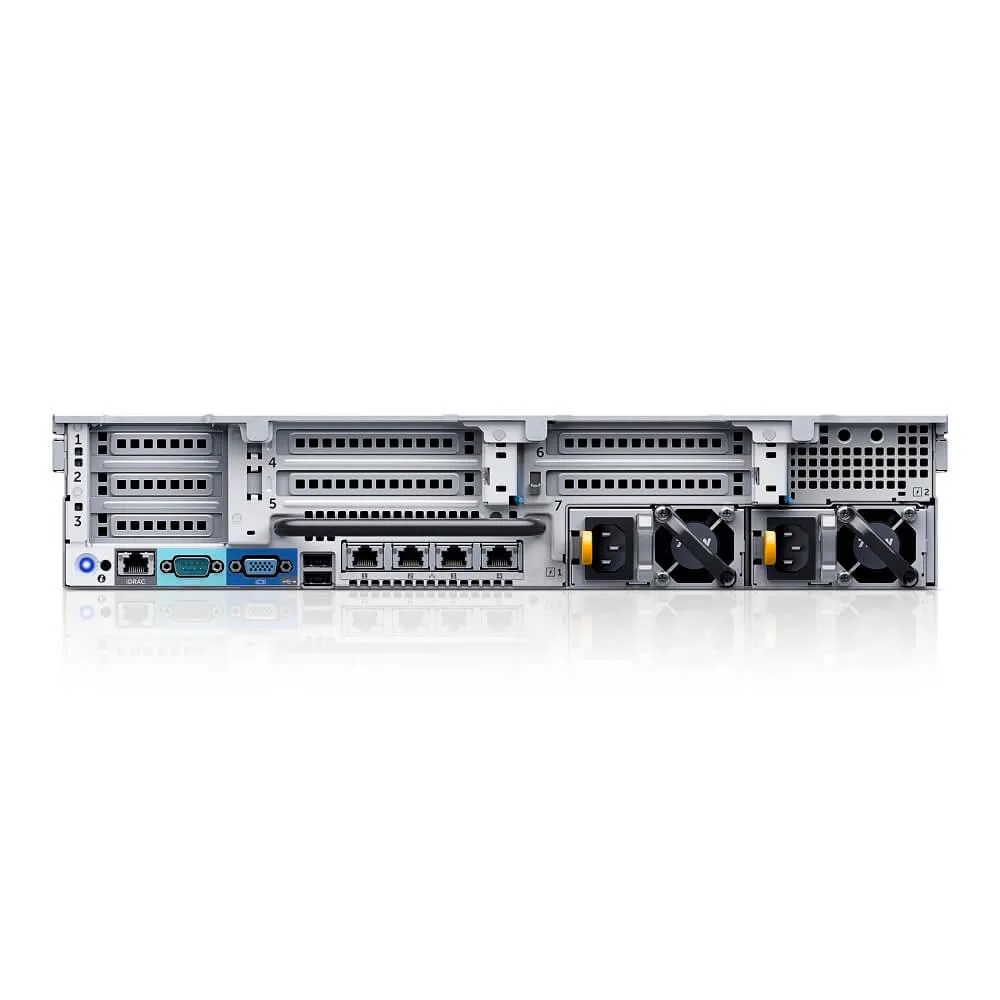

Three 1 TB 7.2 K SATA drives sit behind the H330 RAID controller supporting RAID 0, 1, 5, 10, 50 and 60. Two 750 W redundant power supplies share the load. Four 1 GbE ports come from the daughter card while up to six PCIe 3.0 slots plus a dedicated RAID slot remain open for expansion.

Included accessories

The H330 controller enables hardware RAID without consuming a PCIe slot. A DVD-ROM drive handles legacy media installation. iDRAC8 Express provides out-of-band management with Lifecycle Controller for firmware updates and hardware inventory.

Highlights

  • Ten-core Xeon E5-2650 v3 at 2.3 GHz for 20 threads
  • 48 GB DDR4 in 24 DIMM slots for large workloads
  • Three 1 TB 7.2K SATA drives with hot-plug trays
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750 W redundant supplies with hot-swap power

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size48GB
Memory TypeDDR4
Max Memory Capacity48GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What memory ceiling will I hit first when all 24 DIMM slots are populated?

The system board supports 24 DDR4 DIMM slots, 12 per processor, with a maximum capacity of 1536 GB total when both CPU sockets are filled.

How loud and hot does the server get when the dual 750 W power supplies and ten-core 2.3 GHz Xeon run continuously?

Dual redundant 750 W supplies share the load, and the 2U chassis uses multiple managed fans; acoustic and thermal output rise with CPU utilisation and drive count.

Which rack-mount hardware must I already have to install this 2U unit?

The server requires a standard four-post rack and a compatible sliding rail kit; the chassis measures 26.8 in deep by 17.44 in wide and weighs 60 lb.
