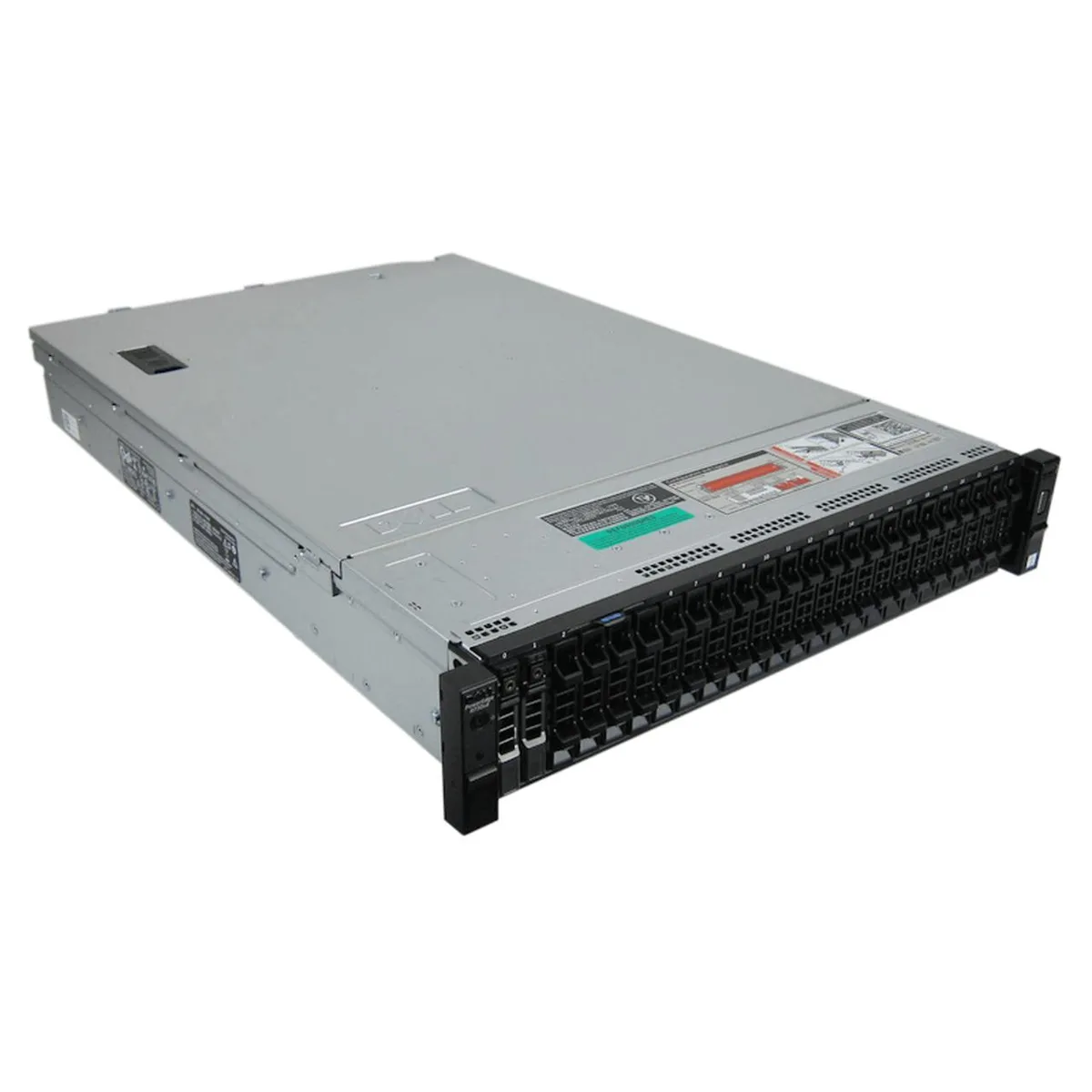

Silver 2U rack server with front bezel and twenty-four 2.5-inch drive bays

DELL

DELL PowerEdge R730xd 2U rack server 2x Xeon E5-2699 v4 2.2GHz 22-core 64GB DDR4 24x 2.4TB SAS H730

SKU CH-620V-TSGA1

2U rack server with dual 22-core Xeon CPUs, 64GB DDR4, PERC H730 controller and 24× 2.4TB SAS drives for dense storage workloads

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 64GB

HDD 24 x 2.4TB 10K SAS

  • 44 CPU cores handle parallel workloads with 2x 22-core Xeon processors
  • 64 GB DDR4 ECC memory supports virtualization and database tasks
  • PERC H730 controller enables RAID 0, 1, 5, 6, 10, 50, 60 configurations
  • 24 hot-swap 2.4 TB SAS drives deliver high-capacity local storage
  • Dual 750 W platinum power supplies with iDRAC8 Enterprise remote management

Dense 2U rack server for data-intensive workloads

The Dell PowerEdge R730xd packs two Xeon E5-2699 v4 processors, each with 22 cores at 2.2 GHz, into a 2U chassis. Sixty-four gigabytes of DDR4 ECC memory and twenty-four 2.4 TB SAS drives deliver high-capacity storage and compute density for databases, virtual desktop infrastructure and data-warehouse nodes.

Suited for scale-out storage

This configuration targets teams that need maximum internal drive bays and dual-socket throughput in a standard rack footprint. Buyers who require GPU acceleration, single-thread frequency above 3.6 GHz or a different drive interface should evaluate other platforms.

Twenty-four 2.5-inch SAS bays with PERC H730 RAID

The front panel holds 24 hot-swap 2.5-inch bays wired to a PERC H730 1 GB controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. This bay count and controller combination determines whether the server matches your storage topology.

Highlights

  • 44 CPU cores handle parallel workloads with 2x 22-core Xeon processors
  • 64 GB DDR4 ECC memory supports virtualization and database tasks
  • PERC H730 controller enables RAID 0, 1, 5, 6, 10, 50, 60 configurations
  • 24 hot-swap 2.4 TB SAS drives deliver high-capacity local storage
  • Dual 750 W platinum power supplies with iDRAC8 Enterprise remote management

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores22-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 24 2.5-inch SAS drives and what step is often missed?

Slide each drive into the front bays until the latch clicks; the step often missed is creating the virtual disks in the PERC H730 BIOS before the OS sees any volume.

Which components will need replacement first during long-term operation?

The 24 2.4 TB 10 K SAS drives and the two 750 W power supplies are the primary field-replaceable units that wear out before the Xeon CPUs or DDR4 memory.

What thermal or power limit appears first when the dual 22-core Xeons run at 3.6 GHz turbo continuously?

The 750 W platinum power supplies set the ceiling; sustained 3.6 GHz turbo on both 22-core processors can exceed their combined output before the cooling reaches its limit.
