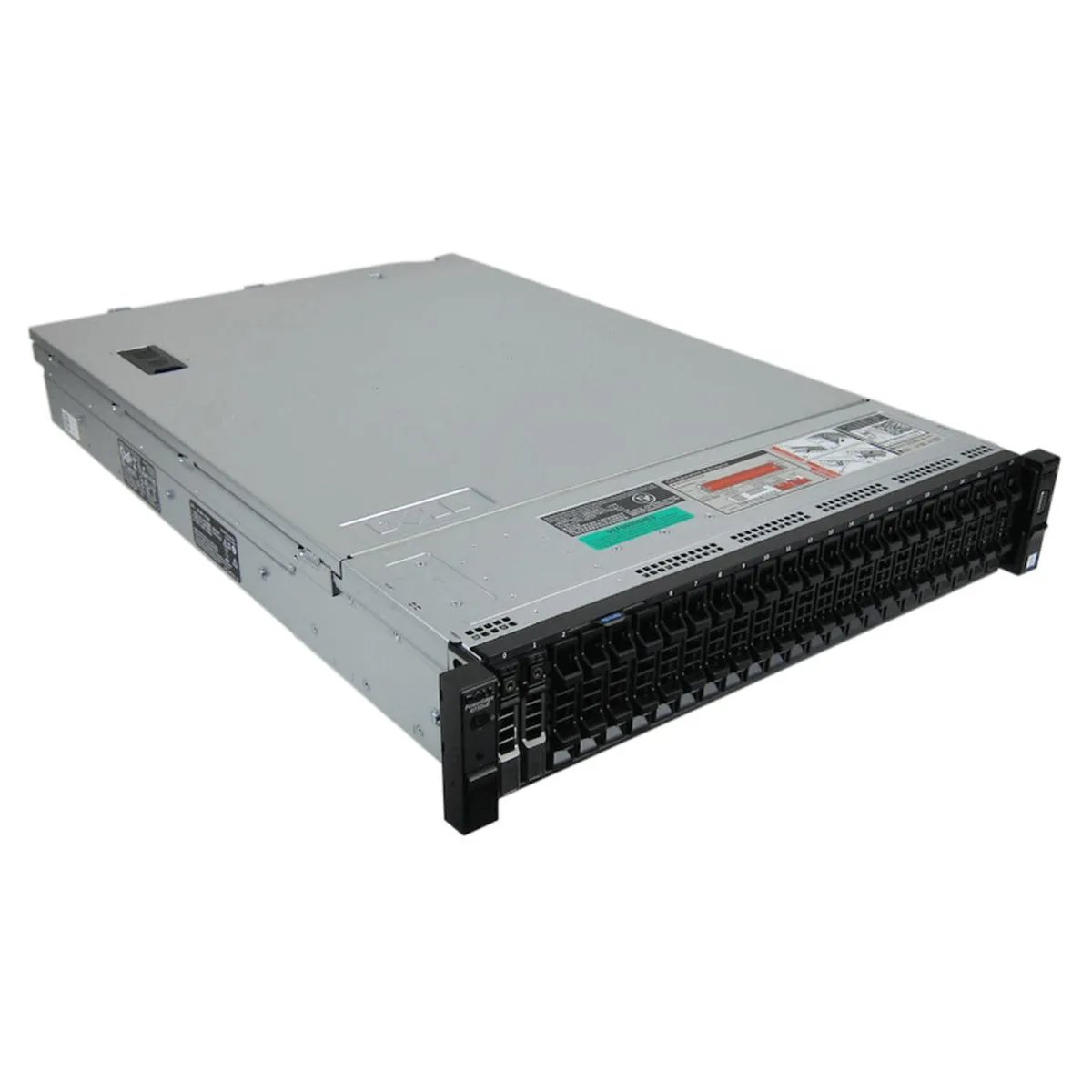

Silver 2U rack server with 24 front drive bays, bezel and rails

DELL

DELL PowerEdge R730xd 2U rack server 2× Xeon E5-2660 v3 2.6GHz 10-core 64GB DDR4 24× 2.4TB SAS H730

SKU CH-9EX8-JW1W1

2U rack server with dual 10-core Xeon E5-2660 v3 processors, 64 GB DDR4 ECC memory and 24 SAS hard drives on a PERC H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.60 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 64GB

HDD 24 x 2.4TB 10K SAS

  • Dual 10-core Xeon 2.6 GHz CPUs handle heavy multi-thread workloads
  • 64 GB DDR4 ECC memory with 24 slots for up to 1.5 TB expansion
  • PERC H730 1 GB controller supports RAID 0/1/5/6/10/50/60
  • 24 × 2.4 TB 10 K SAS drives deliver high-capacity local storage
  • Quad-port X520/I350 card provides 2 × 1 GbE and 2 × 10 Gb SFP+ connectivity

Dense 2U storage server

The Dell PowerEdge R730xd packs twenty-four 2.5-inch SAS drive bays into a two-rack-unit chassis with dual ten-core Xeon processors, sixty-four gigabytes of DDR4 memory and a PERC H730 controller supporting RAID levels zero, one, five, six, ten, fifty and sixty. Dual 750-watt platinum supplies and iDRAC8 Enterprise remote management complete a platform built for database, virtualisation and high-throughput file workloads.

Suits capacity-first deployments

This configuration fits teams that need maximum spindle count and hardware RAID in a compact rack footprint, especially for data-warehouse nodes, VDI storage tiers or backup targets. Buyers who need more than twenty-four drive bays or who require solid-state media should look elsewhere.

Twenty-four 2.4 TB SAS drives decide capacity

The array delivers fifty-seven point six terabytes of raw ten-kay SAS storage behind a single 12 Gb/s controller, setting the total space and I/O ceiling for the workloads above.

Highlights

  • Dual 10-core Xeon 2.6 GHz CPUs handle heavy multi-thread workloads
  • 64 GB DDR4 ECC memory with 24 slots for up to 1.5 TB expansion
  • PERC H730 1 GB controller supports RAID 0/1/5/6/10/50/60
  • 24 × 2.4 TB 10 K SAS drives deliver high-capacity local storage
  • Quad-port X520/I350 card provides 2 × 1 GbE and 2 × 10 Gb SFP+ connectivity

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.60 GHz
CPU SocketLGA 2011-3
Number of CPU Cores10-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What throughput does the 12Gb/s SAS controller cap at for the 2.4TB drives?

The PERC H730 controller runs at 12Gb/s SAS, so each 2.4TB drive is limited by that 12Gb/s link in practice.

What rack depth and rail kit does the 2U chassis need?

The server includes Dell Ready Rails and a front bezel; it fits a standard 2U rack opening and the rails mount in typical four-post cabinets.

How are the CPUs and memory installed, and which step is often missed?

Two Xeon E5-2660 v3 processors go into the LGA 2011-3 sockets and 64GB DDR4 fills four slots; the step often missed is enabling the RAID battery in the H730 BIOS before creating arrays.
