DELL G6GGH Power Distribution Board for PowerEdge R520
Distributes power to a Dell PowerEdge R520 server via 24-pin, 12-pin and 8-pin ATX connectors
- Genuine Dell replacement keeps your R520 running reliably
- 24-pin ATX connector delivers mainboard power securely
- 12-pin ATX connector supports auxiliary board circuits
- 8-pin ATX connector feeds dedicated CPU power rails
- New OEM part installs directly with no extra hardware

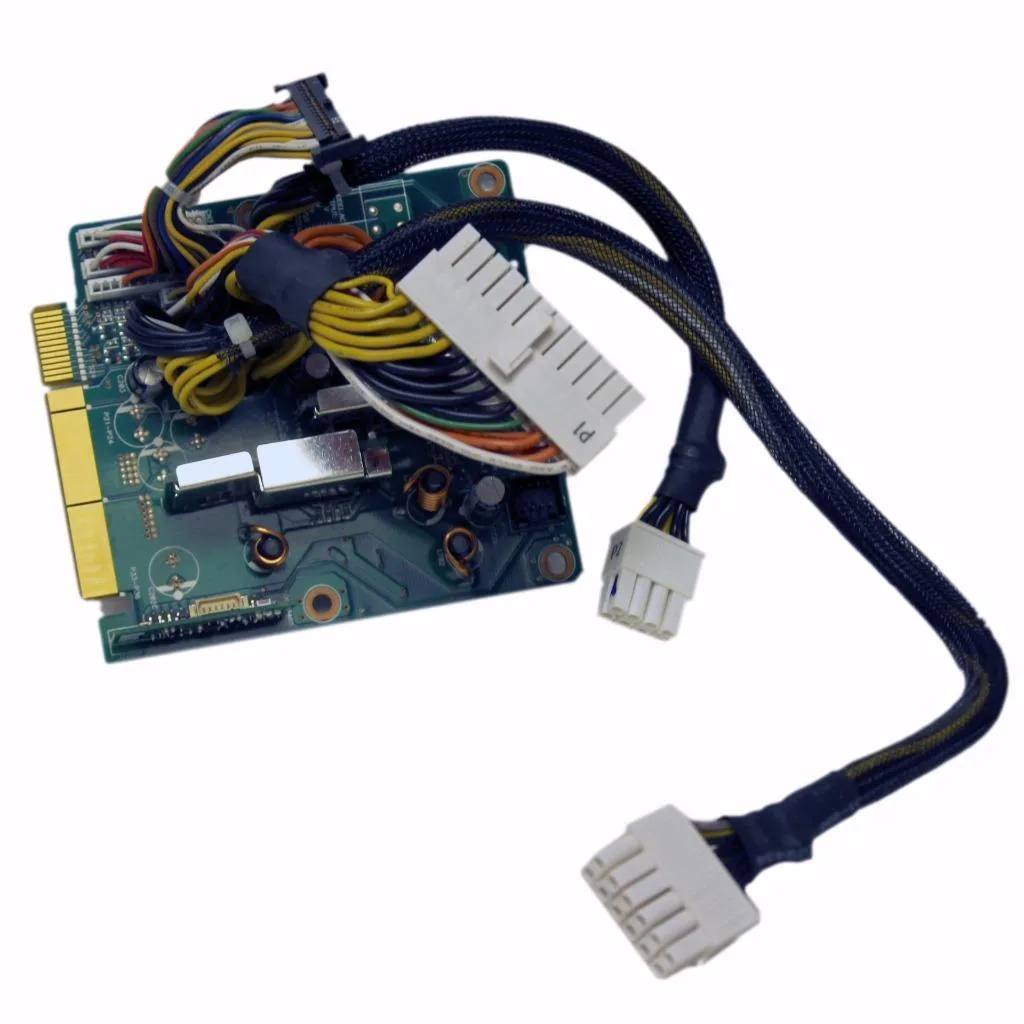

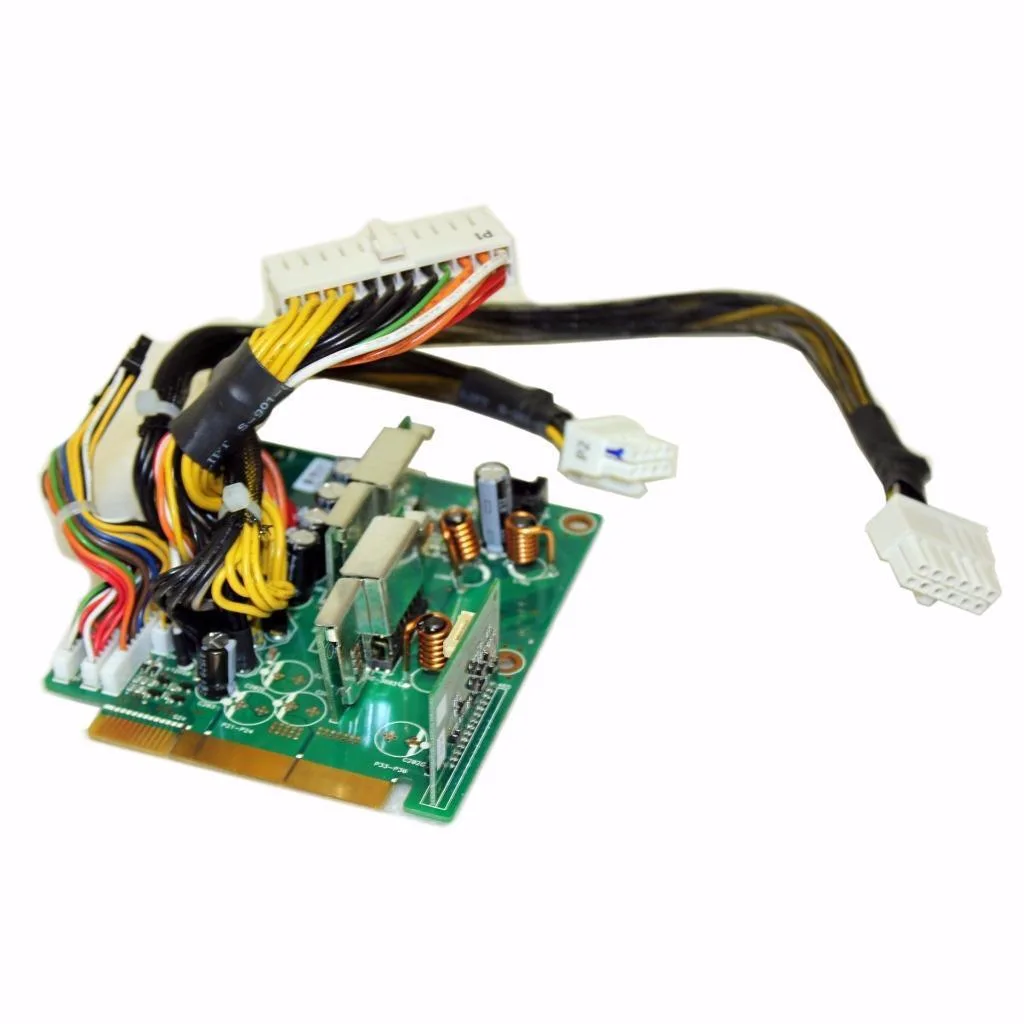

Dell G6GGH Power Distribution Board
The Dell G6GGH is a power distribution board built for the PowerEdge R520 server. It routes power from the supply unit to the mainboard through dedicated connectors. This new OEM part replaces a failed or missing board in that specific chassis.
Who this suits
Technicians repairing a PowerEdge R520 who need the exact OEM power distribution board. It matches the factory connector layout for that model. Builders working on any other server or workstation should look elsewhere because the pin-out and mounting are model-specific.
Connector layout
The board provides one 24-pin ATX mainboard power connector, one 12-pin ATX mainboard power connector and one 8-pin ATX mainboard power connector. Verify that your R520 mainboard requires this exact combination before ordering.
Highlights
- Genuine Dell replacement keeps your R520 running reliably
- 24-pin ATX connector delivers mainboard power securely
- 12-pin ATX connector supports auxiliary board circuits
- 8-pin ATX connector feeds dedicated CPU power rails
- New OEM part installs directly with no extra hardware
Specifications
| Brand | DELL |
|---|---|
| Model | G6GGH |
Questions about this item
How much heat does the G6GGH board add when the R520 runs continuously?
The board distributes power through its 24-pin, 12-pin and 8-pin ATX connectors without active cooling, so it adds negligible heat beyond normal power conversion losses inside the R520 chassis.
Which power supplies must already be installed for the G6GGH to function?
The board requires the standard R520 redundant power supply units that mate with its 24-pin, 12-pin and 8-pin ATX connectors; without those supplies the board cannot deliver power to the system board.
Will the G6GGH work with the original R520 system board I am keeping?
Yes, the G6GGH is the direct replacement power distribution board for the PowerEdge R520 and connects to the original system board through its 24-pin, 12-pin and 8-pin ATX interfaces.
