Dell 12V 3A 36W Power Adapter 5.5x2.5mm
Delivers 12 V DC at up to 3 A (36 W) from 100–240 V AC input with a 5.5×2.5 mm barrel plug compatible with 5.5×2.1 mm devices
- Type9 V
- Changer TypeUSB C Charger
- Specifications36 watts, 12 volts_of_direct_current, 3 amps, 110 volts_of_a
- Connector A5.5×2.5mm Barrel Connector
- Connector B5.5×2.5mm Barrel Connector
- Cable Jakcet TypePlastic
- Powers LED strips and CCTV cameras with stable 12 V DC output
- Accepts worldwide AC 100-240 V input at 50-60 Hz for universal use
- Delivers up to 3 A with short-circuit, over-voltage, over-temperature and over-current protection
- Fits 5.5×2.5 mm barrel jacks and compatible 5.5×2.1 mm plugs with inner-positive polarity
- Compact 0.36 lb unit with flame-retardant PVC cable for safe indoor installation

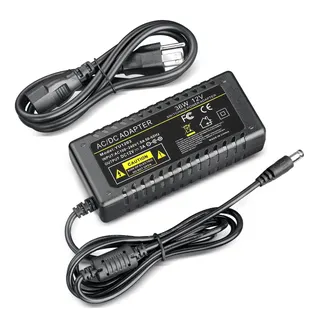

Dell 12V 3A 36W Power Adapter
This Dell adapter converts AC 100V to 240V mains input at 50Hz to 60Hz into a regulated DC 12V output rated at 3A and 36W maximum. It is designed for indoor equipment such as LED strip modules, CCTV cameras, wireless routers and similar 12V DC devices that draw up to 3A.
Barrel connector limits

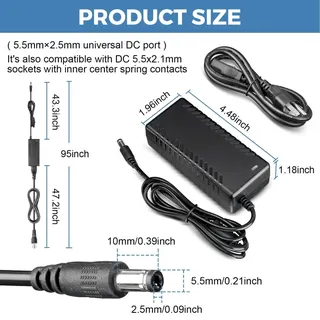

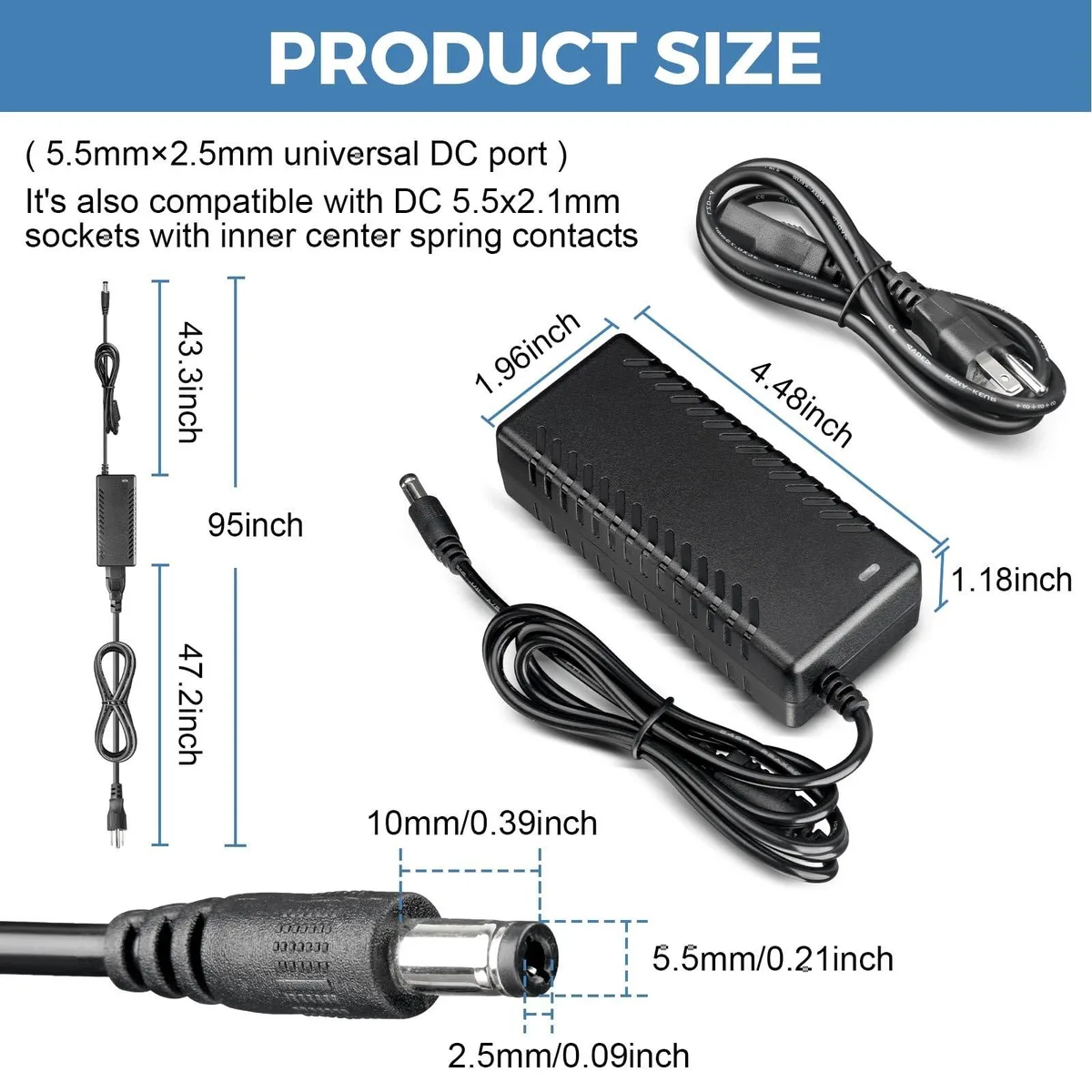

The output uses a 5.5mm by 2.5mm centre-positive barrel plug that also accepts 5.5mm by 2.1mm jacks. The unit will only deliver up to 3A; if the load attempts to draw more, the adapter limits current to 3A and sustained overload will damage the supply. It is not a battery charger and must not be used with battery-powered devices.
36W maximum output
The single specification that determines suitability is the 36W maximum continuous output at 12V DC. Buyers whose equipment requires more than 36W or a voltage other than 12V DC cannot use this adapter.
Highlights
- Powers LED strips and CCTV cameras with stable 12 V DC output
- Accepts worldwide AC 100-240 V input at 50-60 Hz for universal use
- Delivers up to 3 A with short-circuit, over-voltage, over-temperature and over-current protection
- Fits 5.5×2.5 mm barrel jacks and compatible 5.5×2.1 mm plugs with inner-positive polarity
- Compact 0.36 lb unit with flame-retardant PVC cable for safe indoor installation
Specifications
| Brand | Dell |
|---|---|
| Series | 12V 3A 36W |
| Model | 12V 3A 36W |
| Part Number | P-Y001 |
| Type | 9 V |
| Changer Type | USB C Charger |
| Specifications | 36 watts, 12 volts_of_direct_current, 3 amps, 110 volts_of_alternating_current, 5.5×2.5mm Barrel Connector, 50Hz to 60Hz, type_a_2pin_na, LED Strip Light CCTV Cameras, 12V 3A 36W |
| Connector A | 5.5×2.5mm Barrel Connector |
| Connector B | 5.5×2.5mm Barrel Connector |
| Cable Jakcet Type | Plastic |
| Connector Style | Male |
| Features | LED Strip Light CCTV Cameras, 5.5×2.5mm Barrel Connector, Corded Electric, DC, 36 watts |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
| Weight | 0.36 pounds |
| Package Quantity | 1 |
| Package Contents | 1 |
| Disclaimer | not_applicable |
Questions about this item
Is the 36W Dell adapter the right choice for a device that draws less than 3A?
Yes, the 36W unit delivers 12V at up to 3A and will safely supply any 12V load drawing 1A, 2A or anything below 3A.
Will the adapter maintain 12V if my device tries to pull more than 3A?
No, the output is capped at 3A maximum; if the load demands more, the adapter will only supply 3A and may be damaged if overloaded.
Does the 5.5×2.5mm barrel plug fit a 5.5×2.1mm socket?
Yes, the 5.5mm outer diameter with 2.5mm centre pin is compatible with 5.5×2.1mm plugs, polarity inner positive, outer negative.
