Black rectangular aluminium power adapter with epoxy potting and IP68 rating

Dell 12V/24V-5V 10A Power Adapter 100W IP68

SKU CH-66QY-RYWCX

Converts 12 V or 24 V DC input to a stable 5 V 20 A output at up to 100 W with 95 % efficiency in an IP68-rated aluminium housing

  • Type9 V
  • Changer TypeUSB C Charger
  • ColorBlack
  • Specifications3.2 L x 8.1 W x 10.3 H centimeters, 12V/24V-5V 10A, EPBOWPT,
  • FeaturesDC
  • Dimensions14.33in W x 12.83in H x 9.06in D
  • Converts 12 V or 24 V input to stable 5 V 20 A output

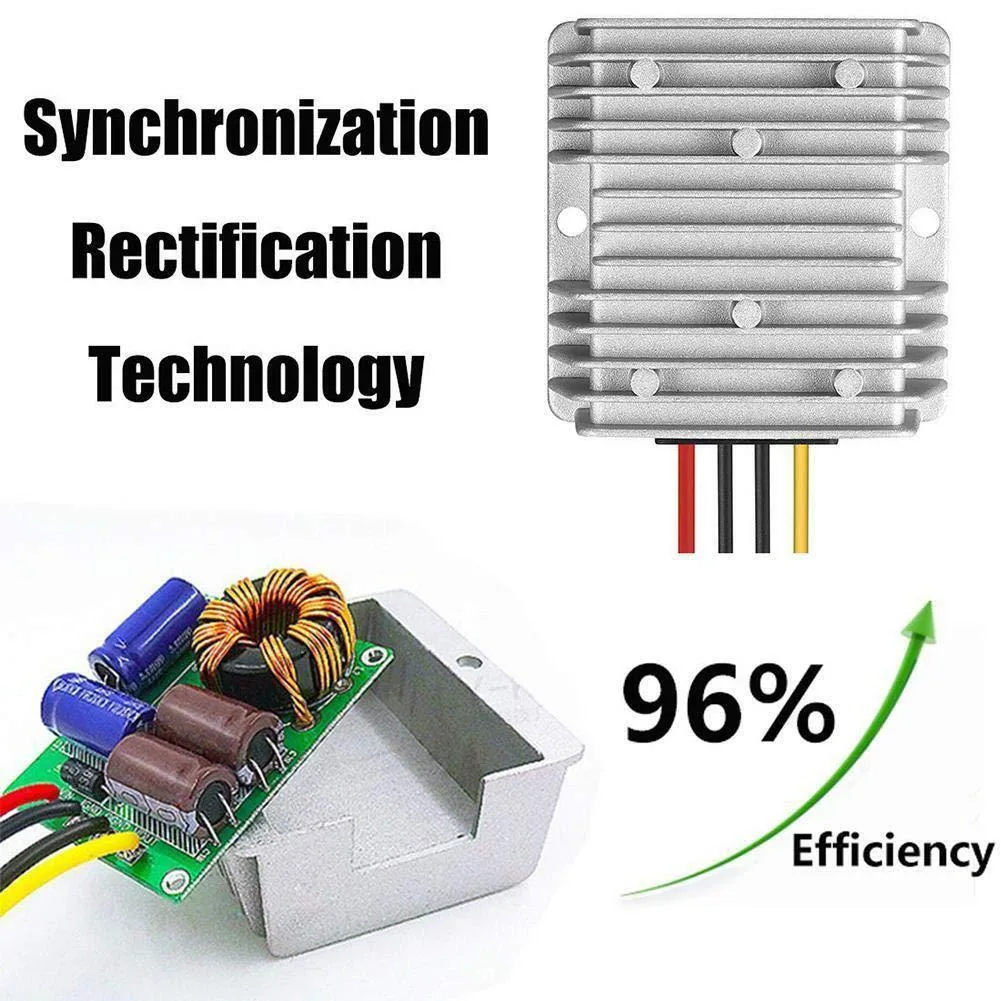

  • 95 % synchronous rectification efficiency keeps heat low
  • Smart chip provides over-current, over-load, short-circuit and over-heat protection
  • IP68 aluminium housing with epoxy potting resists water, dust and shock
  • Operates reliably from -40 °C to 80 °C

12V/24V to 5V Step-Down Converter

This Dell power adapter converts a nominal 12V or 24V DC input into a regulated 5V DC output rated at 20A and 100W. It is built for operators of golf carts, club cars and similar 12V/24V vehicle electrical systems who need reliable 5V power for accessories. The non-isolated buck module delivers up to 95% efficiency with a 50mV ripple specification.

IP68 Aluminium Housing with Epoxy Potting

The compact aluminium shell measures 3.2 x 8.1 x 10.3 centimeters and weighs 0.26 kilograms. Epoxy potting provides IP68 waterproofing, dust ingress protection and shock resistance while aiding heat dissipation across a -40°C to 80°C operating range. A built-in smart chip adds over-current, over-load, low-load, short-circuit and over-heat protection without requiring external components.

20A Continuous Output at 5V

The converter supplies a steady 5V ±2% at up to 20A, handling peak loads within the 100W envelope. Input current is limited to 10A maximum with a no-load draw of 10mA or less. Start-up delay is two seconds. The unit has no internal battery and cannot boost voltage; it only steps down from a suitable 12V or 24V DC source.

Highlights

  • Converts 12 V or 24 V input to stable 5 V 20 A output
  • 95 % synchronous rectification efficiency keeps heat low
  • Smart chip provides over-current, over-load, short-circuit and over-heat protection
  • IP68 aluminium housing with epoxy potting resists water, dust and shock
  • Operates reliably from -40 °C to 80 °C

Specifications

BrandDell
Series12V/24V-5V 10A
Model12V/24V-5V 10A
Part Number12V/24V-5V 10A
Type9 V
Changer TypeUSB C Charger
ColorBlack
Specifications3.2 L x 8.1 W x 10.3 H centimeters, 12V/24V-5V 10A, EPBOWPT, 0.26 kilograms, DC, 1
FeaturesDC
Dimensions14.33in W x 12.83in H x 9.06in D
Weight0.26 kilograms
Package Quantity1

Questions about this item

What is the maximum input current the Dell 12V/24V-5V 10A adapter can handle continuously?

The adapter accepts a maximum input current of 10A from a 12V or 24V DC source.

How does the IP68-rated aluminium housing manage heat during all-day operation?

The compact aluminium shell uses epoxy potting for waterproofing and acts as a heatsink, while synchronous rectification at 95% efficiency minimises waste heat.

Which DC power source must I already have to use this 5V 20A converter?

You need a 12V or 24V nominal DC supply capable of delivering up to 10A.
