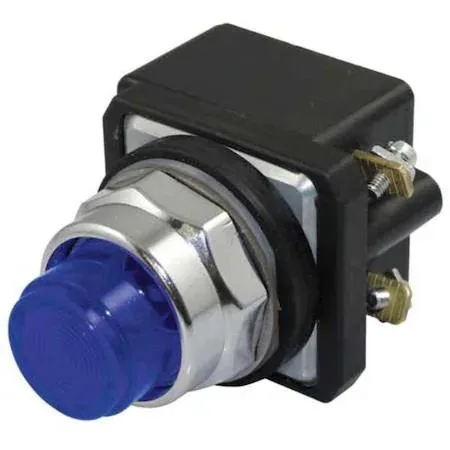

Round chrome pilot light with blue LED lens 30mm

Dayton

Dayton 30G384 Pilot Light LED 24V 30mm Chrome Blue

SKU CH-HZ82-3YG4A

A 24 V AC/DC LED pilot light with a 30 mm chrome bezel, blue Fresnel lens and IP65-rated zinc die-cast body for NEMA 13 and 4 panels

  • 24 V AC/DC operation suits low-voltage control circuits
  • Blue LED lamp provides clear status indication
  • 30 mm round chrome body fits standard panel cut-outs
  • IP65 and NEMA 13, 4 ratings resist dust and water jets
  • cULus and CE markings confirm compliance with safety standards

Dayton 30G384 Pilot Light Identity

The Dayton 30G384 is a 30 mm round pilot light with a blue LED lamp module that operates on 24V AC or DC. It is designed for machinery panels and control stations that require a clear visual status indicator in industrial environments.

Thermal Noise and Power Profile

The LED light module runs at the rated 24V supply with minimal heat output and no audible noise during normal operation. Its full-voltage design draws only the current needed for the blue LED, keeping panel power consumption low and thermal load negligible.

Included Components and Standards

The unit ships with the lens and LED lamp already assembled in a zinc die-cast body rated NEMA 13, 4 and IP65 for dust and water ingress protection. Pressure-plate terminals simplify wiring, and the assembly carries CE and cULus markings for compliance in regulated installations.

Highlights

  • 24 V AC/DC operation suits low-voltage control circuits
  • Blue LED lamp provides clear status indication
  • 30 mm round chrome body fits standard panel cut-outs
  • IP65 and NEMA 13, 4 ratings resist dust and water jets
  • cULus and CE markings confirm compliance with safety standards

Specifications

BrandDAYTON

Questions about this item

How do I wire the 24V AC/DC pilot light to the pressure-plate terminals without loosening the connection?

Strip each wire to the length recommended for the pressure-plate terminals, insert fully, and tighten the screws evenly so the plate clamps the conductor uniformly; a loose screw is the step most often missed and causes intermittent operation.

Which component will need replacement first on the 30mm chrome pilot light?

The LED lamp module is not replaceable; when light output degrades the entire pilot light assembly must be swapped out.

At what point does the IP65 and NEMA 13, 4 rated housing reach its limit during continuous 24V operation?

Sustained heat buildup inside the sealed zinc die-cast body is the first limiting factor; prolonged high ambient temperature combined with continuous duty can accelerate LED lumen depreciation beyond the housing's dissipation capacity.
