Dayton
Dayton 2CNL2 Linear Ball Bushing Bearing Open Bore 1 in

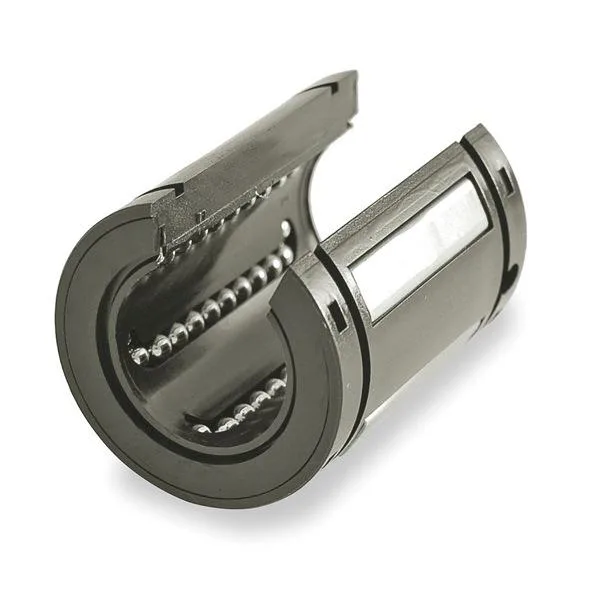

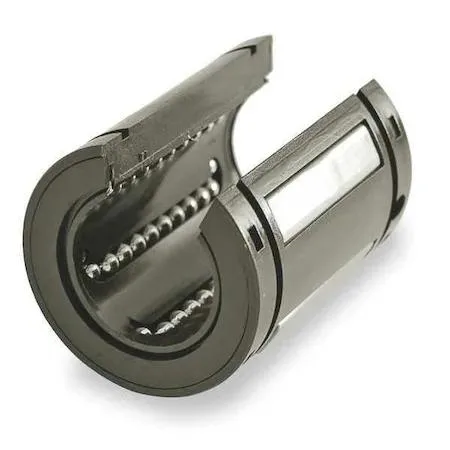

Self-aligning linear ball bearing with a 1-inch bore, 850 lbf dynamic load capacity and stainless-steel construction rated to 176 °F
- Self-aligning design compensates for shaft misalignment
- Open bore construction simplifies installation and maintenance
- 850 lbf dynamic load capacity handles demanding linear motion
- Stainless steel and polymer cage resists corrosion and wear
- Operates reliably from -4 to 176 degrees F
Linear Bearing for 1-Inch Shafts
This open-type linear ball bushing fits a one-inch shaft and provides self-aligning motion for inch-series machinery. The stainless-steel and polymer-cage construction suits general-purpose automation and material-handling equipment.
Dynamic Capacity 850 lbf with 5000 in/min Speed
Rated for 850 lbf dynamic load and 1050 lbf static load, the bearing operates steadily at 5000 inches per minute between -4 and 176 degrees Fahrenheit. The .563-inch slot and .001-inch bore tolerance maintain alignment until loads or speeds exceed these limits.
Replaces Worn Bushings on Inch-Series Linear Guides
Drop-in replacement for existing one-inch open bearings on the same mounting pattern when precision or smoothness degrades. The upgrade is worthwhile when current units show play, binding or corrosion that the stainless construction and self-aligning design can eliminate.
Highlights
- Self-aligning design compensates for shaft misalignment
- Open bore construction simplifies installation and maintenance
- 850 lbf dynamic load capacity handles demanding linear motion
- Stainless steel and polymer cage resists corrosion and wear
- Operates reliably from -4 to 176 degrees F
Specifications
No published specifications for this item yet.
Questions about this item
Will this 1 in bore bearing fit on the 1 in shaft already on my machine?
The inside diameter is 1 in with a tolerance of +/- .001 in, so it matches a standard 1 in shaft within that range.
How can I confirm the bearing is running correctly once installed?
It should move smoothly at speeds up to 5000 in/min and stay within the -4 to 176 °F operating temperature window.
Does the open bearing include seals or do I need to buy them separately?
The bearing is an open type with a .563 in slot width; seals are not included and must be sourced separately.
