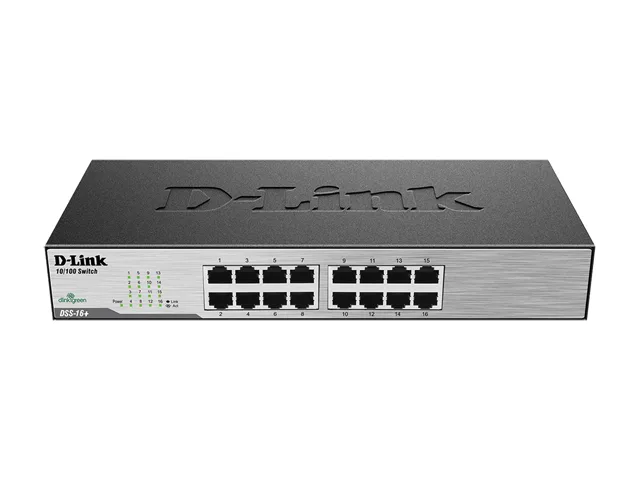

Silver metal box with 16 RJ45 ports on the front

D-Link

D-Link DSS-16+ 16-port 10/100 network switch

SKU CH-J0MY-15PJC MPN DSS-16+

A 16-port 10/100 Mbps unmanaged switch with fanless metal housing for desktop or rack mounting

  • FormatDesktop
  • StandardsIEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Eth
  • Network Management TypeSmart
  • Uplink PortsNone
  • Primary Ports16 x RJ45
  • Primary Port Speed10/100Mbps

Class 16-Port Fast Ethernet

Primary Port 16 Port

  • 16 ports connect multiple devices at 10/100 Mbps each
  • Fanless metal housing runs silently and fits desktop or rack
  • IEEE 802.3az EEE cuts power when traffic is idle
  • 8K MAC table and store-and-forward switching keep data moving
  • QoS prioritises important traffic for smoother performance

16-port Fast Ethernet switch

The D-Link DSS-16+ is a 16-port unmanaged switch built for small offices and home networks needing wired connectivity. It delivers sixteen RJ45 ports operating at 10/100 Mbps with a fanless metal housing for silent operation. The unit supports desktop or rackmount placement to suit different environments. It requires no configuration for immediate deployment.

10/100 Mbps port speed

Every port negotiates at 10 or 100 Mbps using IEEE 802.3 and 802.3u standards with auto-negotiation and flow control. The switch forwards frames via store-and-forward switching with an 8K MAC address table and 160 KB buffer memory. Full-duplex connections can reach 200 Mbps per port. There are no uplink ports, Gigabit interfaces or VLAN support.

SOHO workgroup capacity

The sixteen ports comfortably connect workstations, printers and servers in a small office workgroup. QoS prioritisation helps maintain voice or video traffic quality during busy periods. Energy Efficient Ethernet reduces power draw during idle periods. The switch runs out of headroom when aggregate throughput exceeds the 100 Mbps per-port limit or when managed features like VLANs, SNMP or link aggregation are required.

Highlights

  • 16 ports connect multiple devices at 10/100 Mbps each
  • Fanless metal housing runs silently and fits desktop or rack
  • IEEE 802.3az EEE cuts power when traffic is idle
  • 8K MAC table and store-and-forward switching keep data moving
  • QoS prioritises important traffic for smoother performance

Specifications

BrandD-Link
ModelDSS-16+
FormatDesktop
StandardsIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3 Nway Auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p Qos Prioritization
Network Management TypeSmart
Uplink PortsNone
Primary Ports16 x RJ45
Primary Port Speed10/100Mbps
MAC Address Table8K
Switching MethodStore and Forward
VLAN SupportNo
Jumbo FramesNo
Buffer Memory160KB
ProtocolsTCP/IP
PoENo
StackableNo
SNMPNo
QoSYes
LACPNo
LayerLayer 2 Only
Port MirroringNo
Module SupportNo
CablingRJ-45: 10BASE-T, 100BASE-TX Universal UTP Cable Recognition for Straight-through or Crossover cables
LEDsPer unit: Power
Per port: Link/Activity
Duplex/Collision Speed
PowerPower Consumption: 6 Watts Max
Internal Power Supply: 100 – 240 VAC, 50/60Hz
Dimensions11.0" x 1.7" x 7.1"
Weight6.17 lbs.
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
FeaturesSwitch Fabric: 3.2Gbps
Add More Computers or Other Ethernet-based Devices to the Network
No Software or Configuration Required
Delivers up to 200Mbps Throughput per Port in Full-Duplex Mode
Package ContentsDSS-16+
Manual
Power Cord
Rack mount kit
Shipping weight1.57 kg
Package size330 × 180 × 112 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does 200 Mbps per port in full-duplex mean for daily use?

Each port can send and receive at 100 Mbps simultaneously, so file copies between two PCs on the switch can reach 200 Mbps combined throughput.

How does IEEE 802.3x flow control affect traffic on this switch?

The switch honours pause frames from connected devices, preventing packet loss when a receiver’s buffer fills up.

What mounting options does the metal housing provide?

The fanless metal case includes brackets for rack mounting and rubber feet for desktop use.
