Silver metal rackmount network switch with 24 RJ45 ports and status LEDs

D-Link

D-Link DGS-1024D 24-port Gigabit unmanaged network switch

SKU CH-05V0-7RKZK MPN DGS-1024D

A 24-port Gigabit unmanaged switch with 8K MAC table, store-and-forward switching and 10,000-byte jumbo frame support

  • FormatRackmount
  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
  • Network Management TypeUnmanaged
  • Uplink PortsNone
  • Primary Ports24 x RJ45
  • Primary Port Speed10/100/1000Mbps

Class 24-Port Gigabit

Primary Port 24 Port

  • 24 Gigabit ports deliver high-speed wired connectivity
  • Unmanaged plug-and-play operation requires no configuration
  • Green Ethernet technology cuts power use by port activity and cable length
  • 0 W standby and 12.5 W maximum draw lowers running costs
  • Rackmount or desktop form factor fits diverse deployments

24-Port Gigabit Switch

The D-Link DGS-1024D is a 24-port unmanaged Gigabit switch designed for small business or office networks. It provides 24 RJ45 ports running at 10/100/1000Mbps for wired connectivity. The unit operates on 100 to 240V AC input with a maximum power draw of 12.5 watts. Its plug-and-play design requires no software configuration.

Best for Simple Expansions

This switch suits users who need to add many wired connections without managing VLANs or uplink ports. It supports jumbo frames up to 10,000 bytes and an 8K MAC address table for efficient traffic handling. Green Ethernet technology reduces power consumption based on link status and cable length. Buyers who need managed features, PoE power delivery, or dedicated uplink ports should look elsewhere.

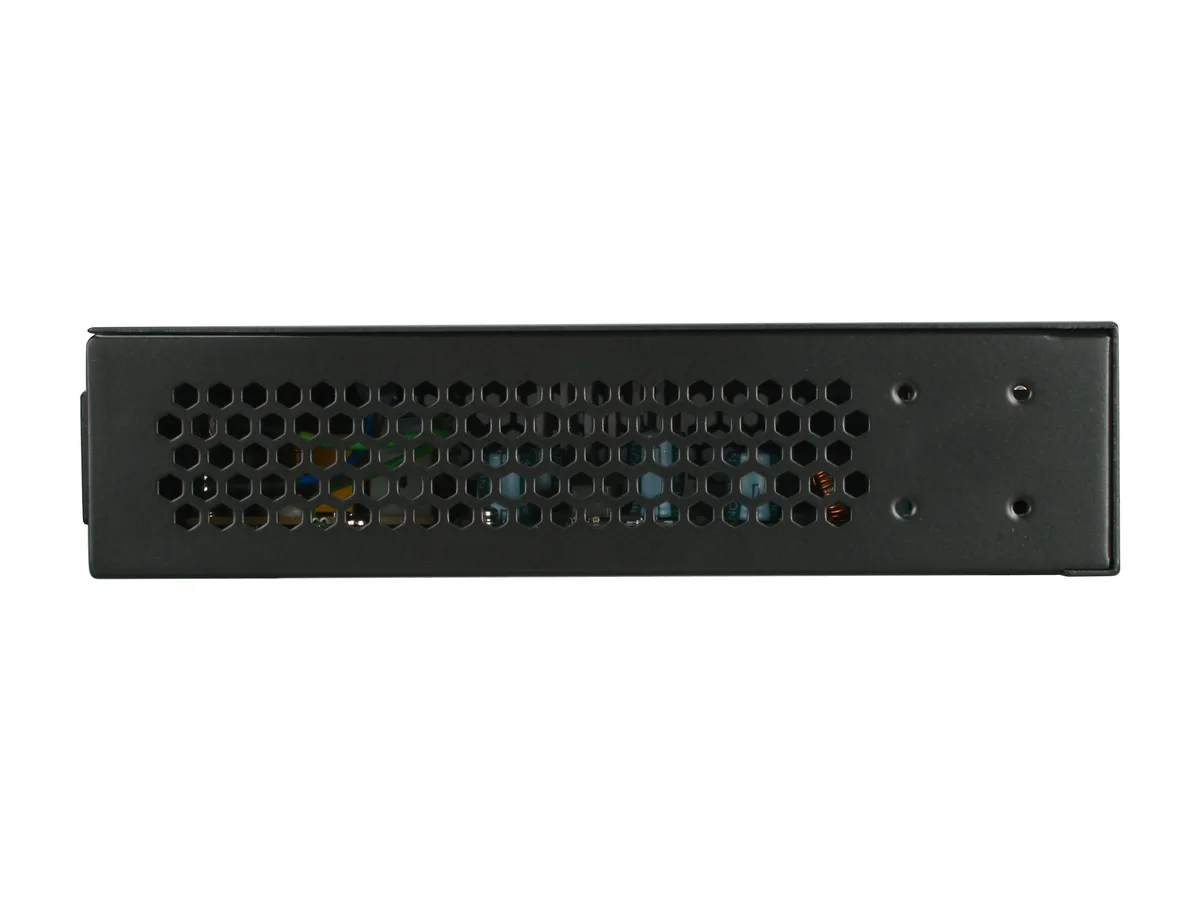

Silent Fanless Operation

The metal chassis uses passive cooling so the switch runs silently in noise-sensitive environments. Dimensions are 1.73 x 11.02 x 7.09 inches and weight is 2.98 lbs for rackmount or desktop placement. Store-and-forward switching with IEEE 802.3x flow control ensures reliable data transfer. The 512KB buffer memory helps absorb traffic bursts during peak loads.

Highlights

  • 24 Gigabit ports deliver high-speed wired connectivity
  • Unmanaged plug-and-play operation requires no configuration
  • Green Ethernet technology cuts power use by port activity and cable length
  • 0 W standby and 12.5 W maximum draw lowers running costs
  • Rackmount or desktop form factor fits diverse deployments

Specifications

BrandD-Link
ModelDGS-1024D
FormatRackmount
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Management TypeUnmanaged
Uplink PortsNone
Primary Ports24 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Switching MethodStore and Forward
VLAN SupportNo
Jumbo Frames10,000 Bytes
Buffer Memory512KB
ProtocolsTCP/IP
PoENo
LEDsPower LED
24 Link / Activity / Speed LEDs (one per port)
PowerPower Inputs: 100 to 240V AC Input
Power Consumption:
Standby: 5.0 watts
Maximum: 12.5 watts
FeaturesGreen Ethernet Technology:
Reduces power consumption & creates less heat
Extended product life
Reduces Operating Costs
Power Savings by Number of Connected Ports and Link Status
Power Savings by Cable Length
Overall Power Savings Per Day
Power-Packed
Easy to use
48Gbps Switching Capacity
Desktop or Rack Mountable Design
Non-blocking Architecture
Dimensions1.73" x 11.02" x 7.09"
Weight2.98 lbs
TemperatureOperating: 32 to 104 degree F (0 to 40 degree C)
Storage: 14 to 158 degree F (-10 to 70 degree C)
HumidityOperating: 5% to 90% RH, non-condensing
Storage: 5% to 95% RH

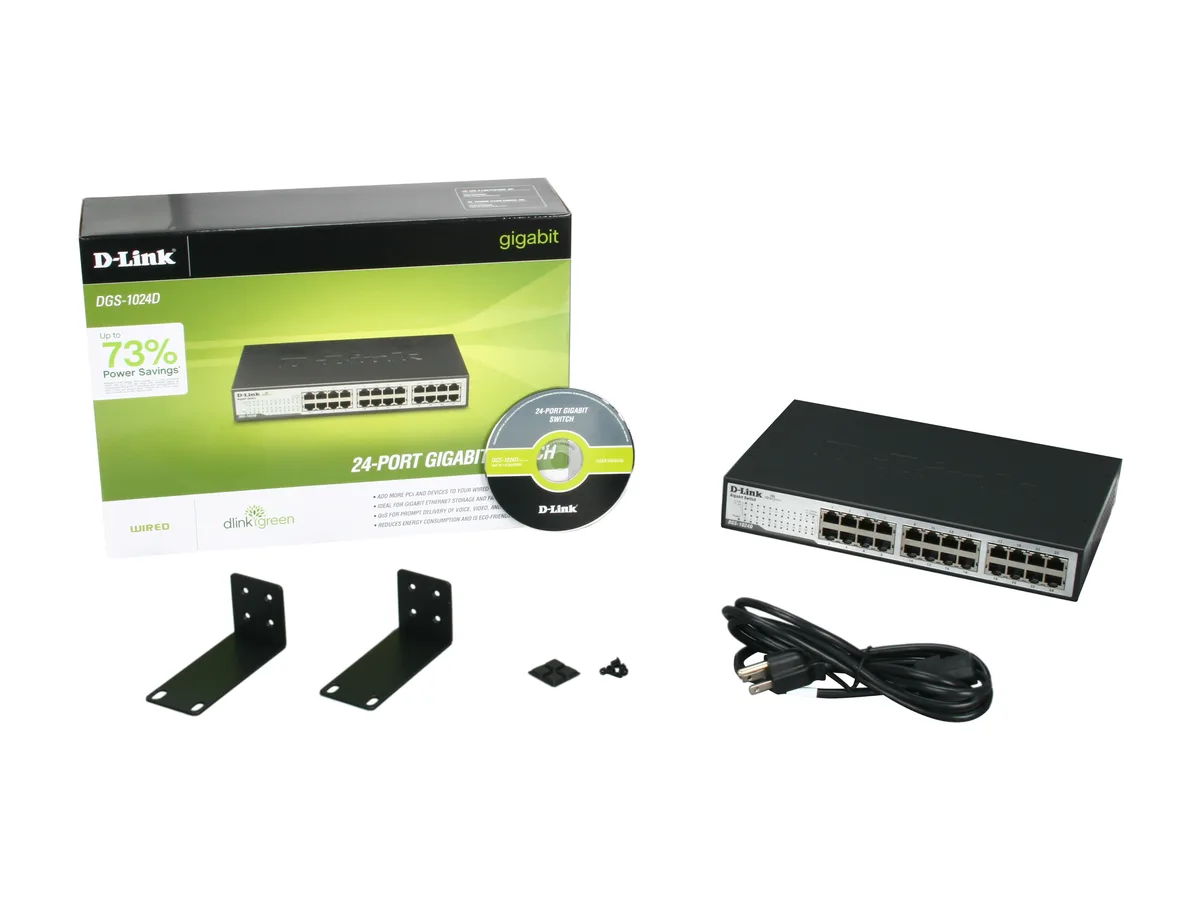

Package ContentsDGS-1024D
User Manual
Power Cord
Rack mount kit
Shipping weight2.34 kg
Package size381 × 264 × 104 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 24-port model or a smaller switch?

Choose the 24-port model when you need to connect up to 24 devices directly; each RJ45 port handles 10, 100 or 1000Mbps so you can mix older and newer gear without extra uplinks.

What does the 1000Mbps per port mean once the switch is in my rack?

Every connected device can send and receive at full Gigabit line rate simultaneously because the non-blocking fabric forwards frames at wire speed across all 24 ports.

Which Ethernet standards does the switch follow and what do they cap in practice?

It complies with IEEE 802.3, 802.3u and 802.3ab, so each port auto-negotiates up to 1000Mbps full-duplex; flow control per 802.3x prevents packet loss during bursts.
